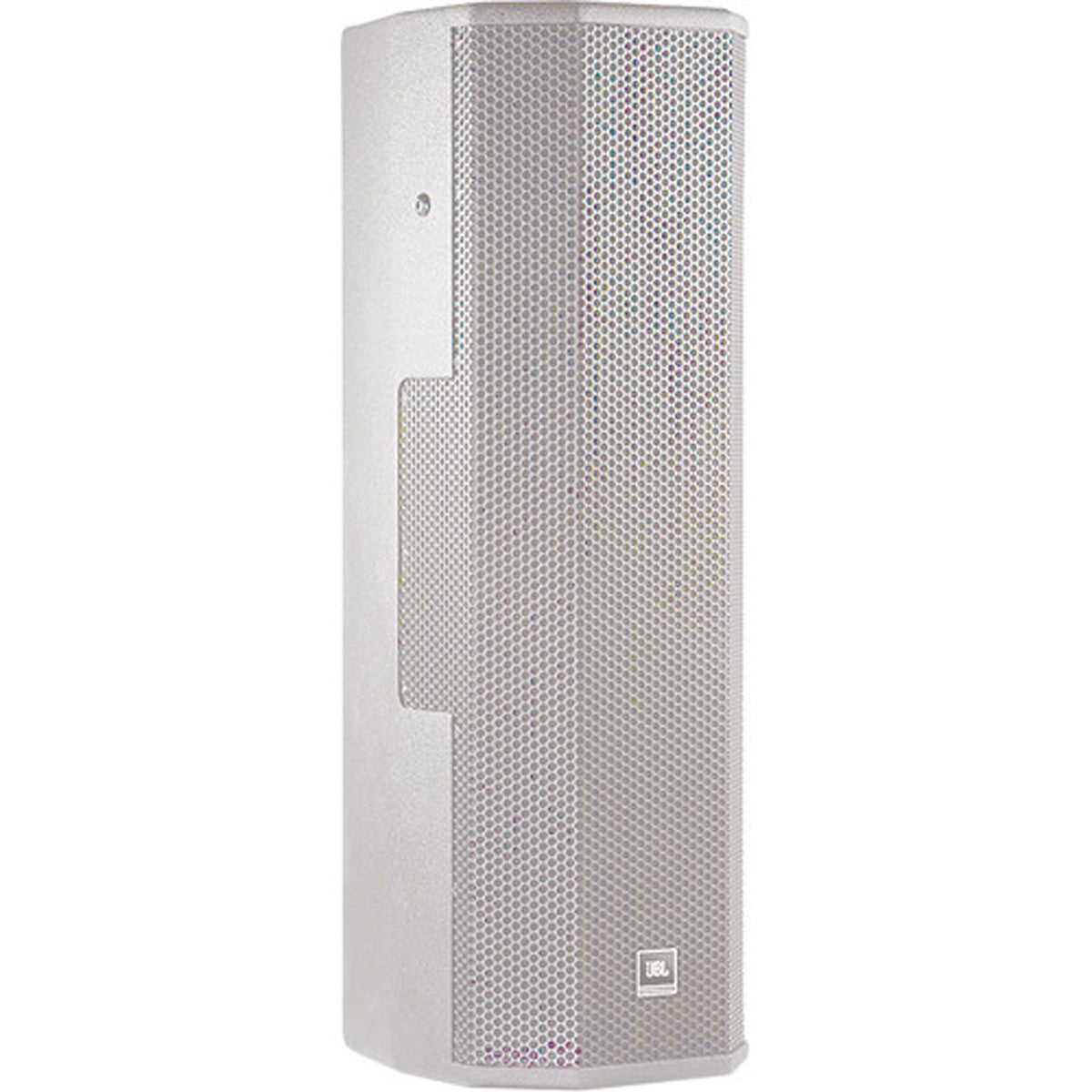

JBL CWT128-WH Dual 8″ 2-Way Loudspeaker System featuring CWT Crossfired Waveguide Technology – White
The JBL CWT128 Dual 8-inch 2-Way Loudspeaker System in white features Crossfired Waveguide Technology, delivering seamless 160° horizontal coverage with high SPL, compact design, and durable all-weather construction for versatile indoor and outdoor applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 18,170.78 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL CWT128 Dual 8″ 2-Way Loudspeaker System White Finish
The JBL CWT128 is a high-performance, full-range 2-way loudspeaker system that incorporates JBL’s Crossfired Waveguide Technology (CWT) to provide wide horizontal coverage of up to 160°, ensuring uniform sound distribution across large areas. Its compact footprint makes it ideal for architecturally sensitive environments, requiring only a fraction of the space of traditional dual-speaker setups while maintaining exceptional audio performance.
The system features dual 205 mm (8 in) low-frequency transducers and dual 25 mm (1 in) exit, 38 mm (1.5 in) diaphragm high-frequency compression drivers, delivering clear, powerful sound with broad bandwidth and high SPL. The Crossfired Waveguide ensures seamless audio coverage, making it suitable for a variety of venues such as transportation facilities, cinemas, sports arenas, and theme parks.
The enclosure is constructed from high-quality 12 mm and 15 mm multi-ply hardwood plywood with a durable White DuraFlex™ finish, providing protection and longevity. Four M10 attachment points on the top and sides, along with four M8 points on the rear, allow for flexible installation using wall brackets or mounting systems. WRC and WRX weather-resistant variants are available for demanding outdoor environments. Origin of country mexico.
Features of CWT128
Extremely wide 160° x 60° coverage
Compact design, perfect for architecturally sensitive spaces
Dual 205 mm (8 in) low-frequency drivers
Dual 25 mm (1 in) exit, 38 mm (1.5 in) high-frequency compression drivers
Crossfired Waveguide for seamless audio distribution
White DuraFlex™ finish; Black (-BK) also available
4 M10 attachment points (top, bottom, sides)
4 M8 rear points for MultiMount® MM-120-BT installation
WRC and WRX weather-resistant versions available
Passive crossover mode
Suitable for indoor and outdoor applications
Specifications of CWT128
| System Format | Extremely Wide Angle Coverage Dual 8″ 2-Way Loudspeaker System |
| Frequency Range (-10 dB) | 71 Hz – 20 kHz |
| Frequency Response (±3 dB) | 96 Hz – 19 kHz |
| Coverage Pattern | 160° x 60° |
| Maximum SPL (1 m) | 129 dB |
| System Nominal Impedance | 8 ohms |
| Long-Term System Power Rating | 450 W (1800 W Peak) |
| System Power Rating | 850 W / 1700 W / 3400 W Continuous / Program / Peak |
| Crossover | 1.5 kHz |
| LF Driver | 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge-wound voice coil |
| HF Driver | 2 x 2408H-1, 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil |
| High-Frequency Waveguide | Crossfired Waveguide |
| System Sensitivity (1 W @ 1 m) | 94 dB SPL |
| Transformer Taps | 70V: 110 W, 55 W, 28 W; 100V: 110 W, 55 W |
| Nominal LF Driver Impedance | 8 ohms |
| Enclosure | 12 mm & 15 mm exterior-grade multi-ply hardwood plywood |
| Suspension Attachment | 4 x M10 (top, bottom, sides), 4 x M8 rear for MultiMount® MM-120-BT |
| Environmental | Mil-Std 810; IPx3 per IEC529 (WRC/WRX versions available for higher protection) |
| Dimensions (W x H x D) | 811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in) |
| Net Weight | 18.6 kg (40.9 lb) |
| Crossover Modes | Passive |
| Origin of Country | Mexico |
