JBL IVX-577136 Intellivox Series H-90 MKII 100 Watts RMS 6 x 4″ ADC Digital Directivity Column Speaker

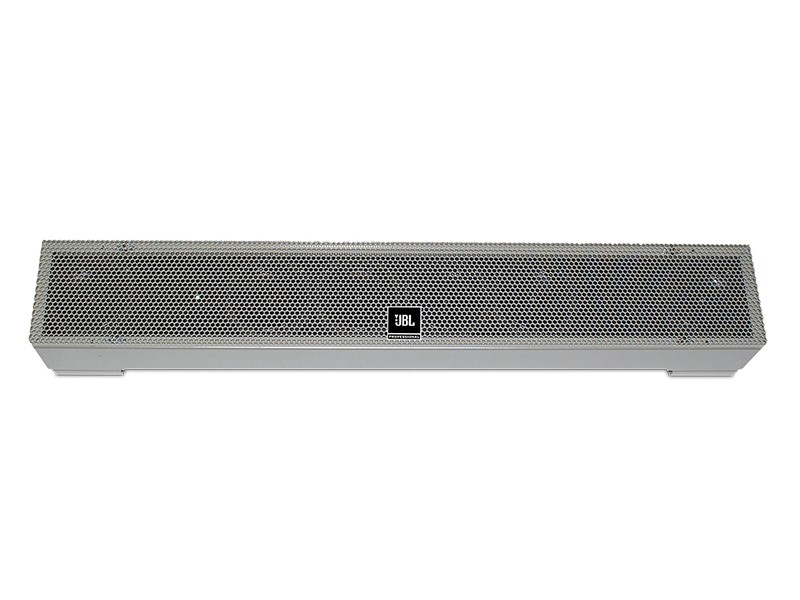

JBL Intellivox ADC-H90 Mark II Horizontal Column Loudspeaker

The JBL Intellivox ADC-H90 Mark II Horizontal Column Loudspeaker is engineered to provide high-quality speech and sound reproduction in environments such as railway station platforms, long high-ceiling corridors, and terminals. Its design minimizes acoustic spill outside the intended listening area, ensuring listening comfort for surrounding spaces, even in open or reverberant environments.

With a fixed vertical dispersion of 130º and a horizontal opening angle of 30º, the loudspeaker allows precise targeting of the acoustic signal toward the listener area. The column can be mounted horizontally and mechanically aimed to achieve the desired throw, covering distances up to 10–15 meters with a focus point at 15 meters. This configuration significantly reduces disturbance in adjacent areas while delivering clear and intelligible sound where it is required.

Equipped with six 4-inch full-range drivers, the Intellivox ADC-H90 Mark II operates efficiently with selectable transformer taps of 100 W, 50 W, and 25 W. Control switches for high-pass filtering and EQ correction provide further optimization for acoustic performance. Pilot tone detection with a front green LED indicator and compatibility with JBL 100 V IndustryAmp series amplifiers enable easy system integration and monitoring.

Constructed from powder-coated steel, the loudspeaker is durable and suitable for outdoor installation (EN 54-24 Type B). Standard colors include grey or white enclosures with black speaker baffles, while optional accessories allow customization for specific installation requirements. The Intellivox ADC-H90 Mark II combines precise acoustic targeting, compliance with life safety standards, and robust design for reliable performance in large, high-ceiling public spaces.

Features of Intellivox ADC-H90 Mark II

• Precise horizontal and vertical coverage

• EN 54-24 compliant for life safety applications

• Designed for platforms and high-ceiling corridors

• Horizontal opening angle 30º

• Vertical coverage 130º (-6 dB)

• Typical throw up to 15 meters

• Six 4-inch full-range drivers

• Transformer taps: 100 W / 50 W / 25 W

• Control switches for HPF and EQ correction

• Pilot tone detection with green LED indicator

• Compatible with JBL 100 V IndustryAmp series

• Powder-coated steel enclosure

• Multiple mounting points for flexible installation

• Outdoor-capable (EN 54-24 Type B)

• Standard colors: grey or white enclosure, black baffle

• Mechanically aimable for optimal horizontal throw

Specifications of Intellivox ADC-H90 Mark II
