JBL IVX-587890 Intellivox Series HP-DS370 16 x 100 Watts RMS 14 x 6.5″ Beam Shaping Self-Powered Column Loudspeaker

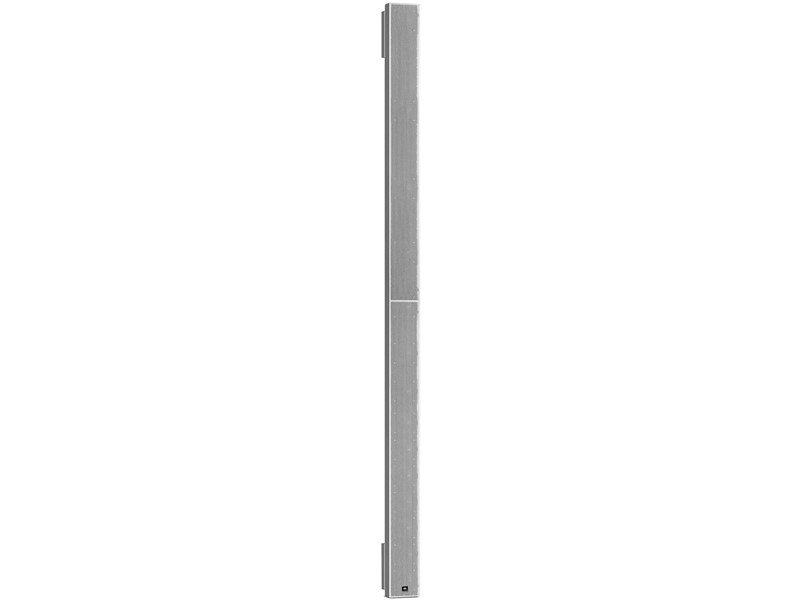

Duran Audio Intellivox HP-DS370 high-power column loudspeaker

The Duran Audio Intellivox HP-DS370 high-power column loudspeaker is a self-contained, 2-way, wide-bandwidth system engineered for high-output applications in large, highly reverberant spaces. Featuring fourteen high-efficiency 6.5” loudspeakers arranged according to Duran Audio’s patented algorithm and two coaxially mounted 1” compression drivers, the HP-DS370 delivers up to 108 dB SPL at 30 meters while maintaining even sound pressure across the audience area. Its extended frequency response up to 18 kHz and array length of 3.7 meters (12’ 2”) provide long throw capability with precise low-frequency control.

The integrated DSP and DDS beam shaping technology allow precise vertical and horizontal sound distribution, improving speech intelligibility and musical reinforcement in theatres, transport hubs, sports arenas, lecture halls, large conference facilities, atriums, museums, and places of worship. For full-range applications, JBL-Axys Beam Shaping Subwoofers can be paired with the HP-DS370 to enhance low-frequency performance and achieve high-fidelity reproduction. Its slim, unobtrusive design allows seamless integration into architecturally sensitive spaces, while network-ready control enables intuitive system management and monitoring.

Features of Intellivox HP-DS370

• Superb speech intelligibility

• IP55 outdoor capable

• Integrated amplification and DSP

• Slim unobtrusive design

• Extended frequency response up to 18 kHz

• Wide horizontal dispersion

• Vertical beam shaping (DDS Technology)

• 32-bit floating point DSP

• Control of vertical beam shaping

• Dual line inputs

• Volume control

• Delay up to 20 seconds

• 8-band parametric EQ

• 8 user-definable, password-protected presets

• Automatic volume control via built-in ambient mic

• Upgradeable firmware

• Network-ready

• Integral surveillance

• Simulation via DDA, Catt-Acoustic, Odeon, and EASE4.3

Specifications of Intellivox HP-DS370
