JBL IVX-587870 Intellivox Series HP-DS170 12 x 100 Watts RMS 10 x 6.5″ Beam Shaping Self-Powered Column Loudspeaker

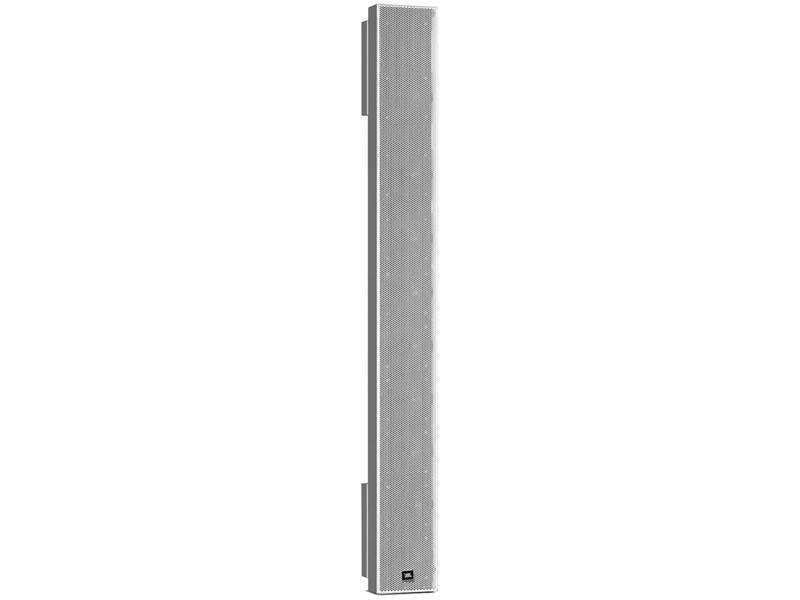

Duran Audio Intellivox HP-DS170 high-power column loudspeaker

The Duran Audio Intellivox HP-DS170 high-power column loudspeaker is a self-contained, 2-way, wide-bandwidth system designed for high-output applications in large, highly reverberant spaces. Featuring ten high-efficiency 6.5” loudspeakers and two coaxially mounted 1” compression drivers, each with dedicated amplification, the HP-DS170 delivers up to 106 dB SPL at 30 meters while maintaining even sound pressure levels across the audience area. Its horizontal dispersion of 100° ensures broad coverage, while the 1.7-meter (5’ 7”) array length allows unobtrusive integration into architecturally sensitive spaces.

Equipped with built-in DSP and DDS beam shaping technology, the HP-DS170 provides precise control over vertical and horizontal sound distribution, improving speech intelligibility and musical reinforcement in venues such as houses of worship, theatres, transport halls, and sports facilities. RS-485 serial control enables easy system integration, monitoring, and configuration. Designed for high reliability and outdoor-capable environments, this loudspeaker delivers superior performance in fill, delay, and touring applications.

Features of Intellivox HP-DS170

• IP55 rated for outdoor use

• Built-in DSP and amplification

• DDS beam shaping technology

• 6.5” high-efficiency drivers

• RS-485 serial control

• High-output 2-way wide-bandwidth system

• Precise vertical and horizontal coverage

• Easy integration in architectural spaces

Specifications of Intellivox HP-DS170
