JBL PD5125-WH Mid/High / Low Frequency – White
High-output dual 15-inch low-frequency loudspeaker system delivering deep bass extension, high SPL performance, vented front-loaded design, and professional-grade deployment for large-scale sound reinforcement applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 19,332.56 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

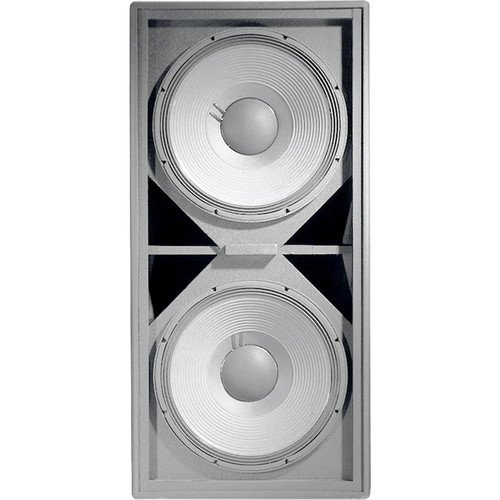

JBL PD5125 Dual 15-inch Low Frequency Loudspeaker System
The JBL PD5125 Dual 15-inch Low Frequency Loudspeaker System is a high-performance bass reinforcement module engineered for demanding professional sound environments. Designed as a high-power low-frequency solution, the PD5125 integrates two 380 mm (15-inch) VGC™ Vented Gap Cooled low-frequency drivers in a front-loaded, vented acoustic configuration to deliver deep bass extension, high output capability, and controlled low-frequency response.
Built for large venues, touring systems, and fixed installations, the PD5125 provides powerful low-end performance with extension down to 40 Hz, making it ideal for applications requiring impactful bass reproduction and system scalability. The vented dual-chamber design enhances airflow efficiency, improves thermal management, and reduces power compression, ensuring consistent performance even under continuous high-output operation.
Its trapezoidal enclosure allows seamless integration with PD5000 and PD700 series systems, supporting uniform array configurations and consistent acoustic alignment. The cabinet is constructed from exterior-grade Finnish birch plywood, providing structural rigidity, acoustic stability, and long-term durability in both touring and installed environments.
Flexible system configuration is supported through parallel and discrete driver input modes, allowing advanced system tuning and amplifier optimization. A comprehensive multi-point M10 suspension system enables secure flown installation, while optional weather-resistant versions support sheltered outdoor use or extreme environmental exposure. Engineered for reliability, power handling, and professional scalability, the JBL PD5125 delivers authoritative low-frequency reinforcement for high-demand sound reinforcement systems.
Features of PD5125
Dual 15-inch high-power LF transducers
VGC vented gap cooled driver technology
Front-loaded vented enclosure design
Deep bass extension to 40 Hz
High SPL output performance
Low distortion acoustic design
Minimal power compression operation
Parallel and discrete input modes
Trapezoidal array-compatible cabinet
PD5000 and PD700 system integration
Multi-point M10 suspension system
Touring-grade plywood construction
Weather-resistant configuration options
High-power professional LF module
Specifications of PD5125
| Product Type | Dual 15-inch Low Frequency Loudspeaker System |
| Frequency Range (-10 dB) | 37 Hz – 2.5 kHz |
| Frequency Response (±3 dB) | 42 Hz – 2.1 kHz |
| Transducer Power Rating (AES) | 2000 W (8000 W peak), 2 hrs |
| System Power Rating | 1200 W (4800 W peak), 100 hrs |
| Maximum SPL (1 m) | 136 dB cont avg (142 dB peak) @ 50–125 Hz / 135 dB cont avg (141 dB peak) @ 125–800 Hz |
| Input Modes | Drivers parallel / drivers discrete |
| Nominal Impedance | 4 ohms (parallel-drive) / 2 x 8 ohms (discrete-drive) |
| LF Drivers | 2 x JBL 2226H 380 mm (15 in) VGC drivers |
| Voice Coil | 100 mm (4 in) |
| Enclosure | Trapezoidal, 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 20 points, M10 threaded hardware |
| Finish | Black DuraFlex finish (White -WH optional) |
| Grille | Powder-coated 14-gauge perforated steel with foam backing |
| Input Connectors | Neutrik Speakon NL8, CE-compliant barrier strip terminals |
| Environmental Rating | Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H x W x D) | 991 x 476 x 609 mm |
| Net Weight | 53.4 kg |
| Optional Versions | WRC (sheltered outdoor), WRX (direct exposure) |
| Optional Accessories | M10 forged shoulder steel eyebolts |
| Nominal LF Driver Impedance | 4 ohms (parallel) / 2 x 8 ohms (discrete) |
| Origin of Country | Mexico |
