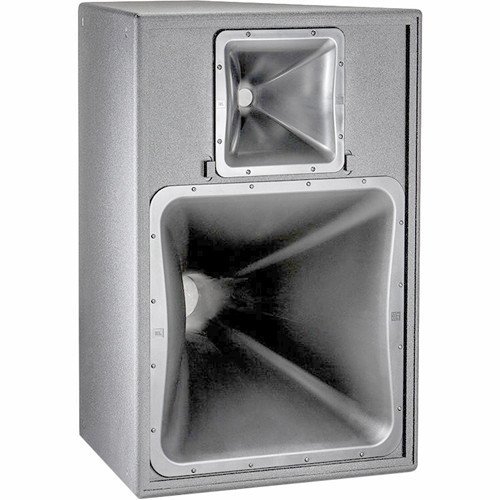

JBL PD6200/43 8-inch 2-Way Horn-Loaded Loudspeaker – White
High-output 8-inch 2-way horn-loaded speaker delivering precision directivity, high SPL capability, controlled coverage patterns, switchable crossover modes, and robust enclosure design for professional sound reinforcement applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 33,879.87 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
PD6200 Series 8-inch 2-Way Horn-Loaded Speaker
The PD6200 Series 8-inch 2-Way Horn-Loaded Speaker is engineered for professional applications requiring high output performance with precise pattern control. Designed as a mid-high frequency loudspeaker system, it delivers exceptional clarity, controlled dispersion, and high continuous SPL capability for demanding installed sound environments.
At the core of the system is a 200 mm (8 in) dual-coil CMCD™ cone midrange compression driver. This high-power transducer provides excellent sensitivity, extended bandwidth, low distortion, and improved phase coherence, ensuring consistent and accurate midrange reproduction even at elevated output levels. Complementing the midrange section is a large format neodymium high-frequency compression driver that delivers clear, intelligible projection with strong high-frequency detail.
The large PT Progressive Transition waveguides are engineered to maintain precise coverage control while minimizing distortion at high SPL levels. Multiple coverage options are available, including 40° x 30°, 60° x 40°, 60° x 60°, and 90° x 50°, allowing system designers to tailor dispersion to venue requirements. Rotatable waveguides support both horizontal and vertical cabinet orientation for flexible installation.
The system supports bi-amp or passive crossover modes, utilizing a 6th order Linkwitz-Riley network at 1.7 kHz for accurate frequency division. The trapezoidal enclosure is constructed from 16 mm exterior-grade 11-ply Finnish birch plywood, ensuring structural integrity and acoustic stability. With extensive suspension points, durable DuraFlex finish, and professional input connectivity, the PD6200 Series 8-inch 2-Way Horn-Loaded Speaker delivers precision directivity, high output, and installation versatility.
Features of 8-inch 2-Way Horn-Loaded Speaker
200 mm dual-coil CMCD cone midrange compression driver
High-sensitivity neodymium HF compression driver
Large PT Progressive Transition waveguides
Controlled 40° x 30° horn dispersion
Multiple coverage pattern options available
Rotatable waveguide for flexible orientation
Switchable bi-amp and passive crossover modes
6th order Linkwitz-Riley crossover network
High continuous SPL capability
8-ohm nominal system impedance
Trapezoidal Finnish birch plywood enclosure
20-point M10 suspension system
Neutrik Speakon NL4 input connectors
Barrier strip terminal connectivity
Weather-resistant version options available
Powder-coated steel protective grille
Specifications of 8-inch 2-Way Horn-Loaded Speaker
| Frequency Range (-10 dB) | 200 Hz to 18 kHz |
| Frequency Response (±3 dB) | 240 Hz to 16 kHz |
| Coverage Pattern | 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50° |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover | 6th order (36 dB/oct) Linkwitz-Riley, 1.7 kHz |
| Transducer Power Rating (AES) | MF: 350 W (1400 W peak); HF: 75 W (300 W peak) |
| System Power Rating | 300 W (1200 W peak), IEC rated |
| Maximum SPL (1m) | Bi-amp MF: 137 dB avg (143 dB peak); HF: 135 dB avg (141 dB peak); Passive: 136 dB avg (142 dB peak) |
| System Sensitivity (1W/1m) | 111 dB SPL (Passive mode) |
| MF Driver | CMCD–82H, 200 mm dual voice coil, Neodymium Differential Drive |
| HF Driver | 2432H, 38 mm exit, 75 mm voice coil |
| Nominal Impedance | 8 ohms |
| Nominal MF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
| Enclosure | 16 mm 11-ply Finnish birch plywood, trapezoidal |
| Suspension Attachment | 20 x M10 threaded points |
| Finish | Black DuraFlex |
| Grille | 14 gauge perforated steel, foam backed |
| Input Connectors | Neutrik Speakon NL4 and covered barrier strip |
| Environmental Rating | Mil-Std 810; IP-x3 (IEC529) |
| Dimensions (H x W x D) | 991 x 673 x 897 mm |
| Net Weight | 69 kg |
| Origin of Country | Mexico |
