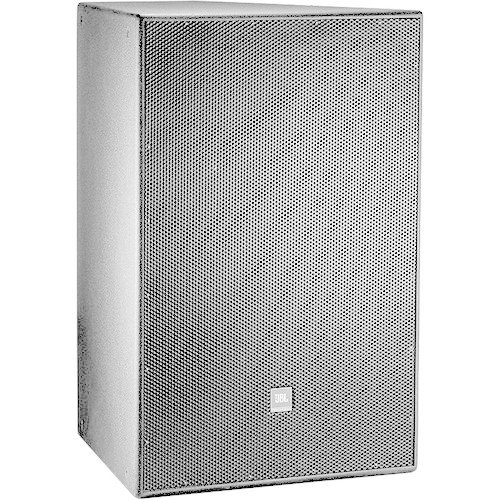

JBL PD6322/95 Dual 12-inch 3-Way Horn-Loaded Loudspeaker – White
Dual 12-inch 3-way horn-loaded speaker with 90° x 50° coverage, delivering deep low-frequency extension to 41 Hz, high output sensitivity, and precise directivity control for professional audio applications.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 31,516.13 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
PD6322 Dual 12-inch 3-Way Horn-Loaded Speaker
The PD6322 Dual 12-inch 3-Way Horn-Loaded Speaker is part of the Precision Directivity Series, designed to deliver high-output, full-range performance with precise coverage for professional sound reinforcement. Ideal for standalone music or speech systems requiring low-frequency response down to 41 Hz, it can also be integrated with subwoofers for extended full-range audio.
This three-way system features two 300 mm (12 in) slot-loaded low-frequency drivers that provide powerful bass while keeping a compact enclosure. The midrange is managed by a CMCD cone compression driver with an integral 200 mm Differential Drive dual 75 mm voice coil, ensuring high sensitivity, wide bandwidth, low distortion, and accurate phase response. High frequencies are reproduced by a large-format neodymium compression driver, offering clear and intelligible projection across wide audiences.
PT Progressive Transition waveguides deliver consistent coverage, smooth frequency response, and low distortion at high SPL levels. The 90° x 50° horn ensures wide horizontal and vertical dispersion, and rotatable mid and high frequency waveguides allow flexible cabinet placement.
A 6th order Linkwitz-Riley crossover at 1.5 kHz provides steep-slope filtering between mid and high frequencies, with switchable tri-amp or bi-amp operation for installation flexibility. The trapezoidal enclosure is constructed from 16 mm exterior-grade 11-ply Finnish birch plywood, with 20 M10 suspension points, providing both durability and professional-grade reliability.
Features of PD6322
Dual 300 mm slot-loaded low-frequency drivers
Low-frequency extension to 41 Hz
CMCD cone midrange compression driver
Large-format neodymium HF compression driver
90° x 50° precise coverage pattern
PT Progressive Transition waveguide system
High sensitivity with continuous SPL
Low distortion and improved phase coherence
Rotatable mid and high frequency waveguides
Switchable tri-amp and bi-amp crossover modes
6th order Linkwitz-Riley crossover at 1.5 kHz
4-ohm nominal system impedance
Trapezoidal Finnish birch plywood enclosure
20-point M10 suspension points
Neutrik Speakon NL8 and barrier strip inputs
Powder-coated perforated steel grille
Specifications of PD6322
| Frequency Range (-10 dB) | 41 Hz to 17 kHz |
| Frequency Response (±3 dB) | 49 Hz to 15 kHz |
| Coverage Pattern | 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50° |
| Crossover Modes | Tri-amp / Bi-amp (passive mid-high) switchable |
| Passive Crossover | 6th order (36 dB/oct) Linkwitz-Riley, 1.5 kHz |
| Transducer Power Rating (AES) | LF: 1600 W (6400 W peak), 2 hrs; 1200 W (4800 W peak), 100 hrs; MF: 350 W (1400 W peak), 100 hrs; HF: 75 W (300 W peak), 2 hrs |
| System Power Rating | LF: 1200 W (4800 W peak); MF/HF: 300 W (1200 W peak), 100 hrs |
| Maximum SPL (1m) | Tri-amp LF: 128 dB avg (134 dB peak); MF: 134 dB avg (140 dB peak); HF: 133 dB avg (139 dB peak); Passive: 134 dB avg (140 dB peak) |
| System Sensitivity | 109 dB SPL (Passive mid/high section) |
| LF Driver | 2 x 2206H, 300 mm (12 in), 100 mm voice coil |
| MF Driver | CMCD-82H, 200 mm Differential Drive dual 75 mm voice coil |
| HF Driver | 2432H, 38 mm exit, 75 mm voice coil |
| Nominal Impedance | 4 ohms (2 x 8 ohms internally parallel) |
| Nominal LF Driver Impedance | 4 ohms (2 x 8 ohms internally parallel) |
| Nominal MF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
| Enclosure | 16 mm 11-ply Finnish birch plywood, trapezoidal |
| Suspension Attachment | 20 x M10 threaded points |
| Finish | Black DuraFlex |
| Grille | 14 gauge perforated steel, foam backed |
| Input Connectors | Neutrik Speakon NL8 and covered barrier strip |
| Environmental Rating | Mil-Std 810; IP-x3 (IEC529) |
| Dimensions (H x W x D) | 991 x 673 x 897 mm |
| Net Weight | 77 kg |
| Origin of Country | Mexico |
