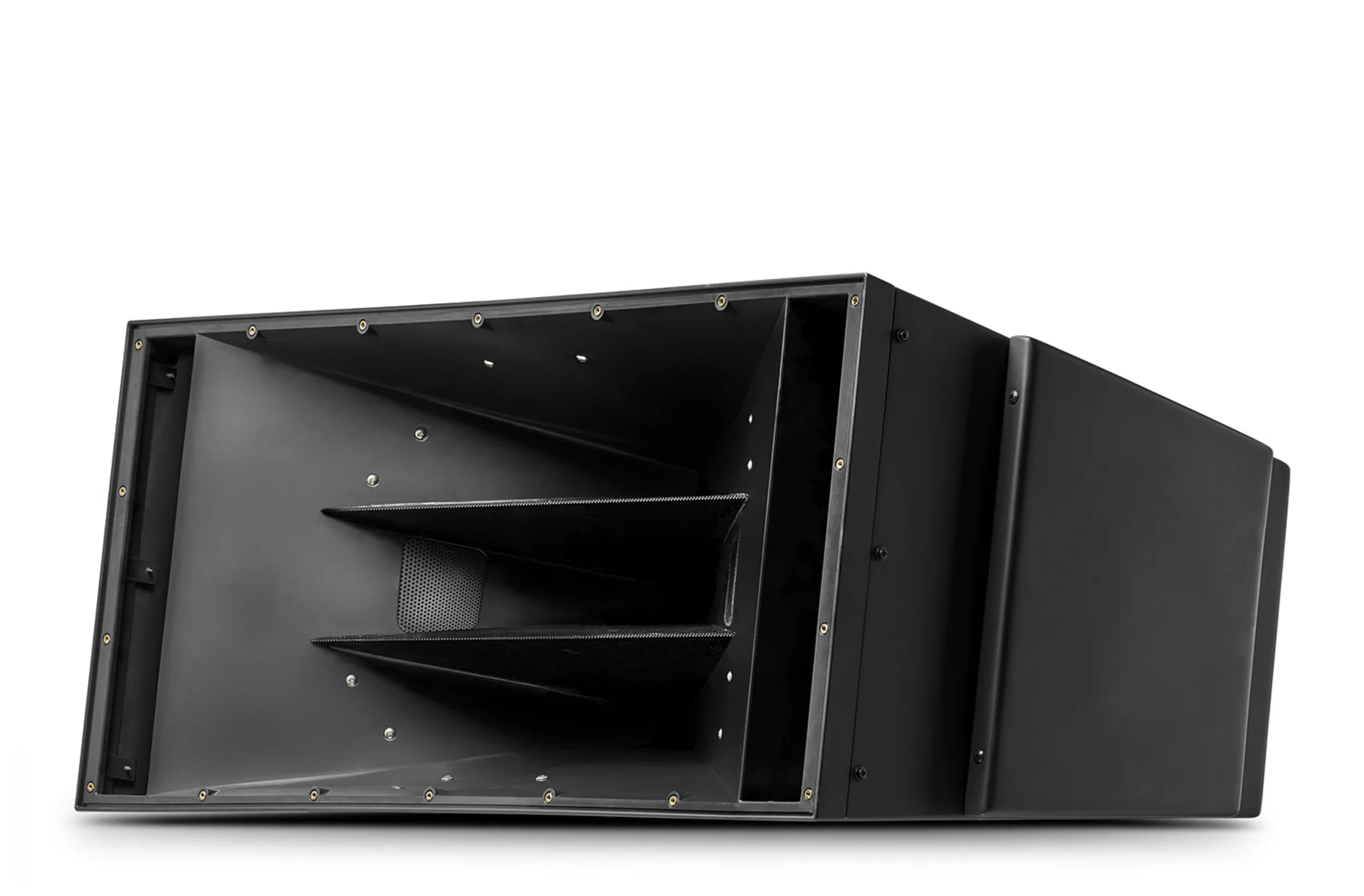

JBL VLA-C2100 Two-Way Full Range Loudspeaker with 2 x 10″ Differential Drive LF – Black
The JBL VLA-C2100 is a two-way full-range line array loudspeaker featuring dual 10-inch Differential Drive low-frequency drivers, a triple-driver horn-loaded HF section, and an IP55-rated enclosure for high-output permanent installations.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 37,548.62 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL VLA-C2100 Two-Way Full Range Loudspeaker with Dual 10-inch Differential Drive LF
The JBL VLA-C2100 is engineered using JBL’s proven transducer technologies to deliver powerful, consistent performance in fixed installation environments. The low-frequency section incorporates two 10-inch 2261 Differential Drive® woofers, each equipped with dual 3-inch voice coils and neodymium magnet structures for high efficiency, reduced weight, and impressive output.
The high-frequency section is horn-loaded for enhanced sensitivity and precise pattern control. It utilizes three D2415 compression drivers featuring 1.5-inch annular diaphragms, dual voice coils, and neodymium motors, ensuring clear, detailed high-frequency reproduction across the coverage area.
The enclosure is constructed from multi-layer reinforced fiberglass with steel end panels and 18 mm birch plywood internal bracing for durability and structural strength. A zinc-plated, powder-coated 14-gauge perforated steel grille protects the front, backed with acoustically transparent cloth and a hydrophobic mesh layer, along with a waterproof rail system. With an IP55 rating, the loudspeaker is protected against dust and water jets, making it suitable for outdoor and weather-exposed installations.

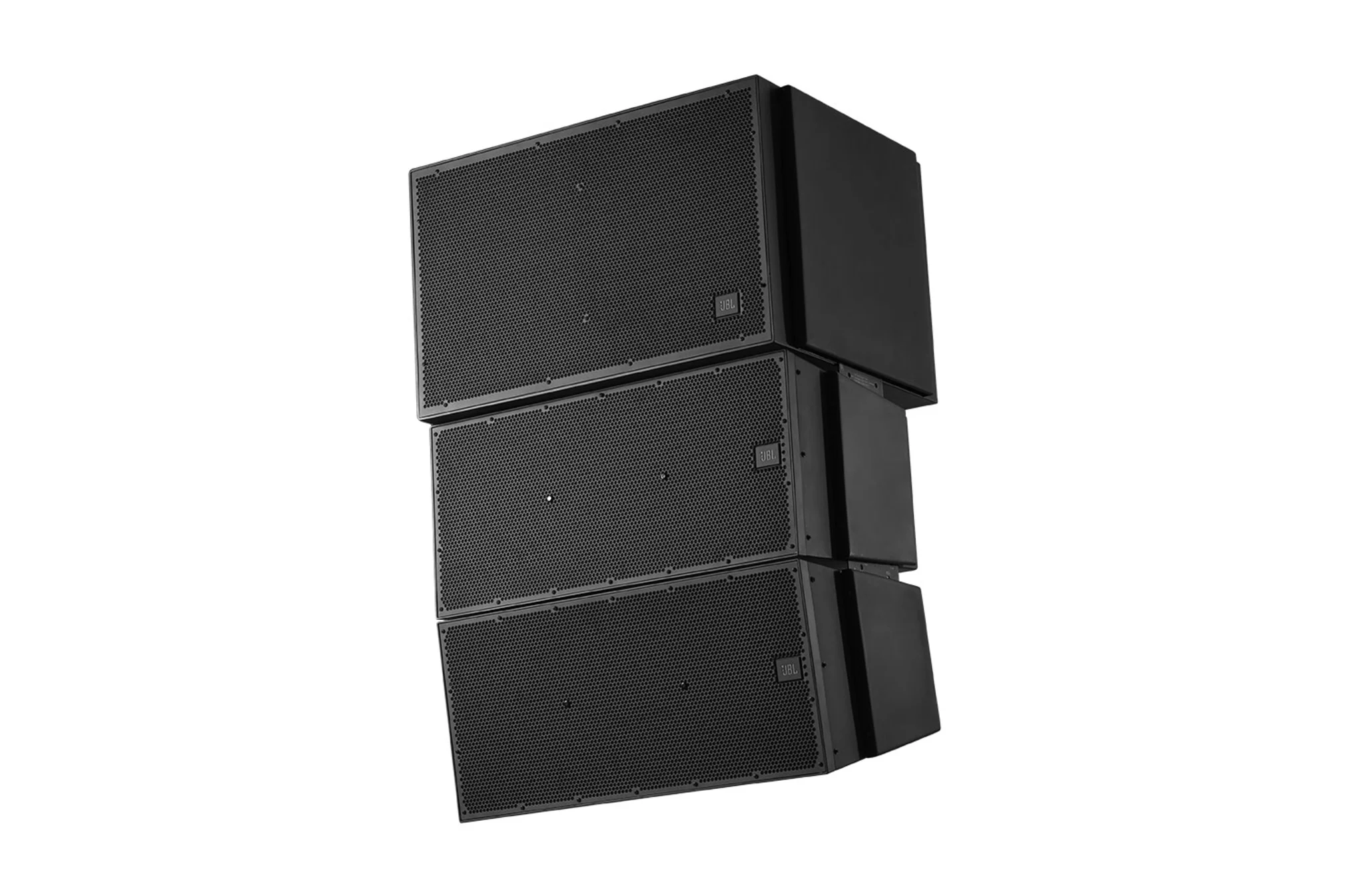

The integrated rigging system allows inter-enclosure angles to be selected during array assembly for precise coverage control. Optional accessories such as a rigging frame, pull-back bar, and cardioid subwoofer kit expand configuration flexibility. The VLA-C2100 can be operated in full-range passive mode or bi-amplified for maximum SPL and system optimization.
Features of VLA-C2100
Two-way full-range compact line array module
Dual 10-inch 2261 Differential Drive® low-frequency drivers
Horn-loaded HF section with three D2415 compression drivers
Dual 3-inch LF voice coils and dual 1.5-inch HF voice coils
100° horizontal coverage pattern
Bi-amp or passive operation capability
IP55-rated enclosure for outdoor applications
Multi-layer fiberglass enclosure with steel end panels
Weatherized components with hydrophobic grille protection
Integrated rigging system with selectable inter-box angles
Compatible with Crown DCi amplifiers with onboard DSP
Designed for permanent installation line array systems
Specifications of VLA-C2100
| System Type | Two-way full range line array loudspeaker |
| Frequency Range (-10 dB) | 86 Hz – 18 kHz |
| Frequency Response (±3 dB) | 109 Hz – 15.3 kHz |
| Full-Range Power Rating | 800 W continuous (3200 W peak, 2 hrs); 400 W continuous (1600 W peak, 100 hrs) |
| Bi-amp LF | 800 W continuous (3200 W peak, 2 hrs); 400 W continuous (1600 W peak, 100 hrs) |
| Bi-amp HF | 150 W continuous (600 W peak, 2 hrs); 50 W continuous (200 W peak, 100 hrs) |
| Maximum Input Voltage | 80 V RMS (2 hrs), 160 V peak |
| Maximum SPL (1m) | 131 dB continuous, 137 dB peak |
| Coverage Pattern (-6 dB) | Horizontal: 100° (+5°/-15°, 1.5 kHz – 15 kHz); Vertical varies by array configuration |
| Recommended Amplifiers | Crown DCi 2 |
| LF Drivers | 2 × 2261FF, 254 mm (10 in), dual 76 mm (3 in) voice coils, Neodymium Differential Drive®, Direct Cooled™ |
| HF Drivers | 3 × 2415K D2 dual diaphragm compression drivers, dual 38 mm (1.5 in) voice coils, 21 mm exit |
| Enclosure Material | Fiberglass shell with gelcoat finish and 18 mm birch plywood bracing |
| Grille | 14-gauge powder-coated hex-perforated steel with zinc undercoating, acoustically transparent cloth, hydrophobic screen |
| Inter-Enclosure Angles | 0°–15° depending on configuration and bracket plate selection |
| Environmental Rating | IP55 per IEC529 (dust protected, protected against water jets) |
| Terminals | CE-compliant covered barrier strip; accepts up to 5.2 mm² (10 AWG) wire or 9 mm spade lugs |
| Colors | Gray (-GR, similar to Pantone 420C) or Black (-BK) |
| Dimensions (H × W × D) | 381 × 848 × 460 mm (15.0 × 33.4 × 18.1 in) |
| Net Weight | 37.7 kg (83 lb) |
| Shipping Weight | 44.0 kg (97 lb) |
| Included Accessories | 2 × VLA-C2100 bracket plates, 8 × M10 × 35 mm stainless bolts, 2 × trim cover panels, 8 × trusshead stainless screws |
| Optional Accessories | VLA-C-SB2 (JBL-VLACSB2BK) suspension bracket kit |
