Description

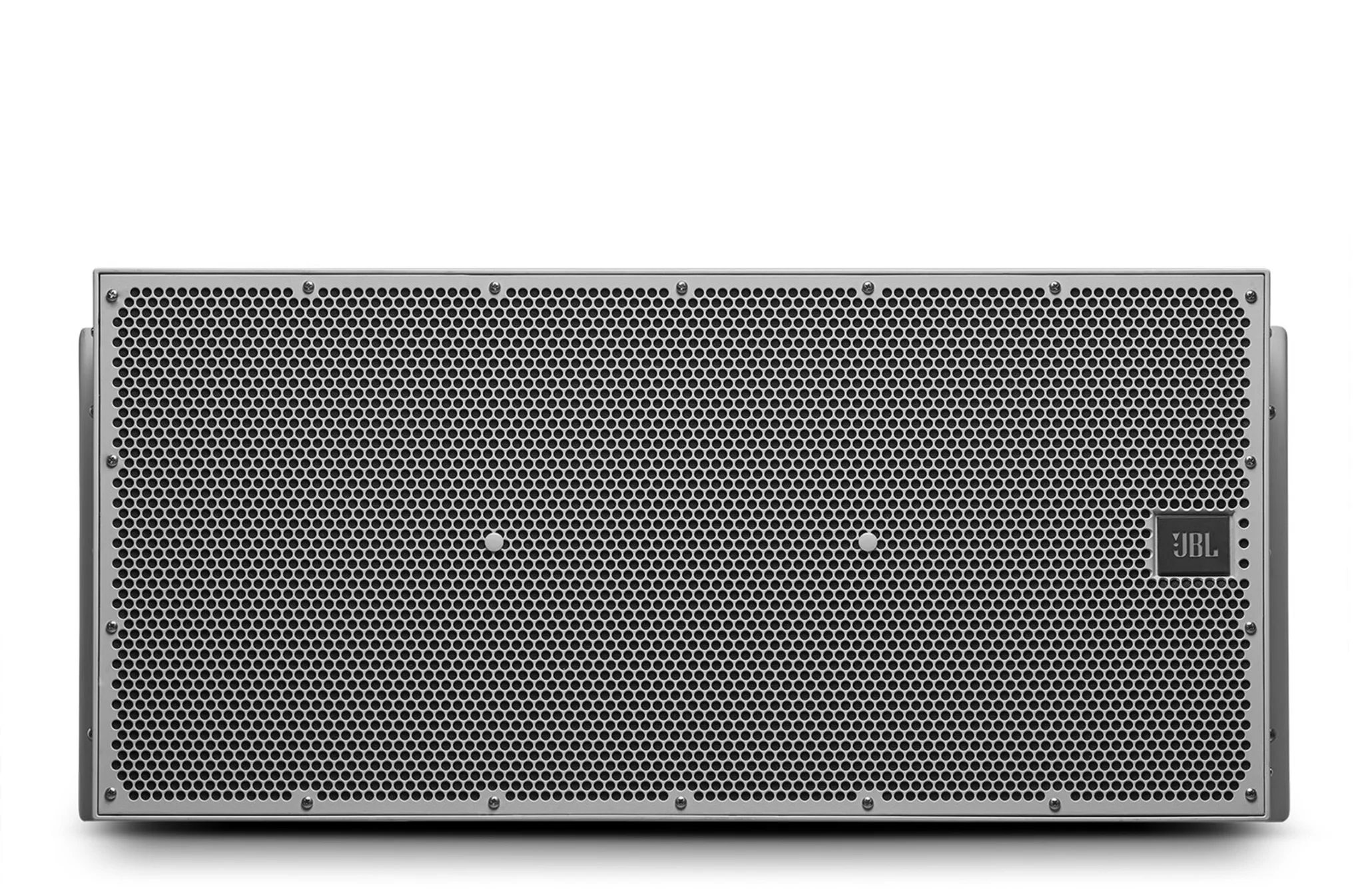

JBL VLA-C265 Two-Way Full Range Loudspeaker
The JBL VLA-C265 Two-Way Full Range Loudspeaker is a compact line array module optimized for permanent installation applications requiring high output, controlled coverage, and environmental durability. Designed using proven JBL technology components, this system combines advanced transducer engineering with a rugged enclosure and comprehensive rigging system for scalable array configurations.
The low-frequency section utilizes dual 2261FF 10-inch Differential Drive drivers, each incorporating dual 3-inch voice coils and neodymium motor structures. This design reduces weight while increasing power handling, lowering distortion, and extending low-frequency performance. The high-frequency section is horn-loaded for maximum sensitivity and precise pattern control, featuring three 2415K D2 dual diaphragm, dual voice coil compression drivers with 1.5-inch annular diaphragms and neodymium motors, delivering clear and detailed high-frequency response.
The enclosure is constructed from multi-layer reinforced fiberglass with steel end panels and internal 18 mm birch plywood bracing for structural integrity. The grille system includes zinc-plated, powder-coated 14-gauge perforated steel, acoustically transparent backing, hydrophobic mesh, and a waterproof rail system, achieving IP55 environmental protection against dust and water jets.
Inter-enclosure angles are selectable during assembly, enabling flexible array configuration. The system supports both bi-amplified operation for maximum SPL and passive configuration for reduced amplification requirements. With 65° horizontal coverage and compatibility with Crown DCi amplifiers featuring onboard DSP, the JBL VLA-C265 provides controlled performance and installation versatility for fixed venue sound reinforcement systems.
Features of VLA-C265
Compact two-way line array module
Dual 10-inch Differential Drive LF transducers
Triple 2415K D2 compression drivers
65° horizontal coverage pattern
Horn-loaded HF section for pattern control
Bi-amplified or passive operation modes
IP55 rated weather protection
Fiberglass enclosure with gelcoat finish
14-gauge zinc-coated steel grille
Hydrophobic mesh and waterproof rail system

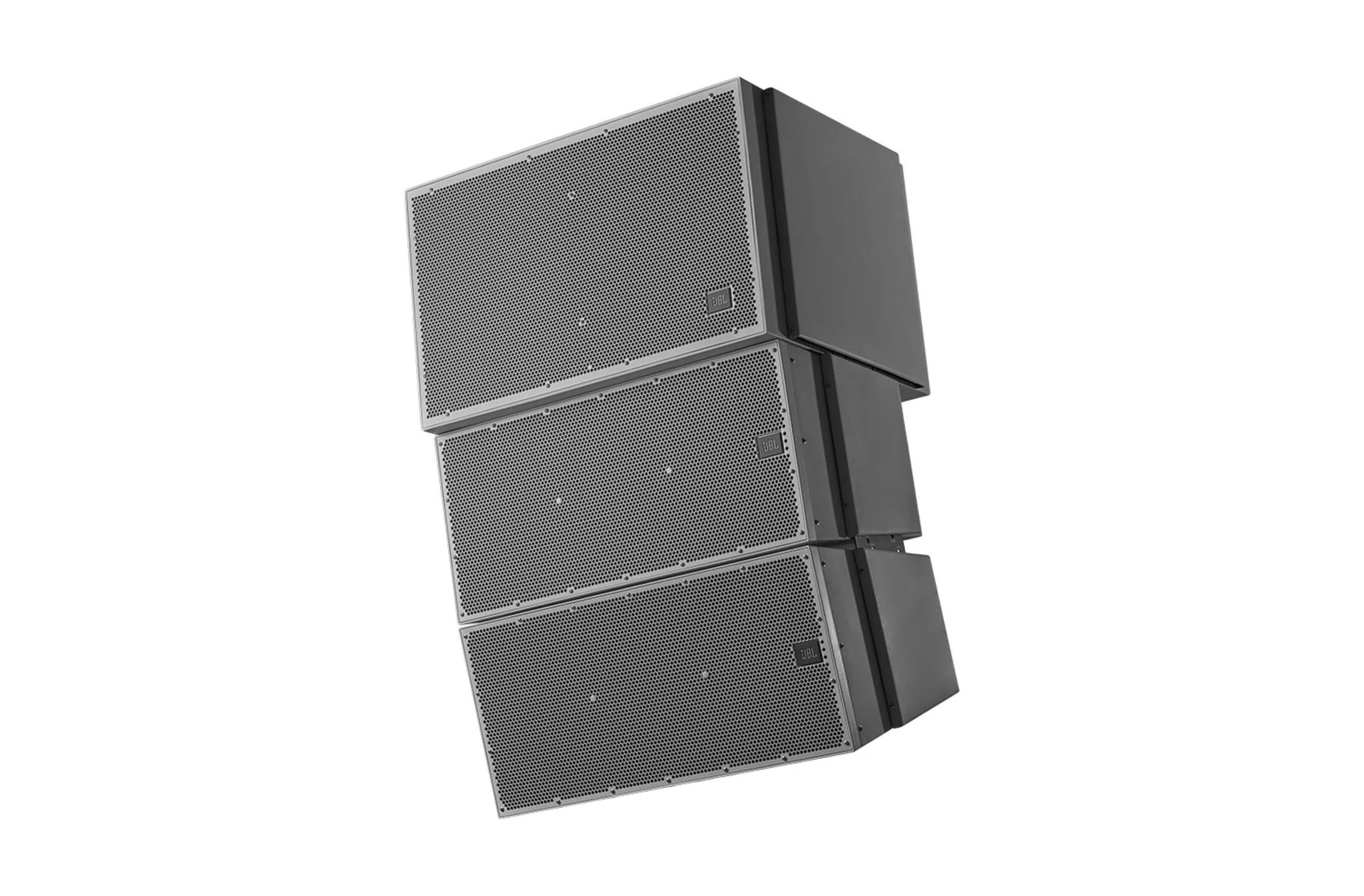

Selectable inter-box array angles
Integrated comprehensive rigging system
Compatible with Crown DCi amplifiers with DSP
Specifications of VLA-C265
| System Type | Two-way full range line array loudspeaker |
| Frequency Range (-10 dB) | 85 Hz – 19 kHz |
| Frequency Response (±3 dB) | 108 Hz – 16.5 kHz |
| Full Range Power Handling | 800 W Continuous (2 hrs), 3200 W Peak; 400 W Continuous (100 hrs), 1600 W Peak |
| Bi-amp LF Power Handling | 800 W Continuous (2 hrs), 3200 W Peak; 400 W Continuous (100 hrs), 1600 W Peak |
| Bi-amp HF Power Handling | 150 W Continuous (2 hrs), 600 W Peak; 50 W Continuous (100 hrs), 200 W Peak |
| Full-Range Voltage | 80 V RMS (2 hrs), 160 V Peak |
| Maximum SPL (1m) | 131 dB Continuous, 137 dB Peak |
| Coverage Pattern | 65° Horizontal; Vertical varies with array configuration |
| LF Driver | 2 x 2261FF, 254 mm (10 in), dual 76 mm (3 in) voice coils, Neodymium Differential Drive |
| HF Driver | 3 x 2415K D2 compression drivers, dual 38 mm (1.5 in) voice coils, 21 mm exit |
| Enclosure Material | Fiberglass shell with gelcoat finish; 18 mm birch plywood internal bracing |
| Grille | 14-gauge powder-coated zinc-plated steel with acoustically transparent cloth and hydrophobic screen |
| Environmental Rating | IP55 per IEC529 |
| Terminals | CE-compliant covered barrier strip terminals |
| Dimensions (H x W x D) | 381 x 848 x 460 mm |
| Net Weight | 37.7 kg |
| Shipping Weight | 44.0 kg |
| Included Accessories | 2 x VLA-C265 Bracket Plates; M10 stainless steel bolts; Plastic trim cover panels |
| Optional Accessories | VLA-C-SB2 Suspension Bracket Kit |
| Origin of Country | Mexico |
