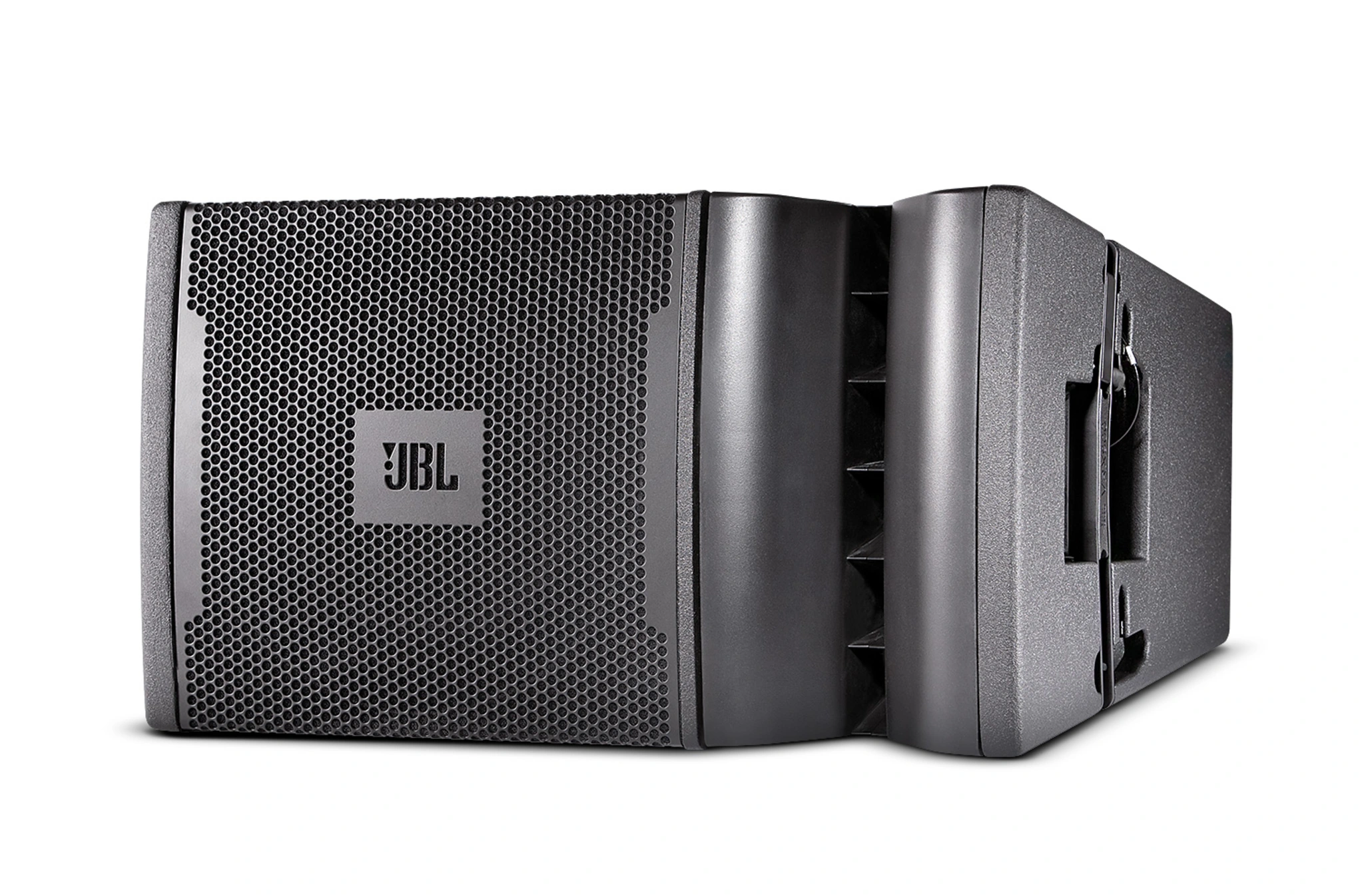

JBL VRX932LA-1 12 in. Two-Way Line Array Loudspeaker System – Black

JBL VRX932LA-1 12 in. Two-Way Line Array Loudspeaker System

The JBL VRX932LA-1 12 in. Two-Way Line Array Loudspeaker System is a compact, lightweight professional speaker engineered for line array applications. Weighing 21 kg (46 lb), each enclosure can be arrayed with up to six units, providing powerful, coherent sound reinforcement for live events, touring, and permanent installations.

This system features a JBL 2262H 12-inch Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps, delivering high power capacity with minimal distortion. The high-frequency section utilizes three JBL 2408J annular ring diaphragm compression drivers with 38 mm (1.5 in) voice coils and neodymium magnets, mounted on a constant curvature waveguide to ensure seamless array coherence and smooth coverage.

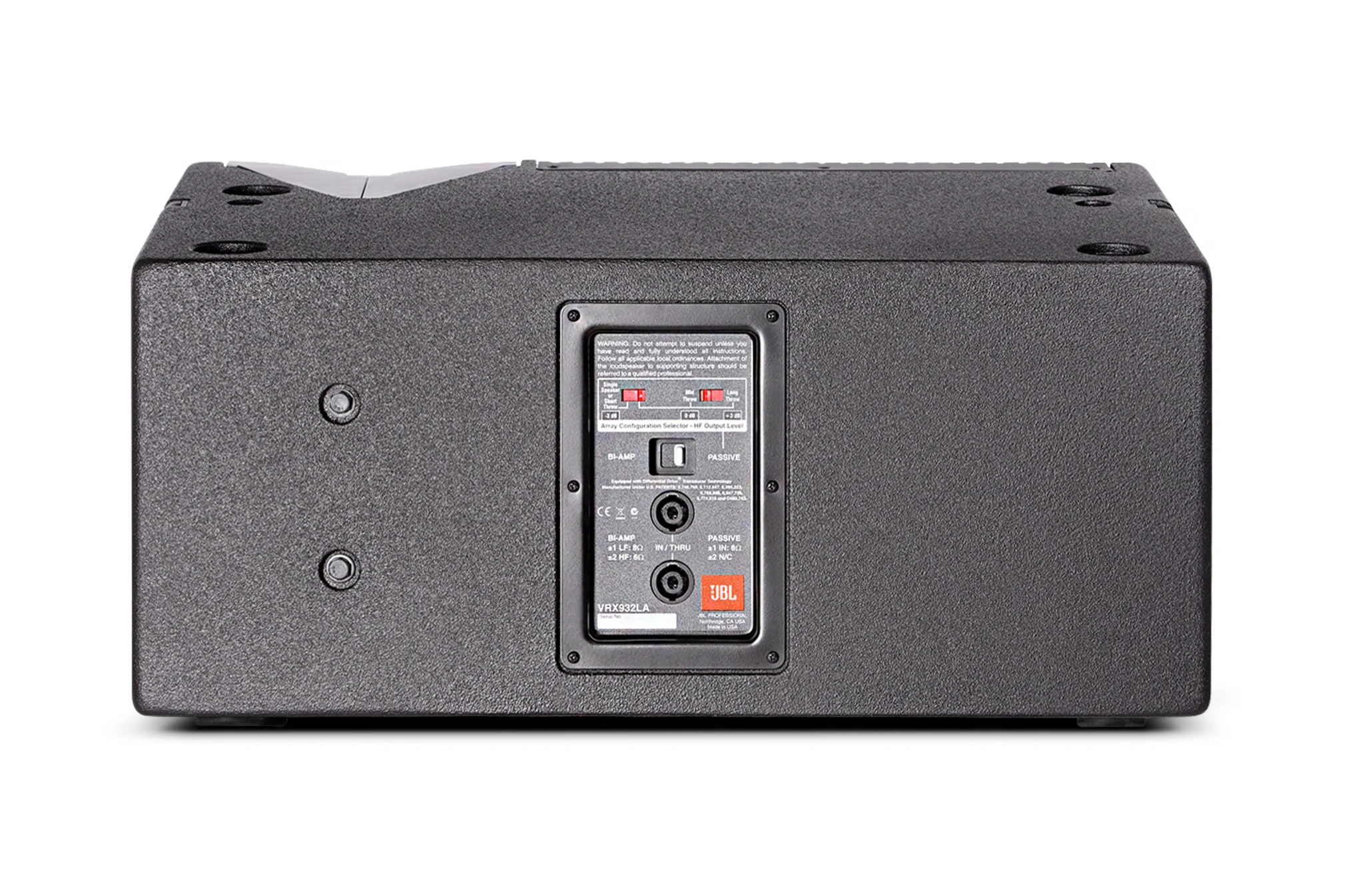

Integral rigging hardware allows secure connection of multiple enclosures and optional array frames, while the dual-angle pole socket enables flexible aiming for one or two speakers on a 35 mm pole or tripod. An array configuration selector provides convenient “array shading” in passive mode, giving precise control over high-frequency output across the array.

Constructed from 18 mm, 11-ply birch plywood and finished in durable black DuraFlex™, the VRX932LA-1 offers reliability in demanding environments. A powder-coated 16-gauge perforated steel grille with acoustically transparent foam protects internal components without impacting sound quality. Bi-amp or passive operation with externally switchable crossover modes and a 1.2 kHz crossover frequency ensures consistent audio performance.

Ideal for concerts, clubs, DJ systems, touring, and fixed installations, the JBL VRX932LA-1 delivers high-output, professional-quality sound with precise control and versatile deployment options.

Features of VRX932LA-1

• 12-inch Differential Drive® neodymium woofer

• Three 2408J compression drivers for high-frequency clarity

• Constant curvature waveguide for seamless array coherence

• Lightweight and compact design

• Dual-angle pole sockets for flexible aiming

• Integral rigging hardware for line array setup

• Array configuration selector for shading in passive mode

• Bi-amp or passive operation

• Durable birch plywood enclosure with DuraFlex finish

• Powder-coated 16-gauge steel grille with acoustic foam backing

• Maximum SPL up to 139 dB HF in bi-amp mode

Specifications of VRX932LA-1
