RCF C3108-96 Two-Way Passive Speaker System

RCF C3108-96 Two-Way Loudspeaker System

The RCF C3108-96 is a versatile, low-profile two-way full-range loudspeaker engineered for professional installation and near-field sound reinforcement applications. It is designed to deliver clear, balanced audio performance with wide coverage, making it ideal for environments such as conference rooms, retail spaces, small venues, and discreet wall-mounted installations.

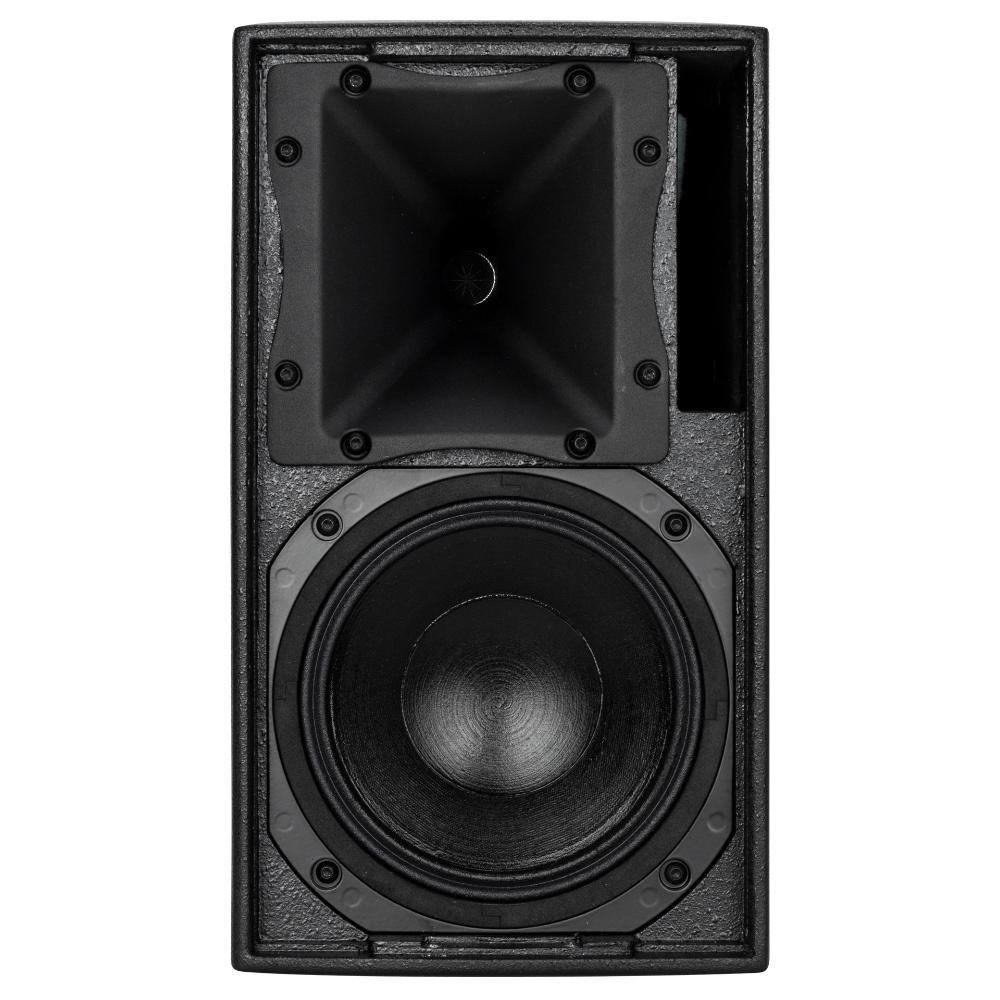

The system incorporates an 8-inch high-power woofer for accurate low-frequency reproduction and a 1-inch compression driver equipped with a 1.5-inch voice coil for smooth and detailed high-frequency response. This configuration ensures full-range sound with excellent clarity and definition across the entire frequency spectrum. Operating within a frequency range of 70 Hz to 20 kHz, it provides consistent audio performance for both speech and music applications.

A constant directivity horn design enables a controlled dispersion pattern of 90° horizontal and 60° vertical, ensuring uniform sound coverage across the listening area. This makes it highly effective in spaces where even sound distribution and speech intelligibility are critical.

Built from durable Baltic birch plywood, the enclosure offers strong acoustic performance and long-term reliability. The steel front grille with dual-layer polyester protection enhances durability while maintaining acoustic transparency. Flexible mounting options are available on multiple panels, allowing secure installation in various orientations. The Speakon NL4 connectors provide reliable input and parallel output connectivity for professional audio system integration. The C3108-96 is a compact yet powerful solution for precise and dependable sound reinforcement.

Features of C3108-96

• 300W RMS power handling capacity
• Maximum SPL output up to 126 dB
• Frequency response from 70 Hz to 20 kHz
• 90° horizontal coverage angle
• 60° vertical controlled dispersion
• 8-inch high-power low-frequency woofer
• 1-inch compression driver with 1.5-inch voice coil
• Constant directivity horn design
• Baltic birch plywood enclosure construction
• Steel grille with dual-layer polyester protection
• High clarity speech and music reproduction
• Compact low-profile cabinet design

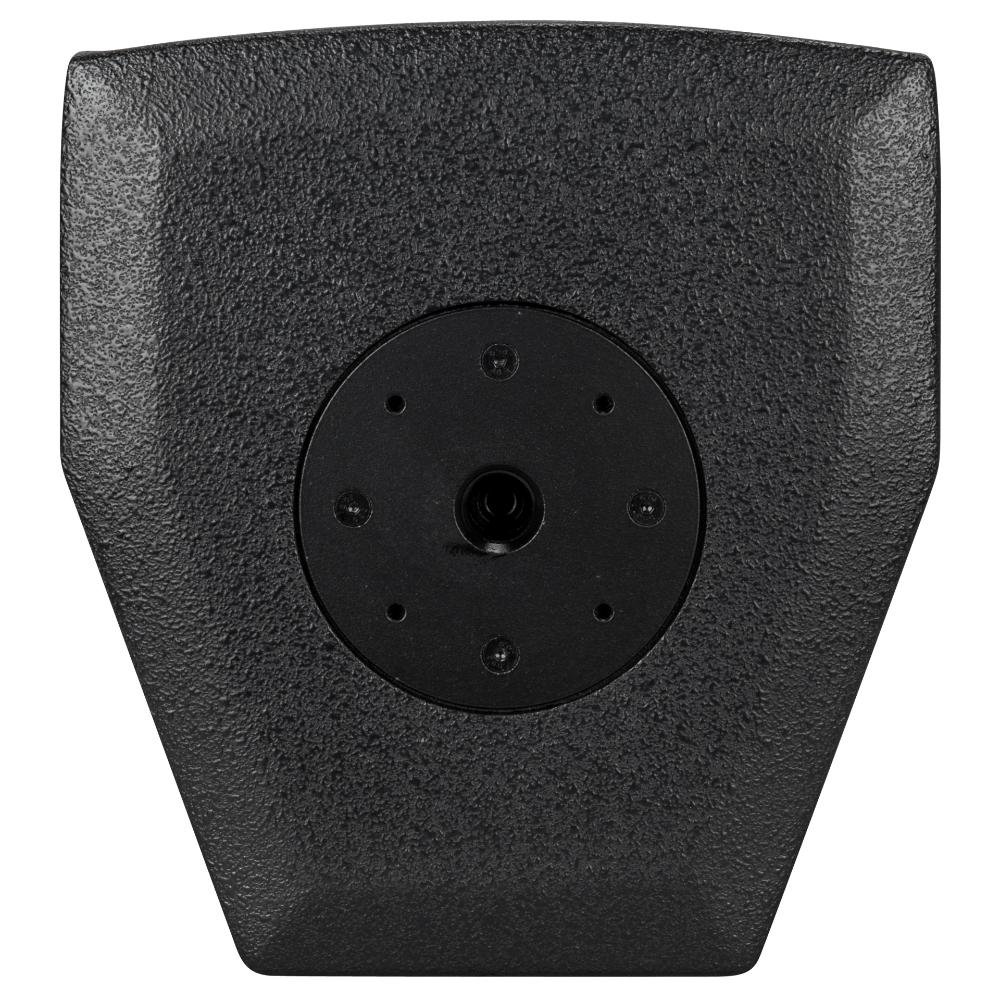

• Multiple installation mounting points

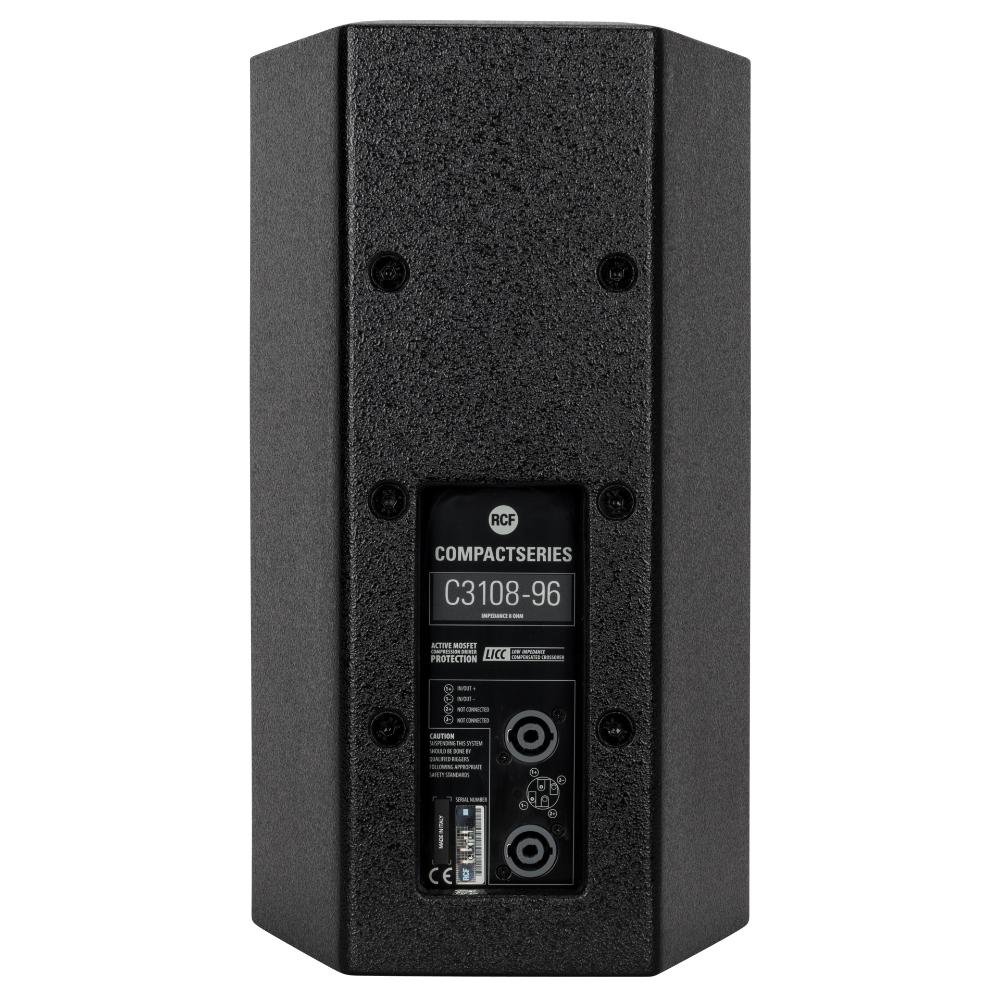

• Speakon NL4 input and link output
• Suitable for near-field applications

Specifications of C3108-96
