RCF COMPACT M 12 Passive 2-Way Loudspeaker – White

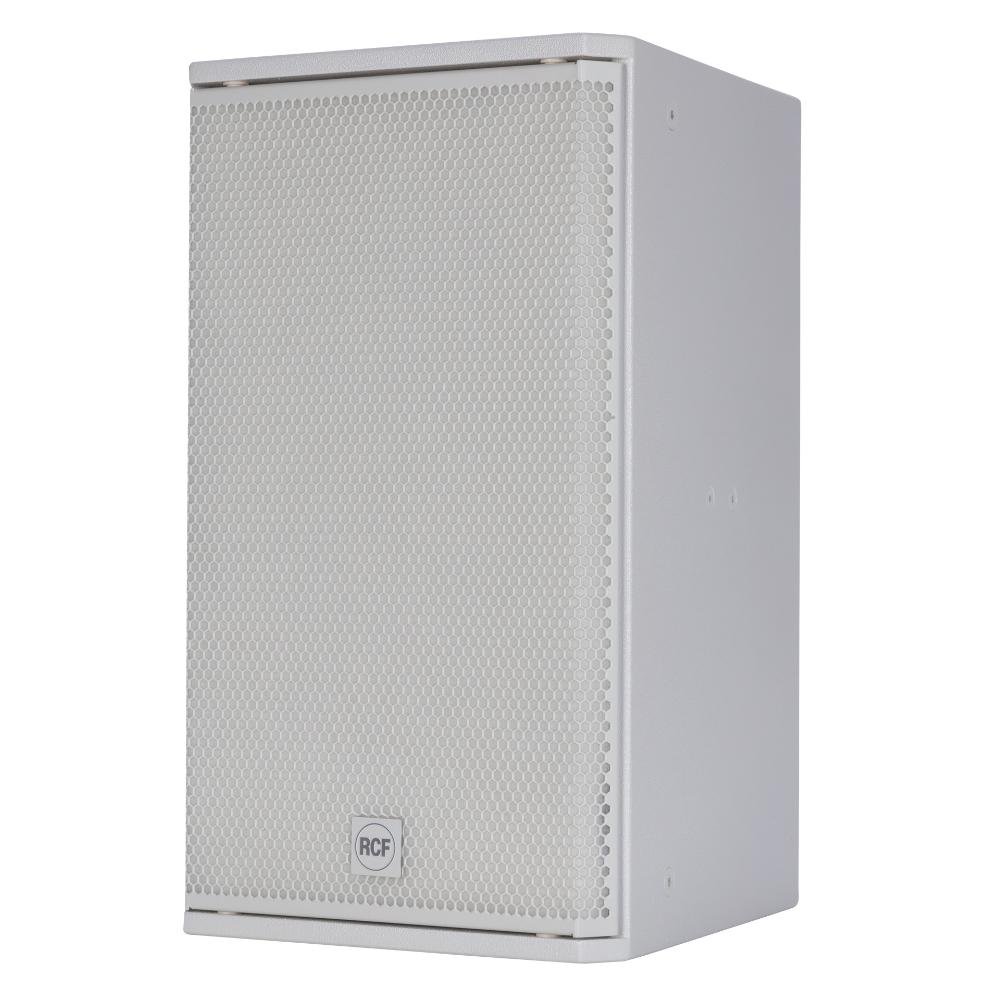

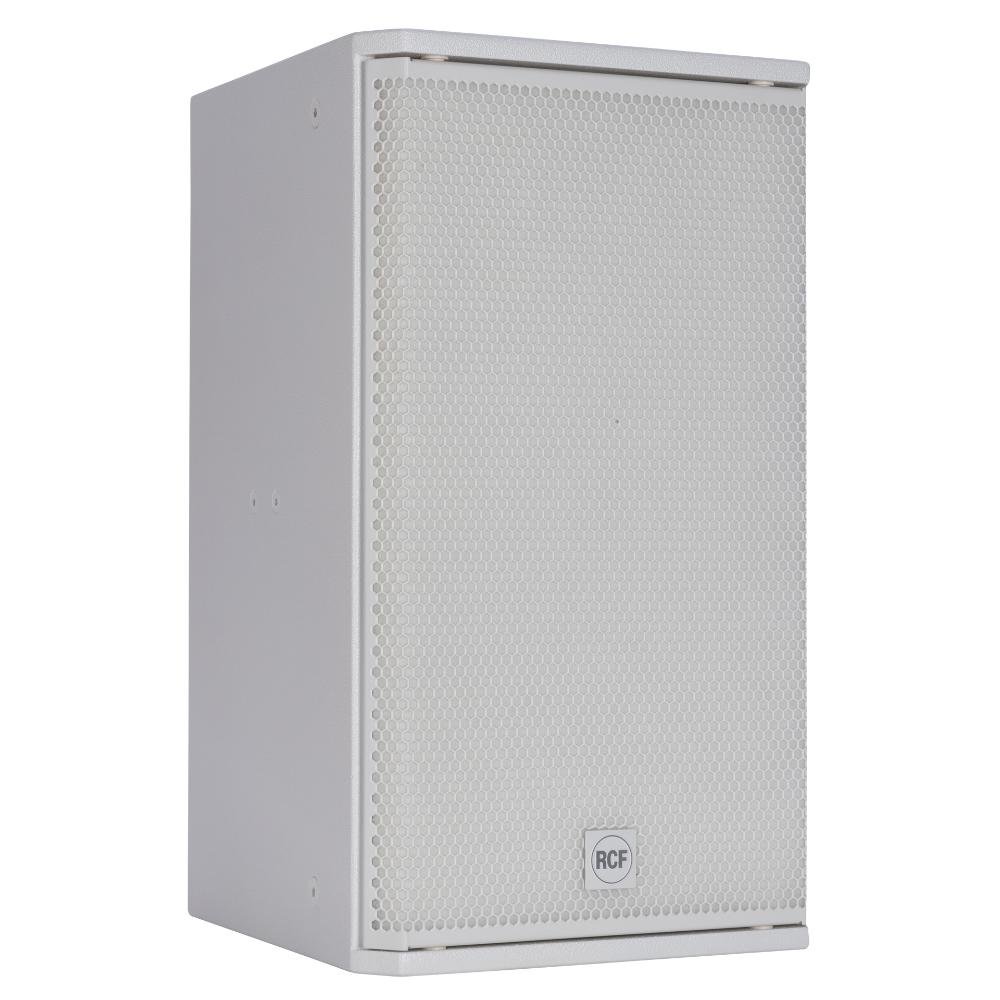

RCF COMPACT M 12 two-way full-range loudspeaker system

The RCF COMPACT M 12 is a high-performance passive two-way loudspeaker engineered for demanding professional audio applications where clarity, power, and reliability are essential. It combines a 12-inch high-power woofer with a 1.4-inch voice coil compression driver, producing a balanced and dynamic sound output suitable for both foreground and background sound reinforcement.

With a frequency response ranging from 55 Hz to 20,000 Hz, the system delivers deep bass performance along with detailed high-frequency reproduction. Its ability to reach a maximum sound pressure level of 129 dB ensures strong audio projection even in large or acoustically challenging spaces such as concert venues, auditoriums, clubs, houses of worship, and commercial installations.

The loudspeaker incorporates a 90° x 70° constant directivity horn that can be rotated, allowing flexible horizontal or vertical installation while maintaining uniform sound coverage. This makes it adaptable to a wide variety of acoustic setups and architectural constraints.

Built using durable plywood construction, the cabinet provides both structural integrity and acoustic stability. The steel front grille with internal fabric protection ensures durability while maintaining a clean and professional appearance. Multiple integrated mounting points on different panels allow flexible installation options including wall, ceiling, or flown applications.

Connectivity is handled through a EUROBLOCK terminal system that supports both audio input and parallel linking, enabling efficient system integration in multi-speaker setups. With its combination of high SPL capability, controlled dispersion, and robust construction, the RCF COMPACT M 12 is designed for professional users who require consistent performance and installation versatility.

Features of Compact M 12

• 300 W RMS continuous power handling for strong output performance
• Maximum SPL up to 129 dB for high-impact sound delivery
• Wide 55 Hz – 20,000 Hz frequency response for full-range audio
• 90° x 70° rotatable constant directivity horn for flexible coverage
• 12-inch high-efficiency woofer for deep and powerful bass
• 1.4-inch compression driver for clear high-frequency reproduction
• High sensitivity design for efficient power utilization
• Robust plywood cabinet construction for durability and resonance control
• Steel front grille with internal cloth protection layer

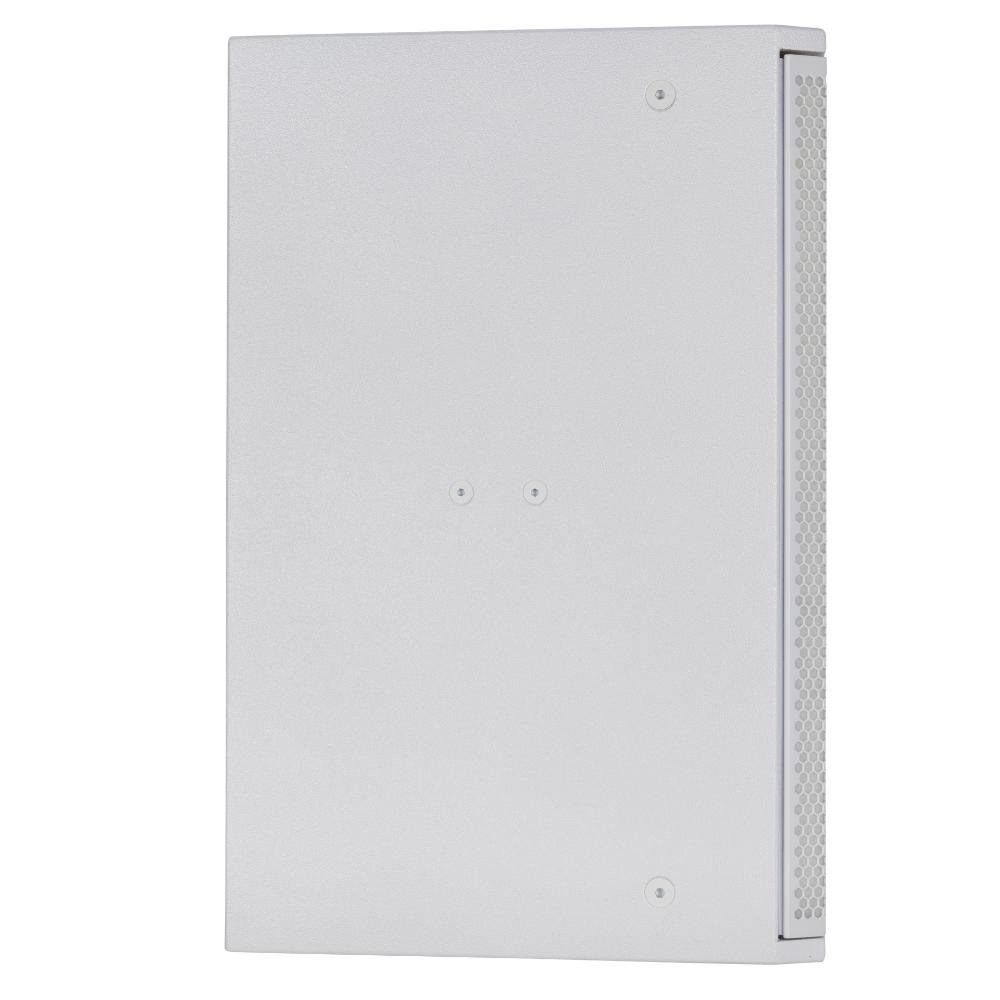

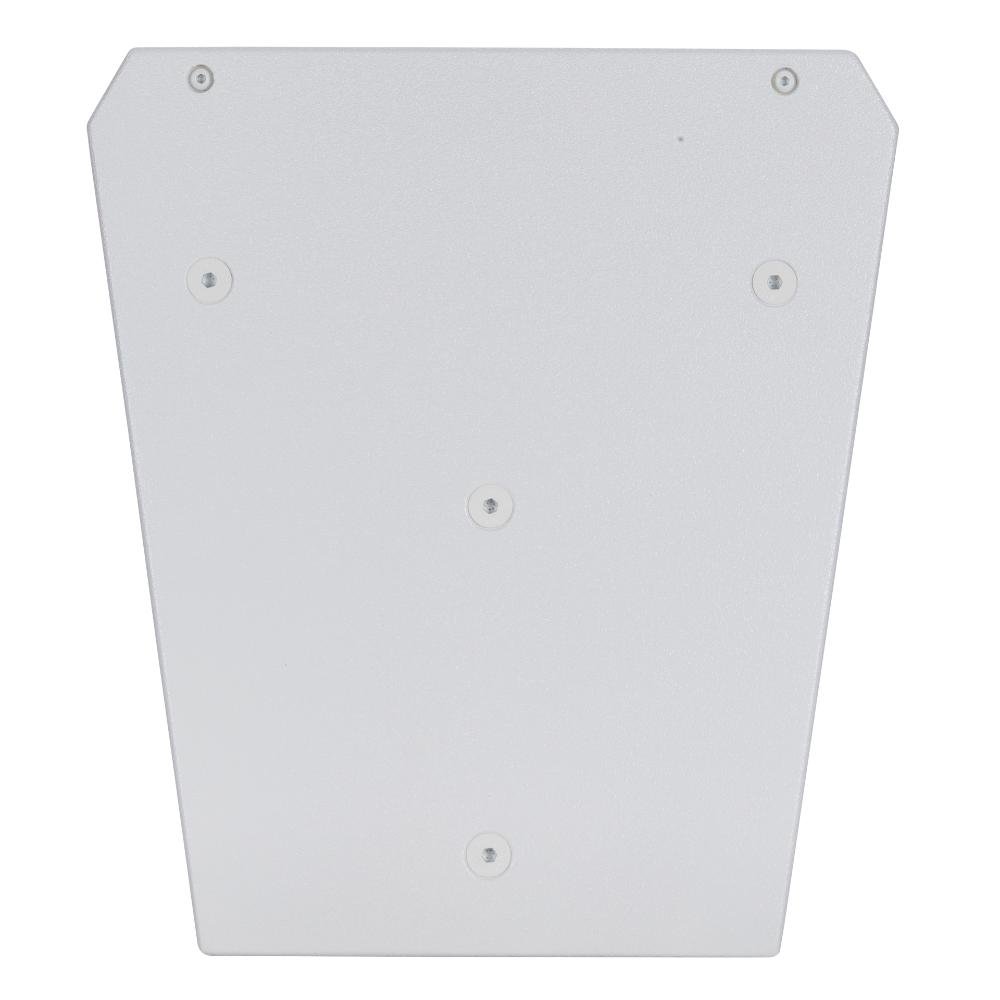

• Multiple installation mounting points on rear, top, and bottom panels

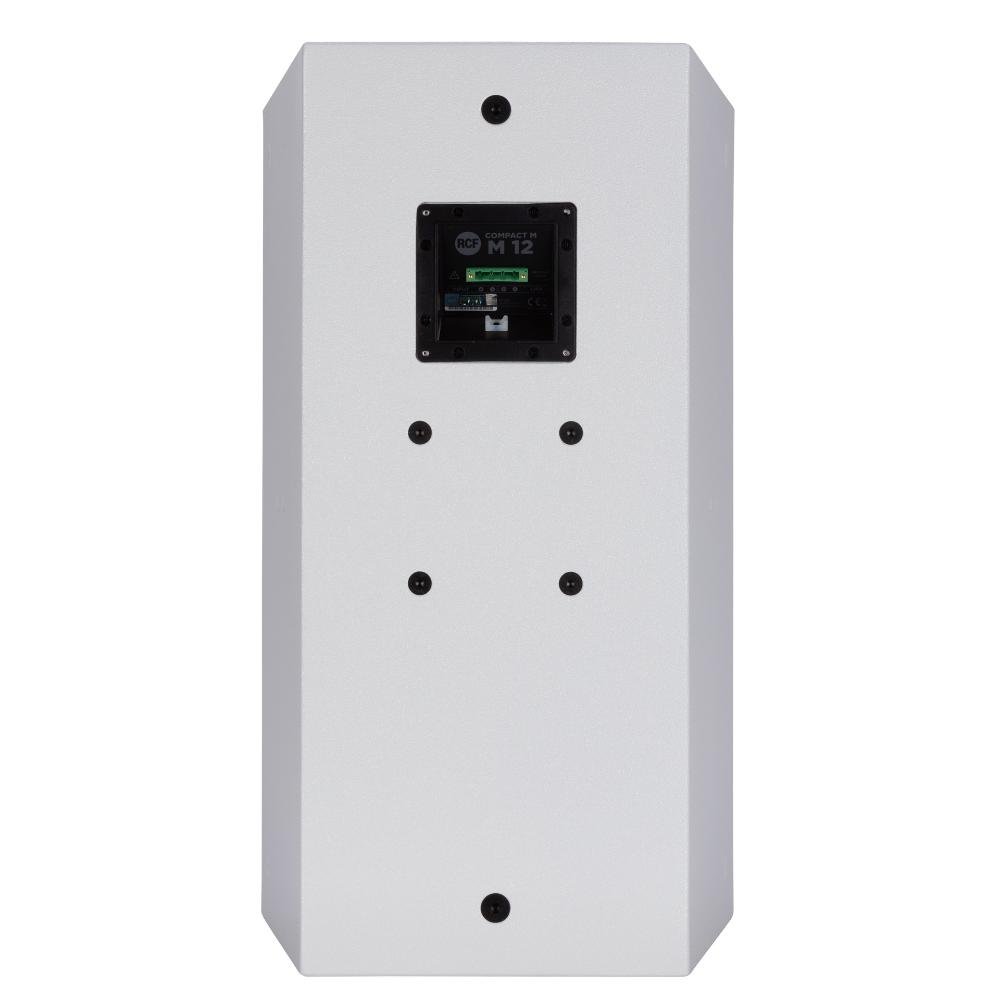

• EUROBLOCK connector system for input and link-through connection
• Suitable for fixed installation and portable professional use

Specifications of Compact M 12
