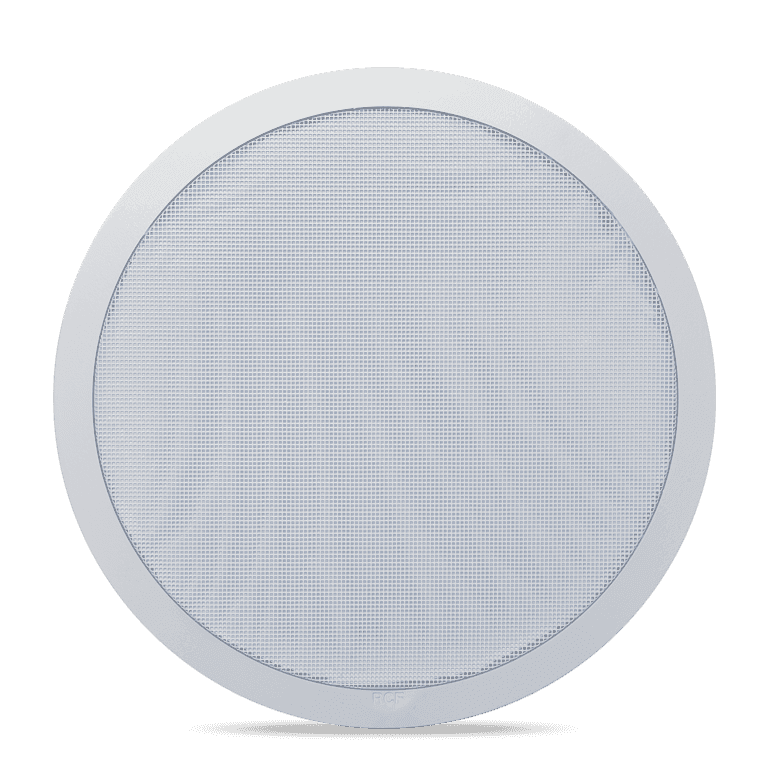

RCF MQ 50C W Two-Way Ceiling Speaker – White

RCF MQ 50C W Two-Way Ceiling Speaker – White

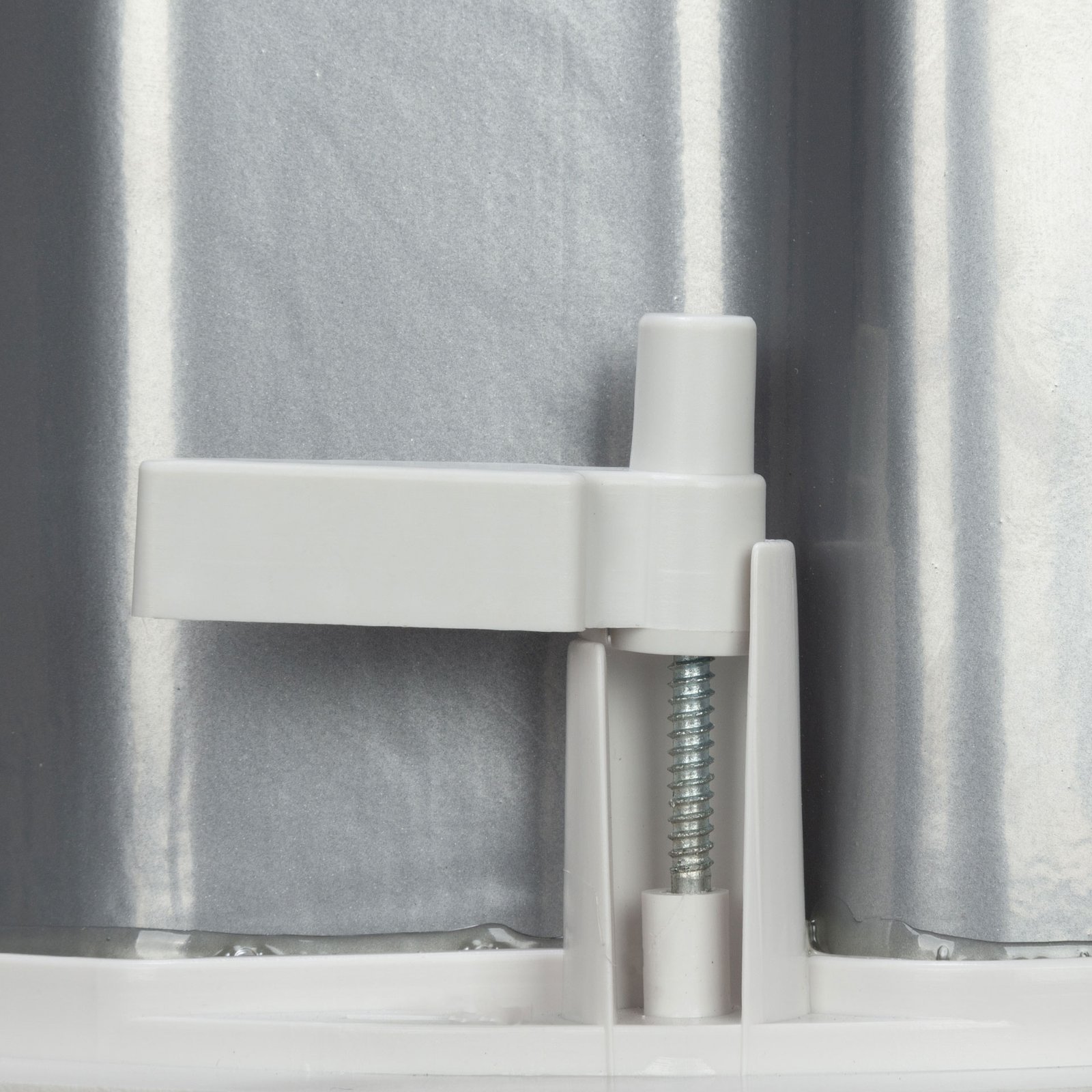

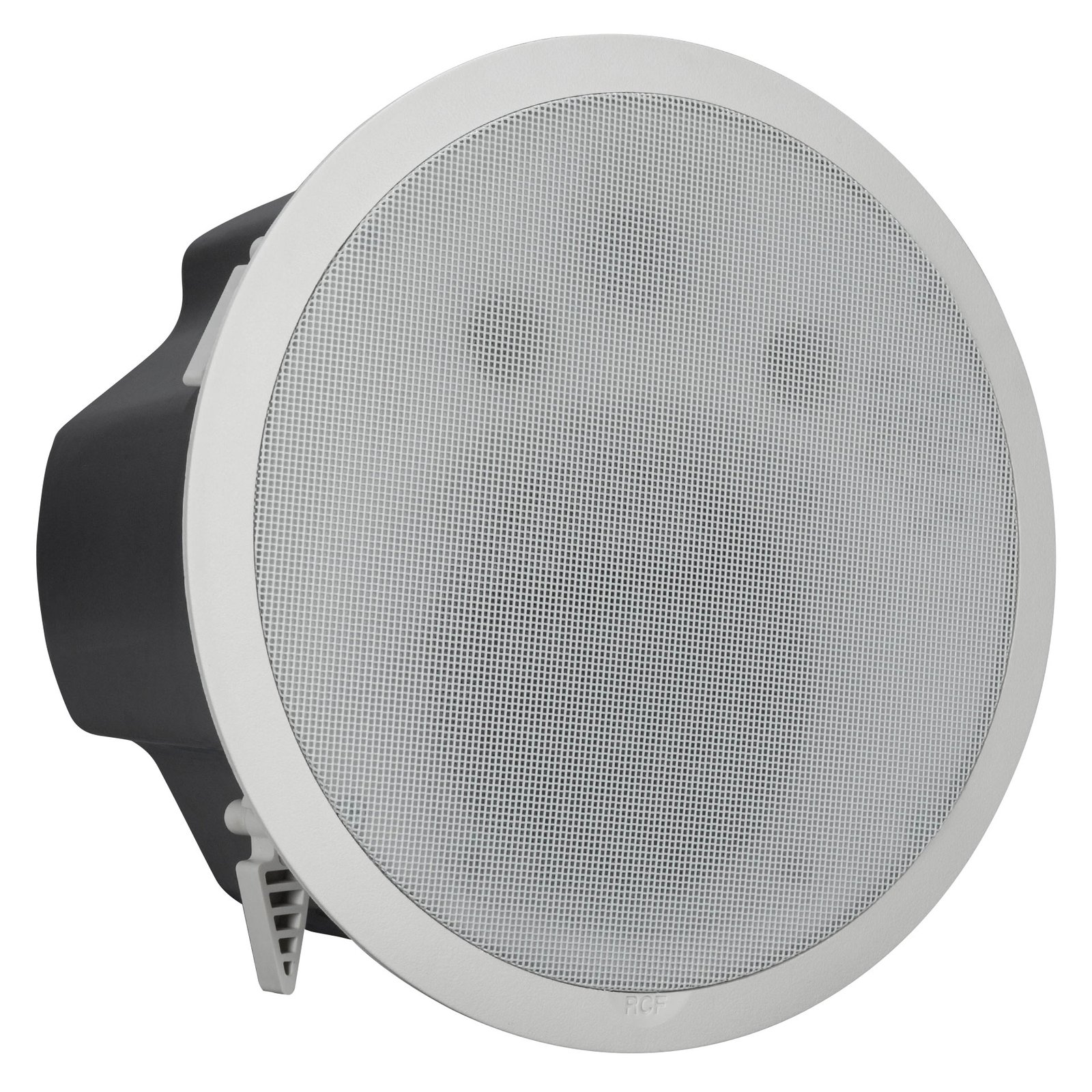

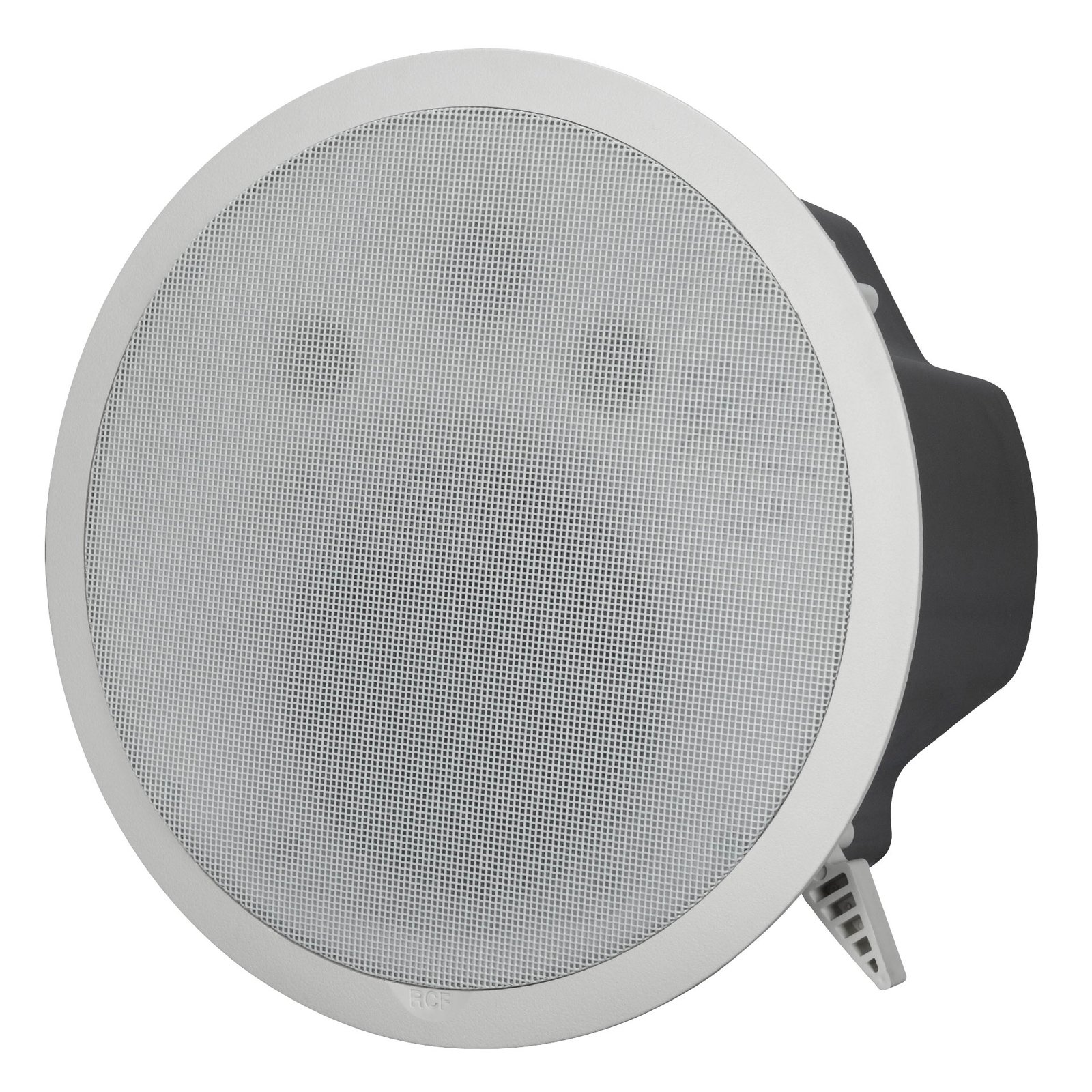

The RCF MQ 50C W is a white two-way ceiling loudspeaker with a five-inch woofer and dome tweeter. Its compact depth and rotating installation hooks support recessed mounting, while a selectable transformer provides the distributed audio interface.

The specified frequency response is 70 Hz – 20000 Hz. Rated power handling is 60 W. The nominal impedance is 16 ohm. Maximum sound pressure level at one metre is 112 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

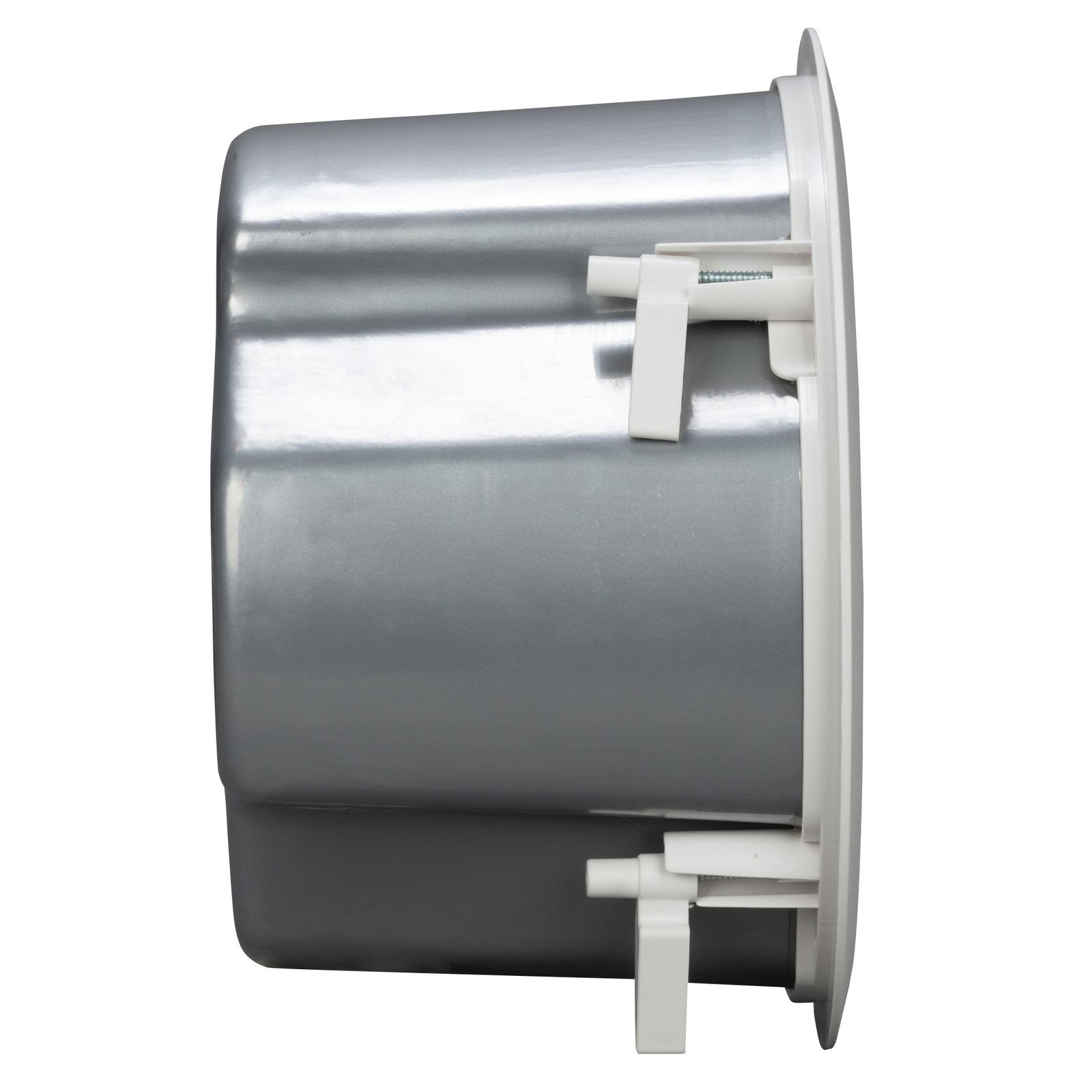

The physical specification lists depth 156 mm, diameter 266 mm, weight 2.1 kg. The enclosure material is Plastic. The specified finish is White – RAL 9016. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of MQ 50C W

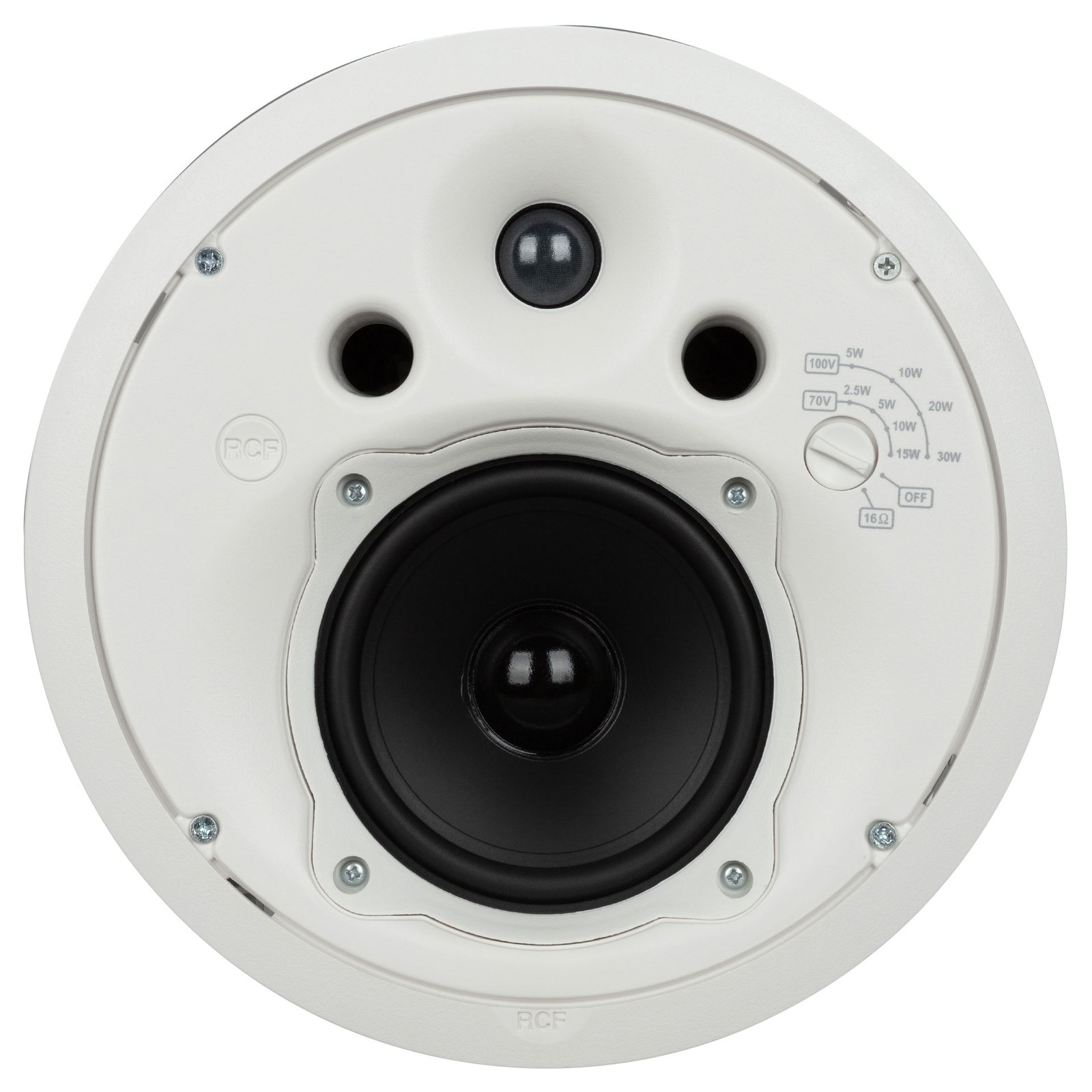

• 5″ woofer with 1″ dome tweeter

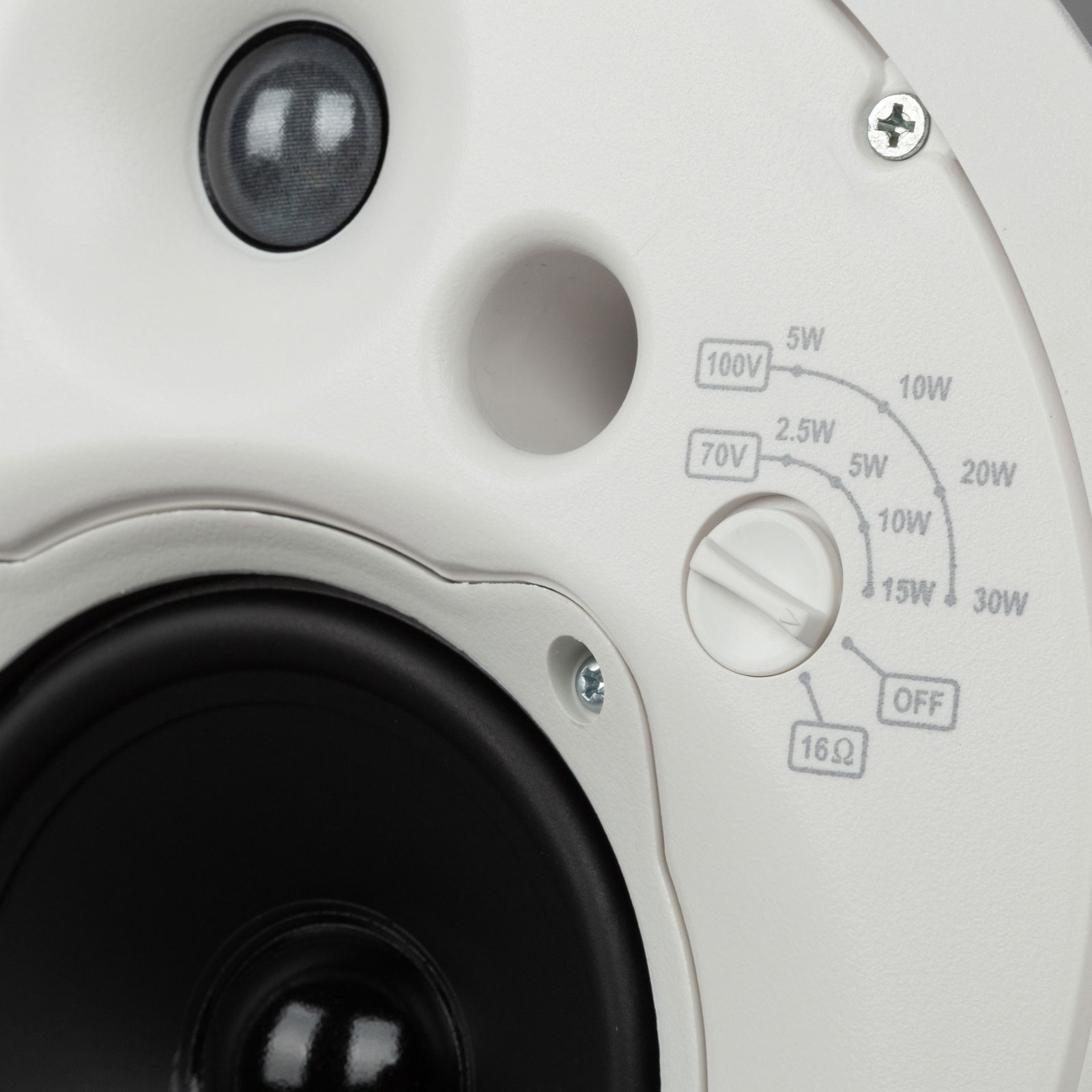

• Power selectable (100 V): 30 W – 20 W – 10 W – 5 W
• 91 dB sensitivity
• Colour White – RAL 9016

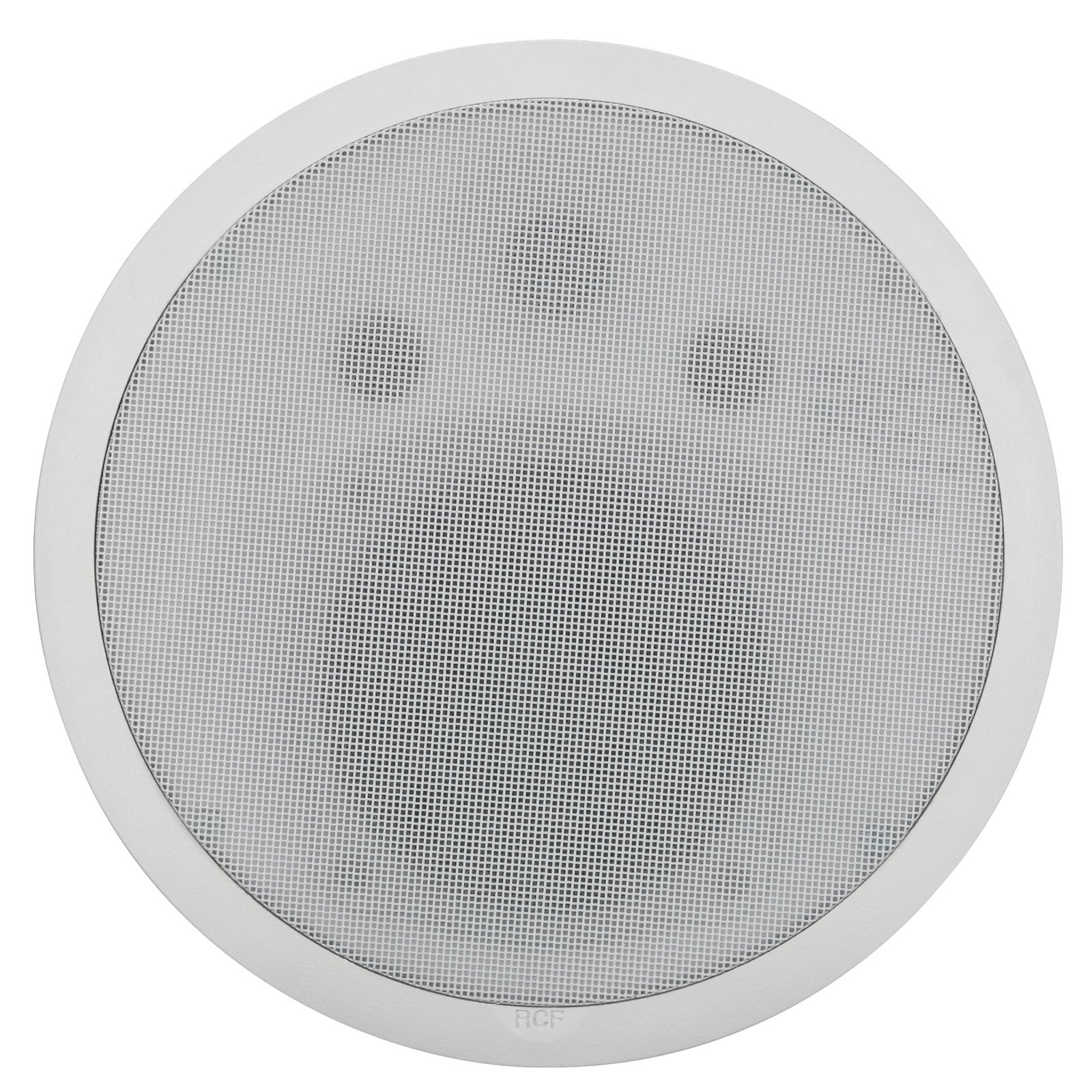

• Self-extinguishing plastic frame and back can, steel grille

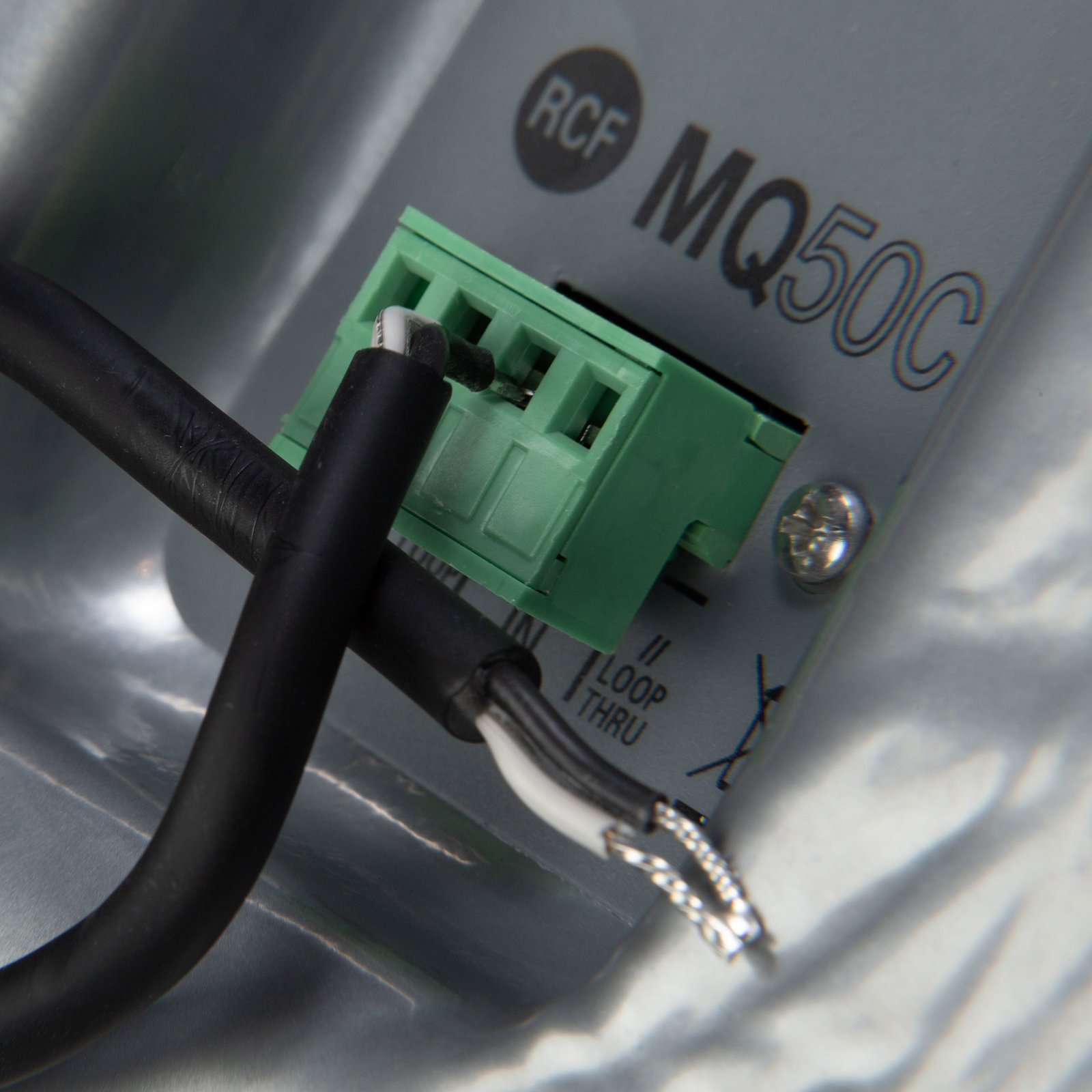

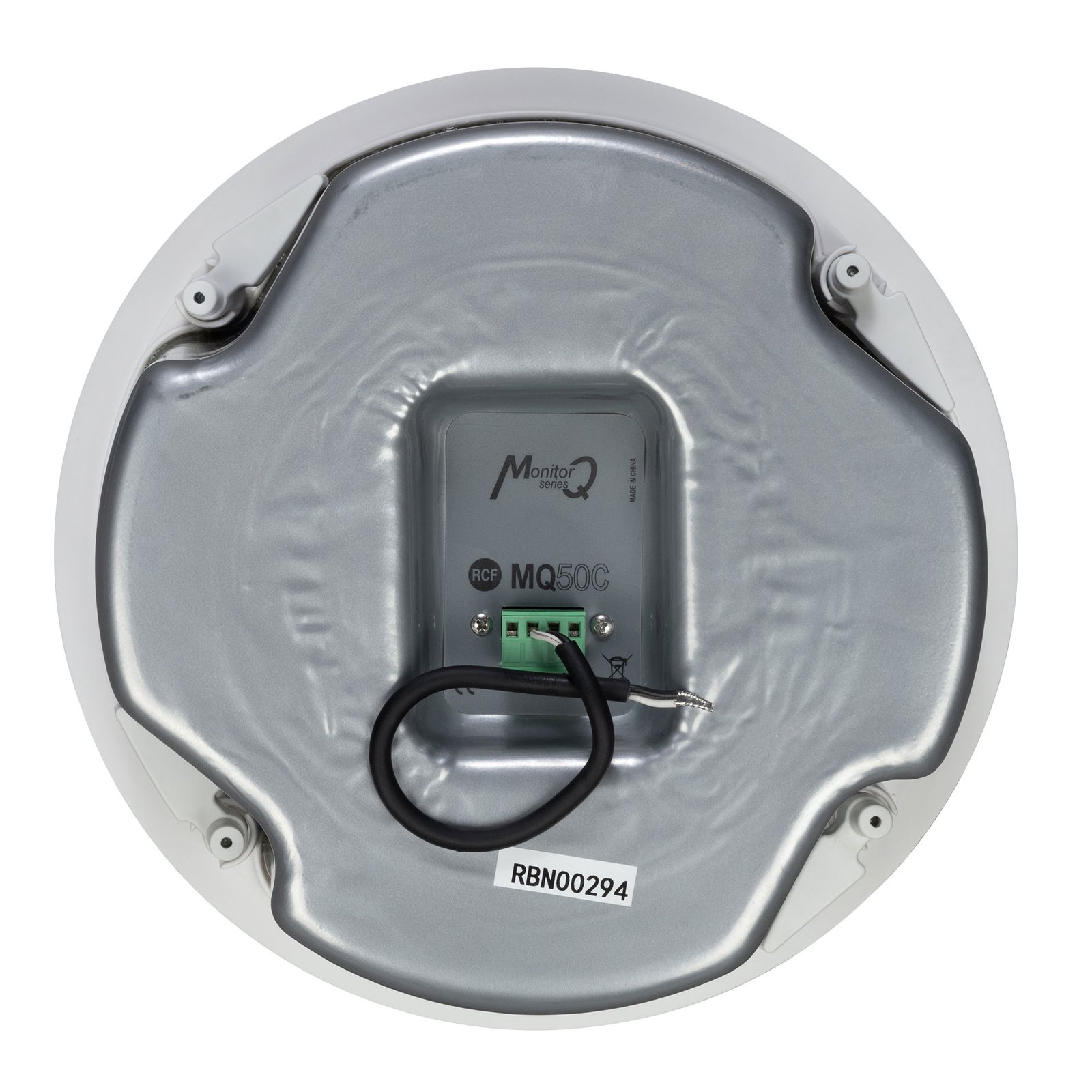

• In/out euroblock connectors

Specifications of MQ 50C W
