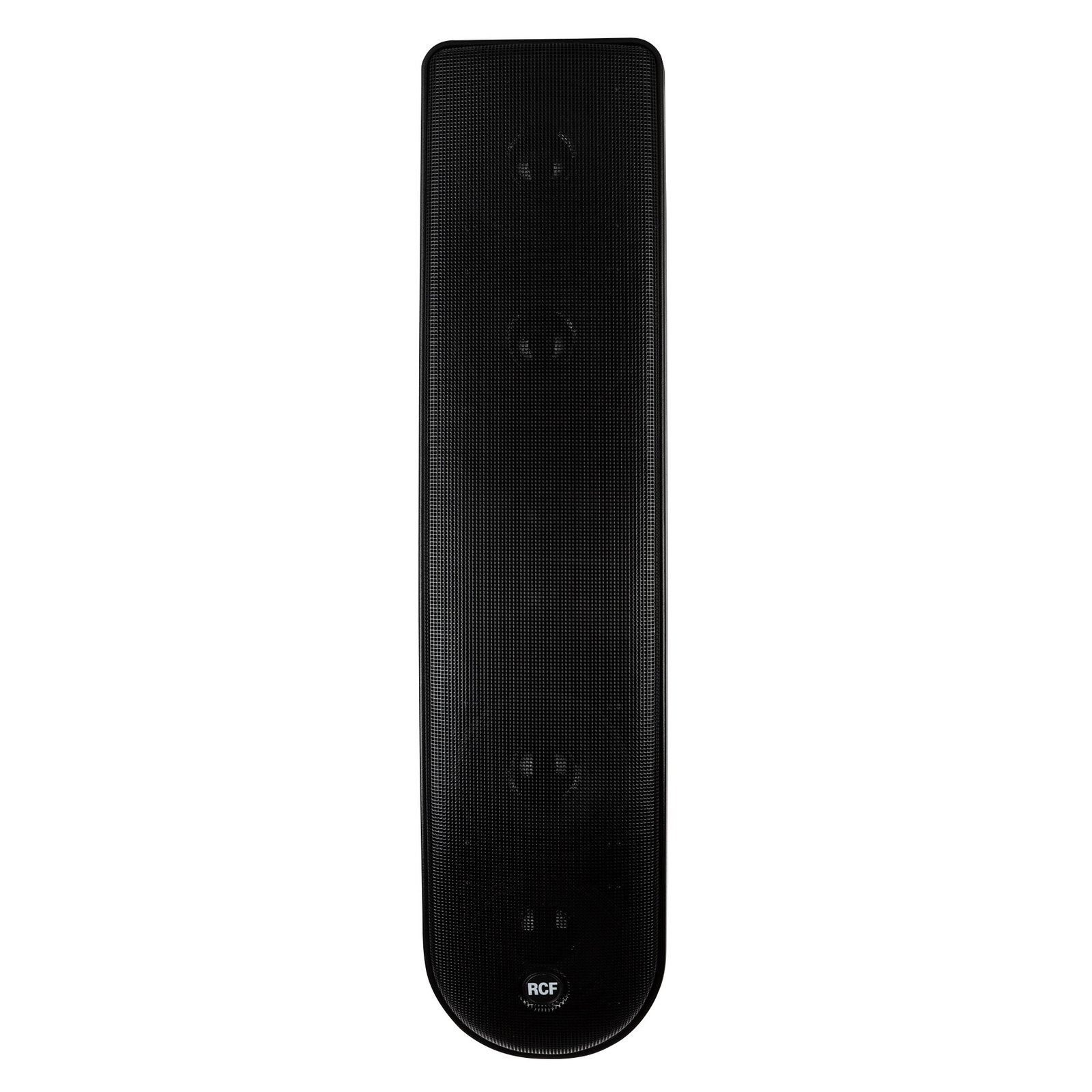

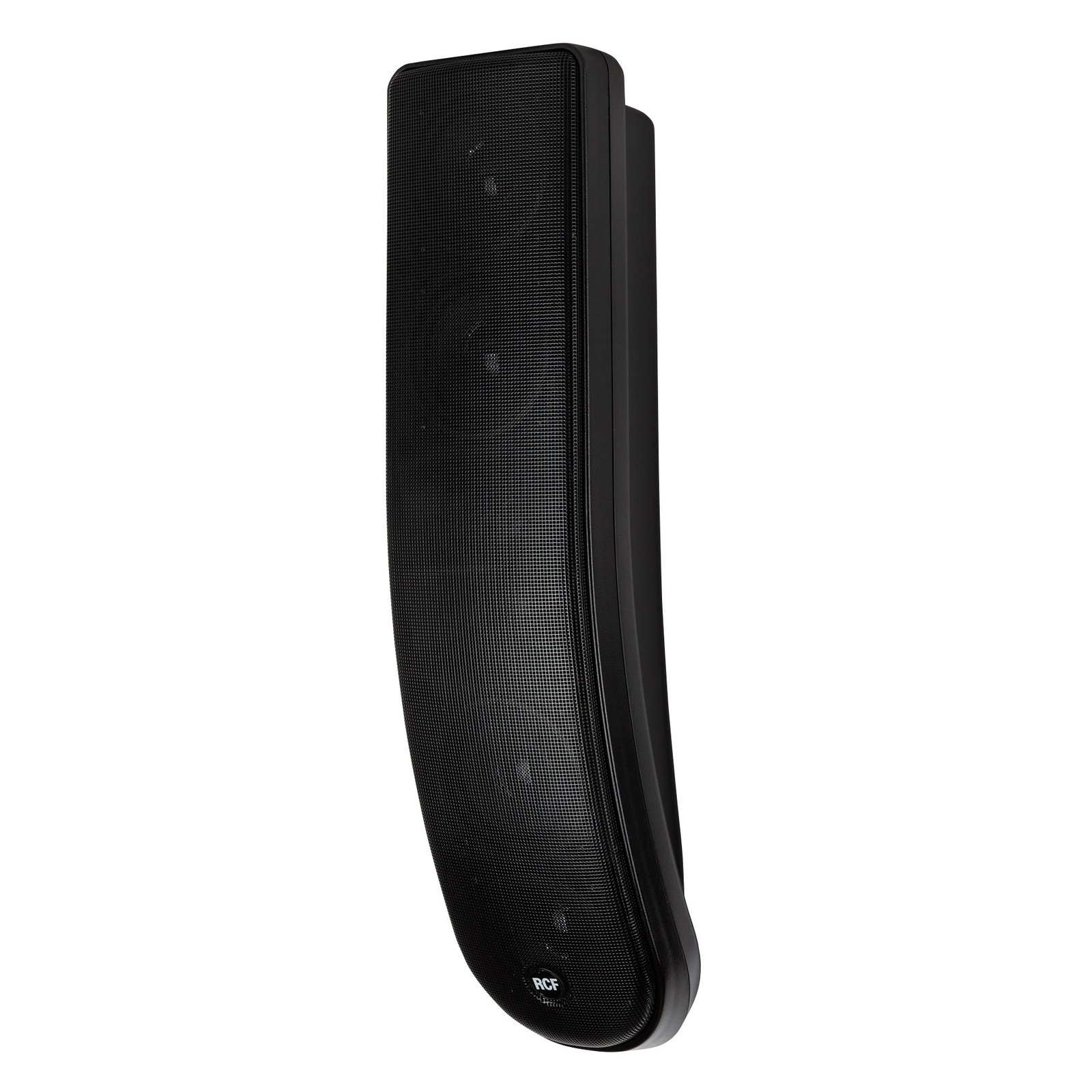

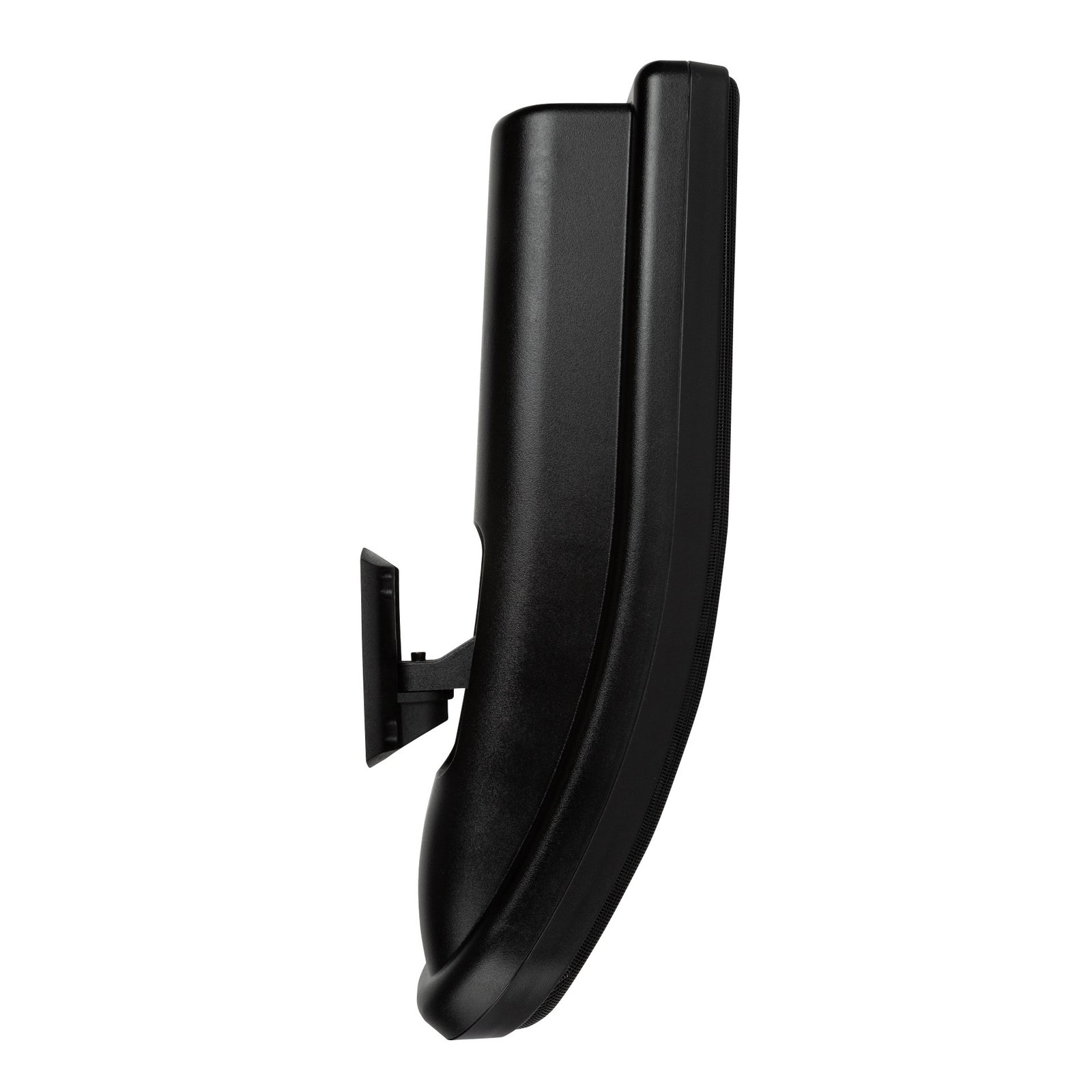

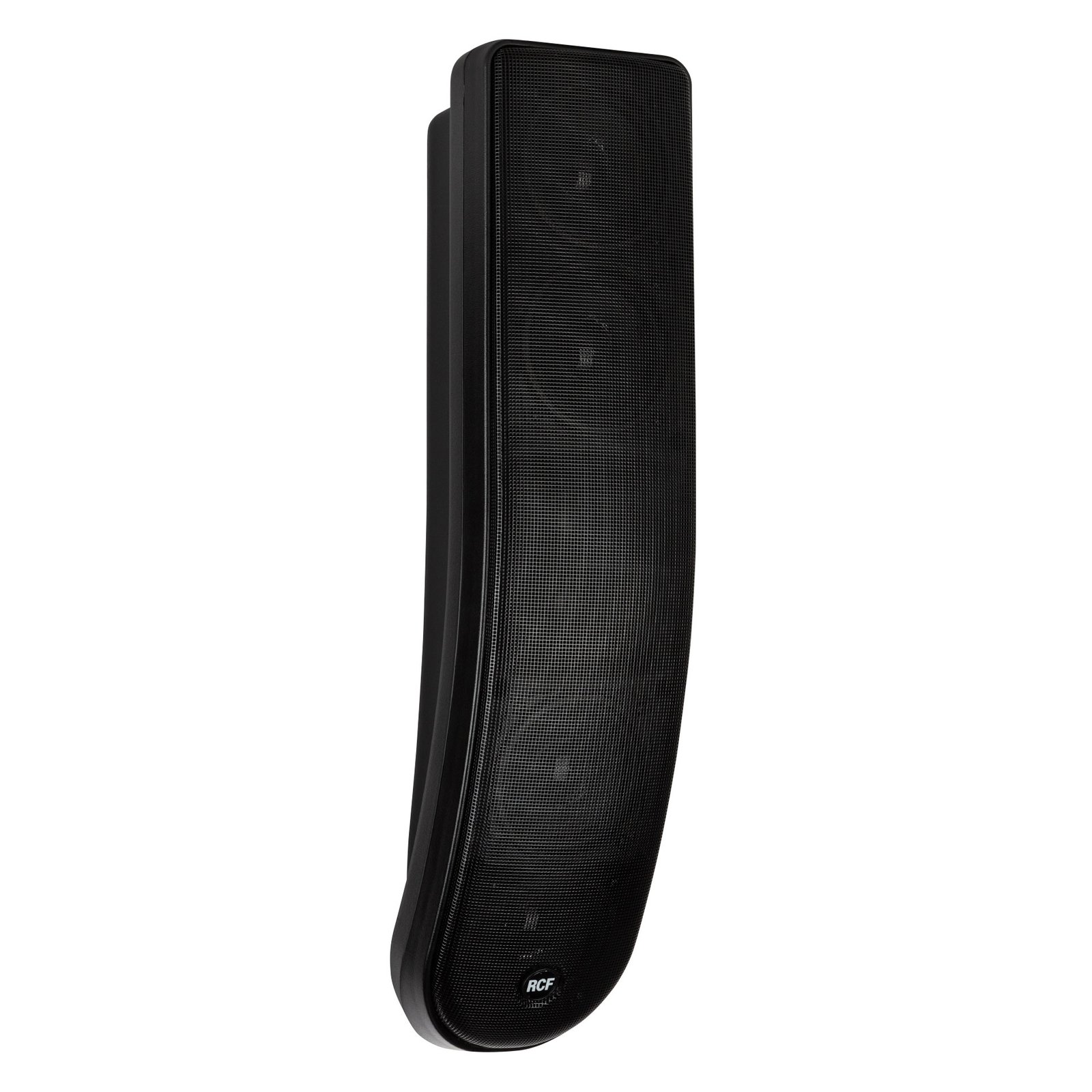

RCF MQ 100L B Three-Way Column Speaker – Black

RCF MQ 100L B Three-Way Column Speaker – Black

The RCF MQ 100L B is a black three-way column loudspeaker intended for natural speech and music reproduction. Separate low-, mid- and high-frequency transducers are arranged in a compact column enclosure, with transformer selection for distributed sound installation.

The specified frequency response is 130 Hz – 20000 Hz. Rated power handling is 80 W. The nominal impedance is 16 ohm. Maximum sound pressure level at one metre is 112 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 500 mm, width 120 mm, depth 167 mm, weight 2.73 kg. The enclosure material is Plastic. The specified finish is Black – RAL 9005. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

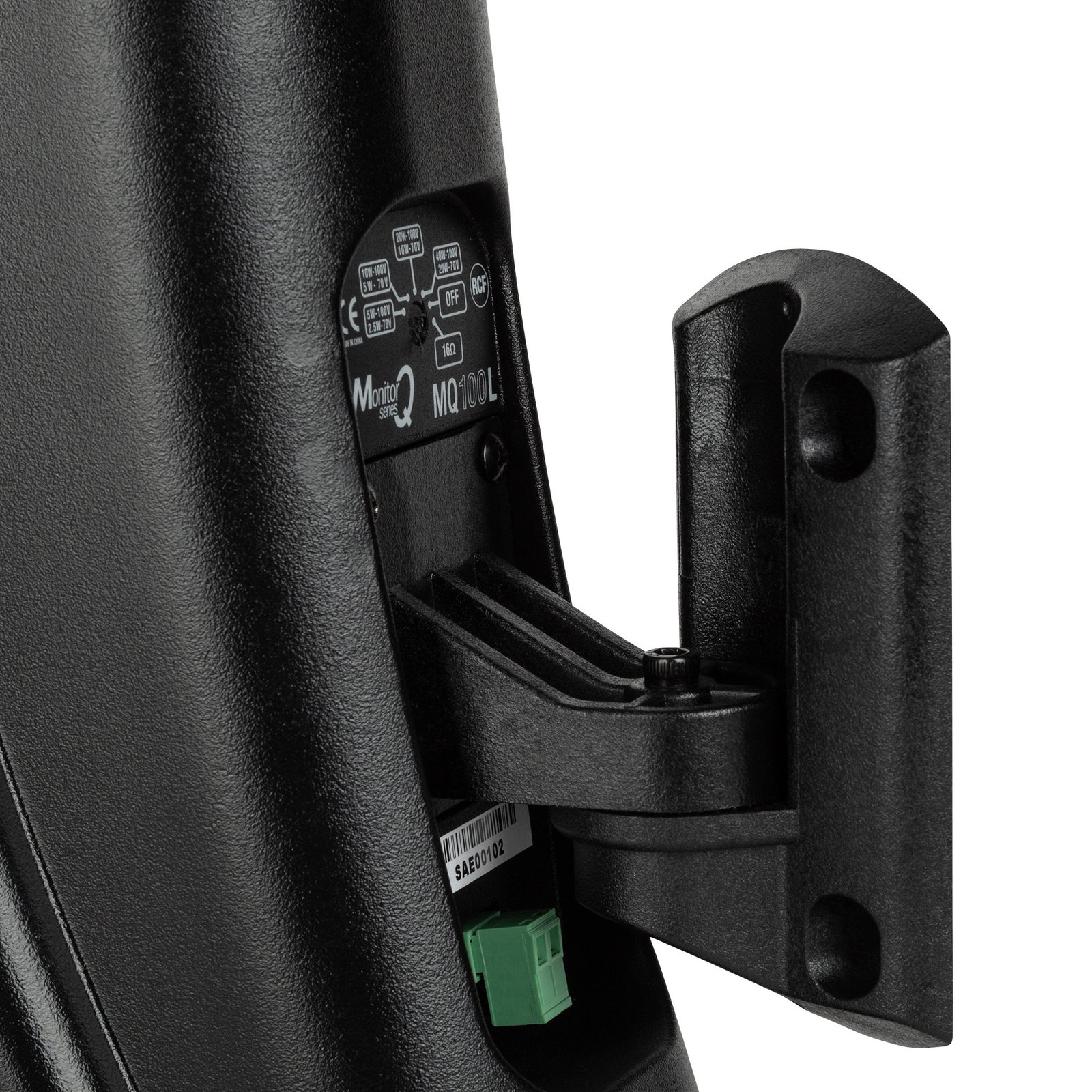

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of MQ 100L B

• 2 x 3.5″ woofer, 2 x 3.5 midrange and 2 x 0.75 dome tweeter
• Power selectable (100 V): 40 W – 20 W – 10 W – 5 W
• 93 dB sensitivity
• Colour Black – RAL 9005
• Plastic body, steel grille

Specifications of MQ 100L B
