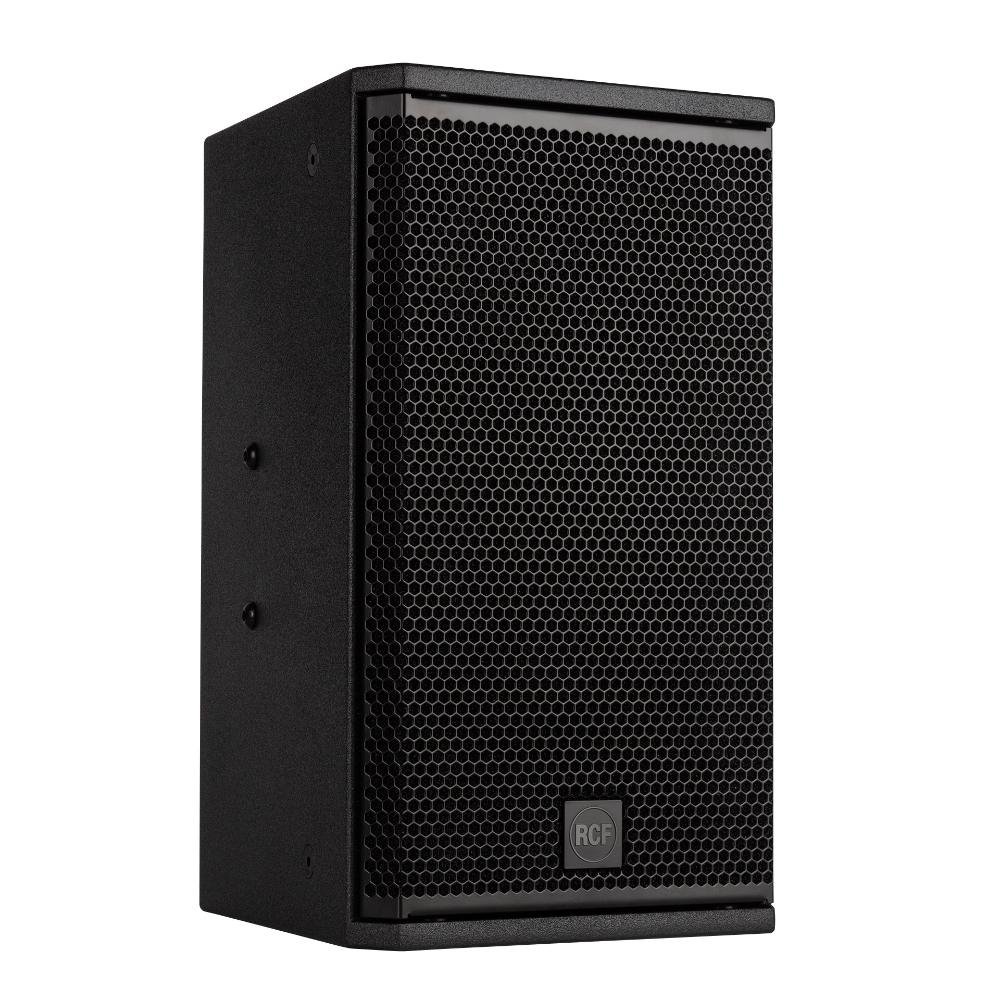

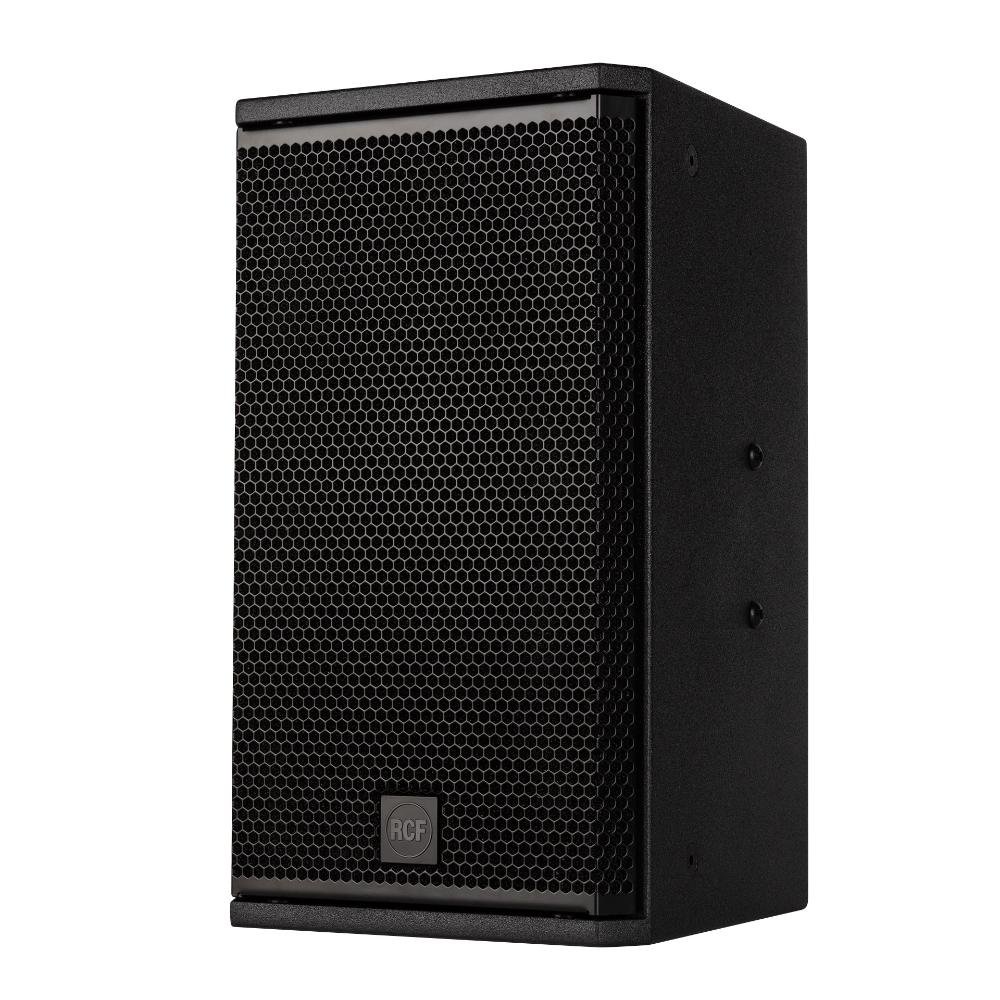

RCF X MAX 10 10″ 2-Way High-Powered Loudspeaker

RCF X-MAX 10 Two-Way Passive Loudspeaker System

The RCF X-MAX 10 is a professional full-range passive loudspeaker engineered for high-quality near-field and club sound reinforcement applications. It is designed to deliver strong output, precise vocal clarity, and stable tonal balance even at high sound pressure levels, making it suitable for entertainment venues and fixed installations.

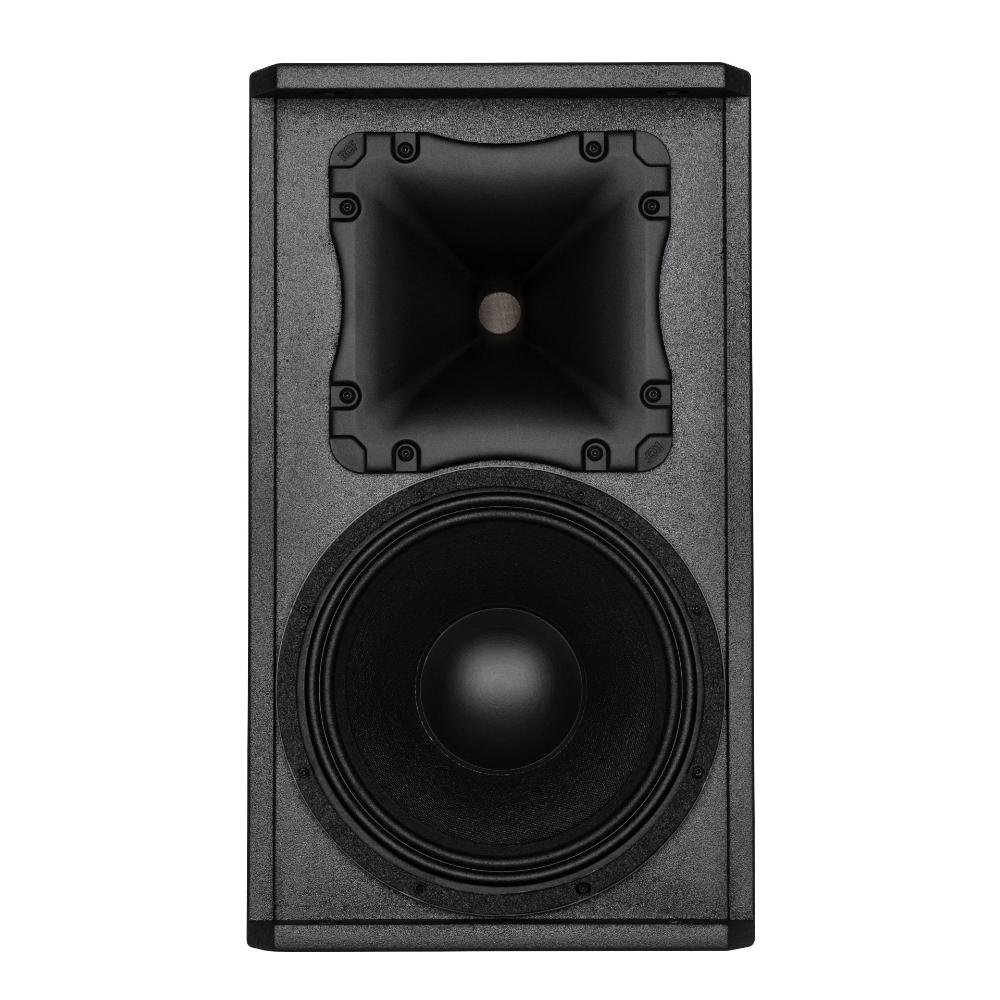

The system features a 10-inch high-power woofer for controlled low-frequency response and a 1-inch compression driver with a 1.4-inch voice coil for detailed high-frequency reproduction. This combination ensures accurate sound projection with excellent clarity and consistency across the full frequency range.

With a maximum SPL of up to 128 dB and a frequency response from 65 Hz to 20 kHz, the X-MAX 10 provides full-range performance suitable for small to medium venues. Its rotatable 90° × 70° constant directivity horn allows flexible horizontal or vertical installation, ensuring optimal coverage in different architectural environments.

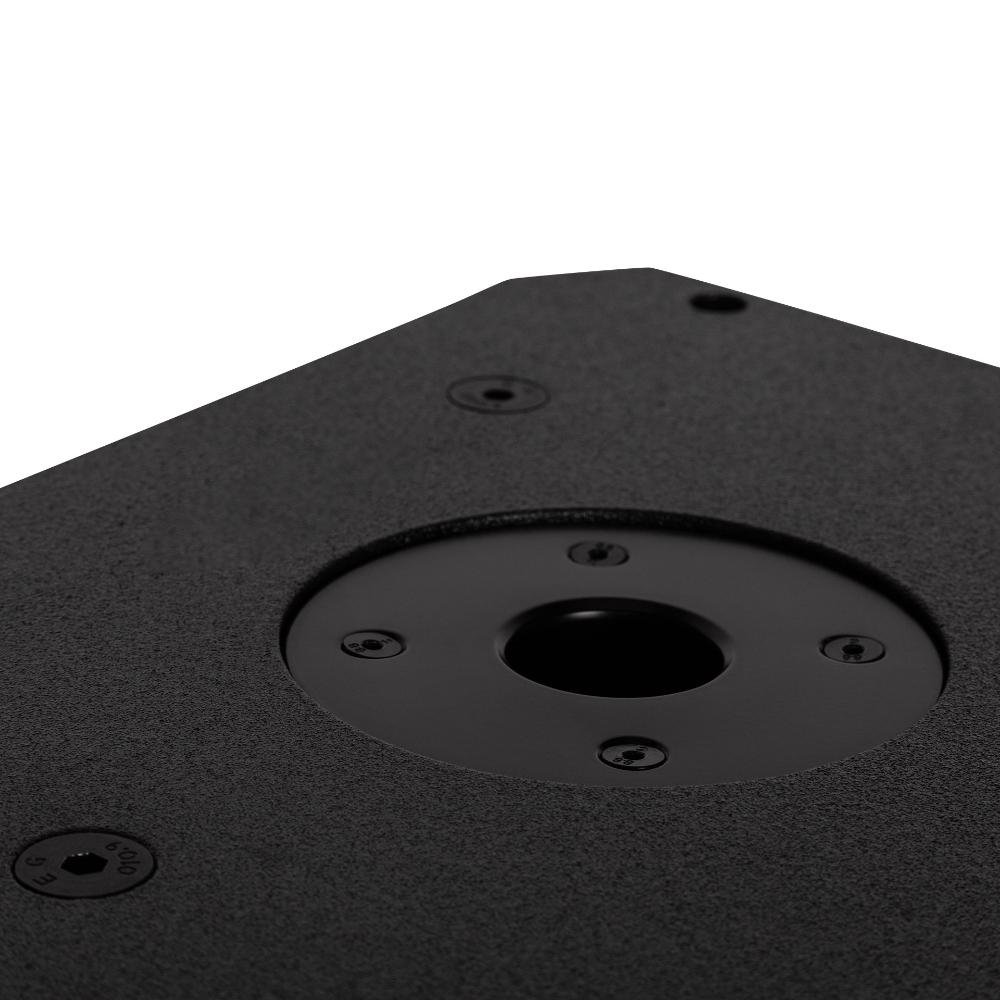

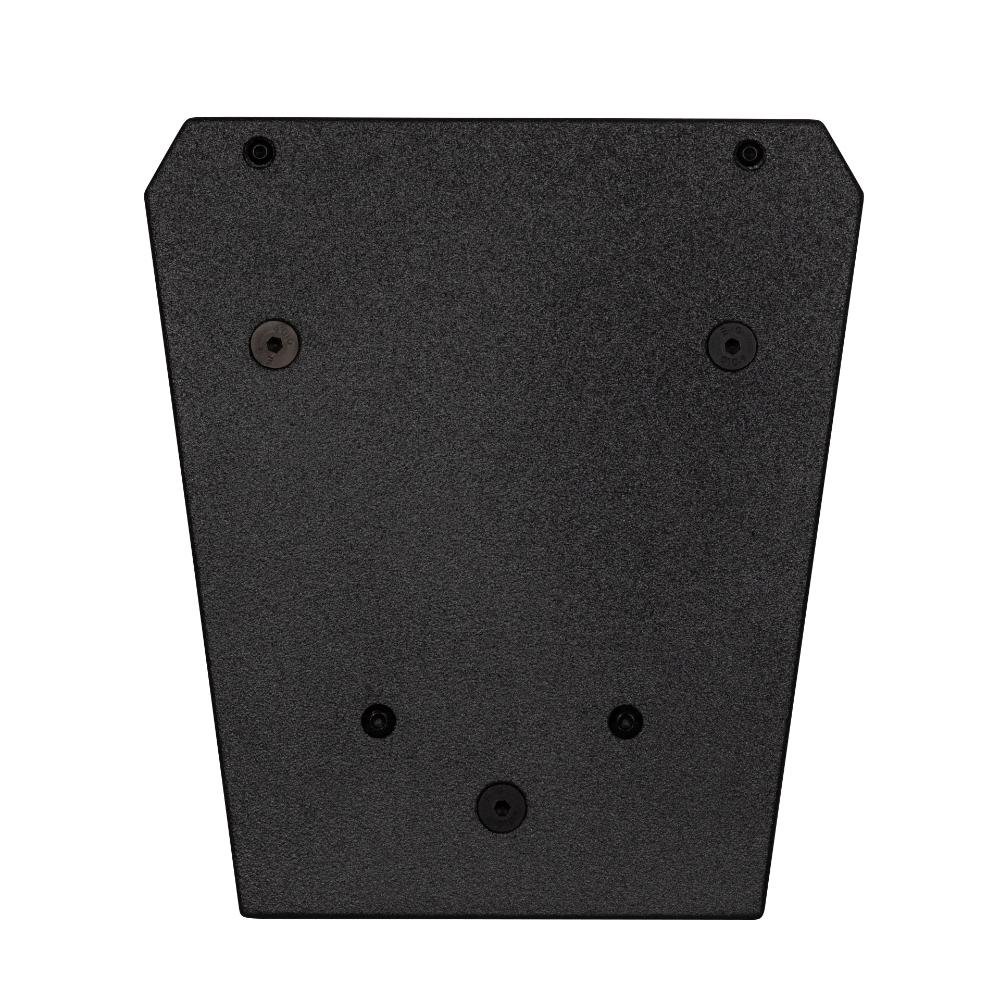

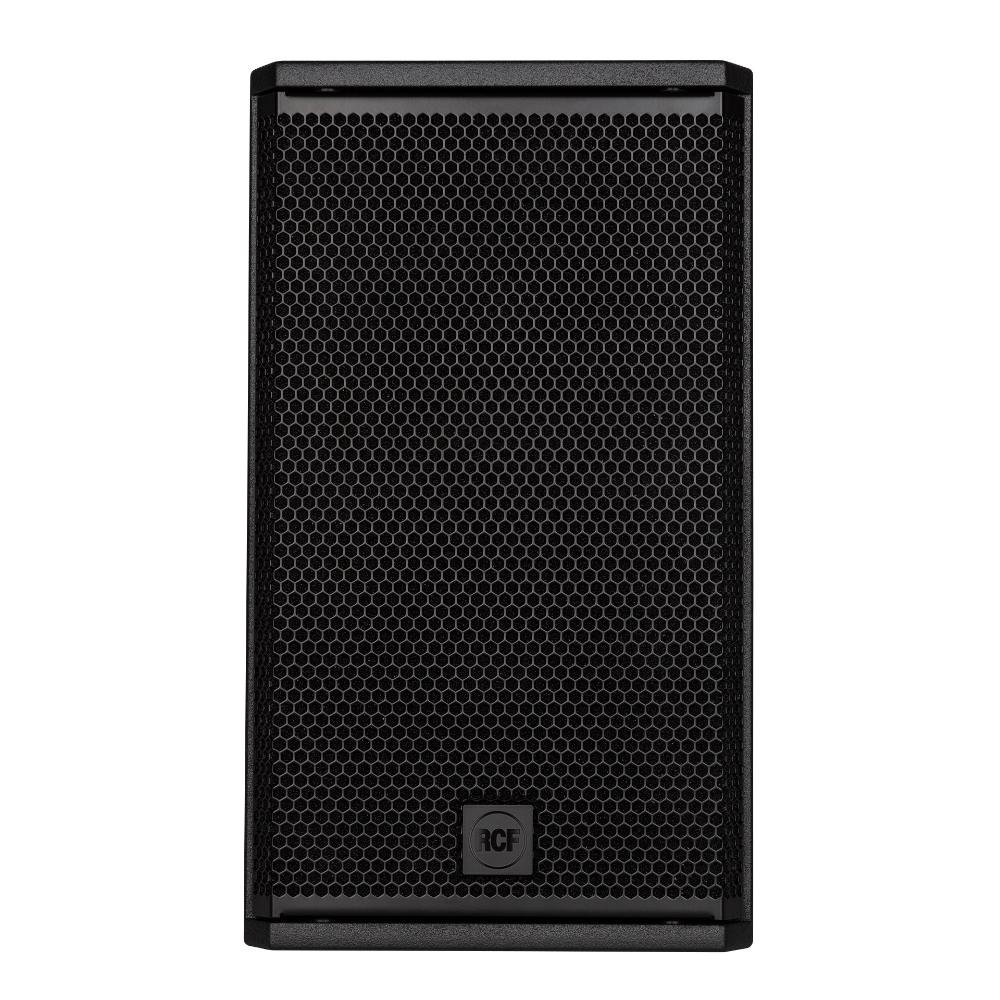

The enclosure is built from durable plywood with a black textured acrylic coating for long-term durability. A heavy-duty steel grille with internal acoustic protection safeguards the drivers from dust and damage. The system includes a custom LICC crossover design with built-in high-frequency protection for reliable operation. Multiple M8 and M10 rigging points, along with a 35 mm pole mount, provide flexible installation options. The RCF X-MAX 10 is ideal for clubs, karaoke spaces, AV installations, and professional fixed sound systems.

Features of X-MAX 10

• 128 dB maximum SPL output
• 700 W program power handling capacity
• Wide frequency response from 65 Hz to 20 kHz
• 90° × 70° constant directivity horn coverage
• 10-inch high-power woofer
• 1-inch compression driver with 1.4″ voice coil
• Passive two-way loudspeaker design
• Rotatable horn for flexible installation orientation
• High-quality plywood cabinet construction
• Durable black textured acrylic finish
• Steel protective grille with internal acoustic layer
• LICC crossover with high-frequency protection

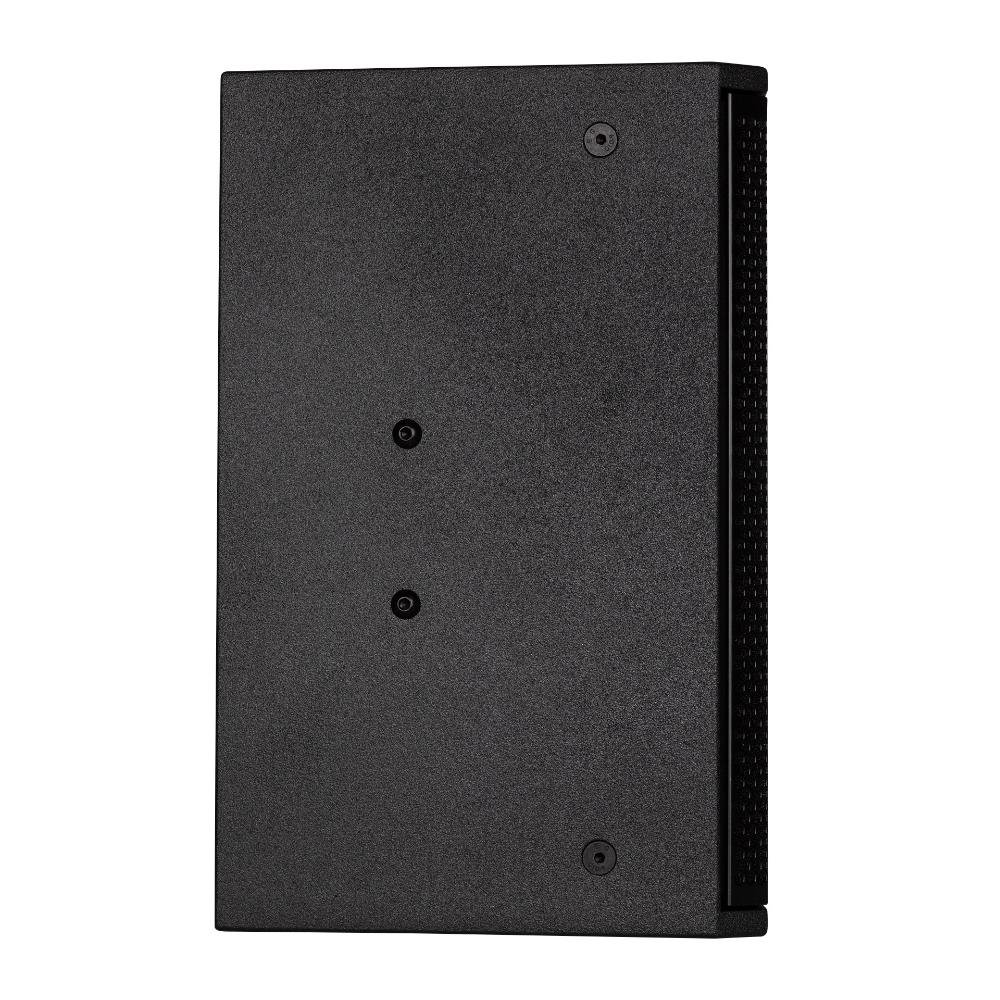

• Multiple rigging and installation points
• Suitable for vertical and horizontal mounting
• Designed for club and installation environments

Specifications of X-MAX 10
