Soundcraft EPM8 Analog Mixer (EU)

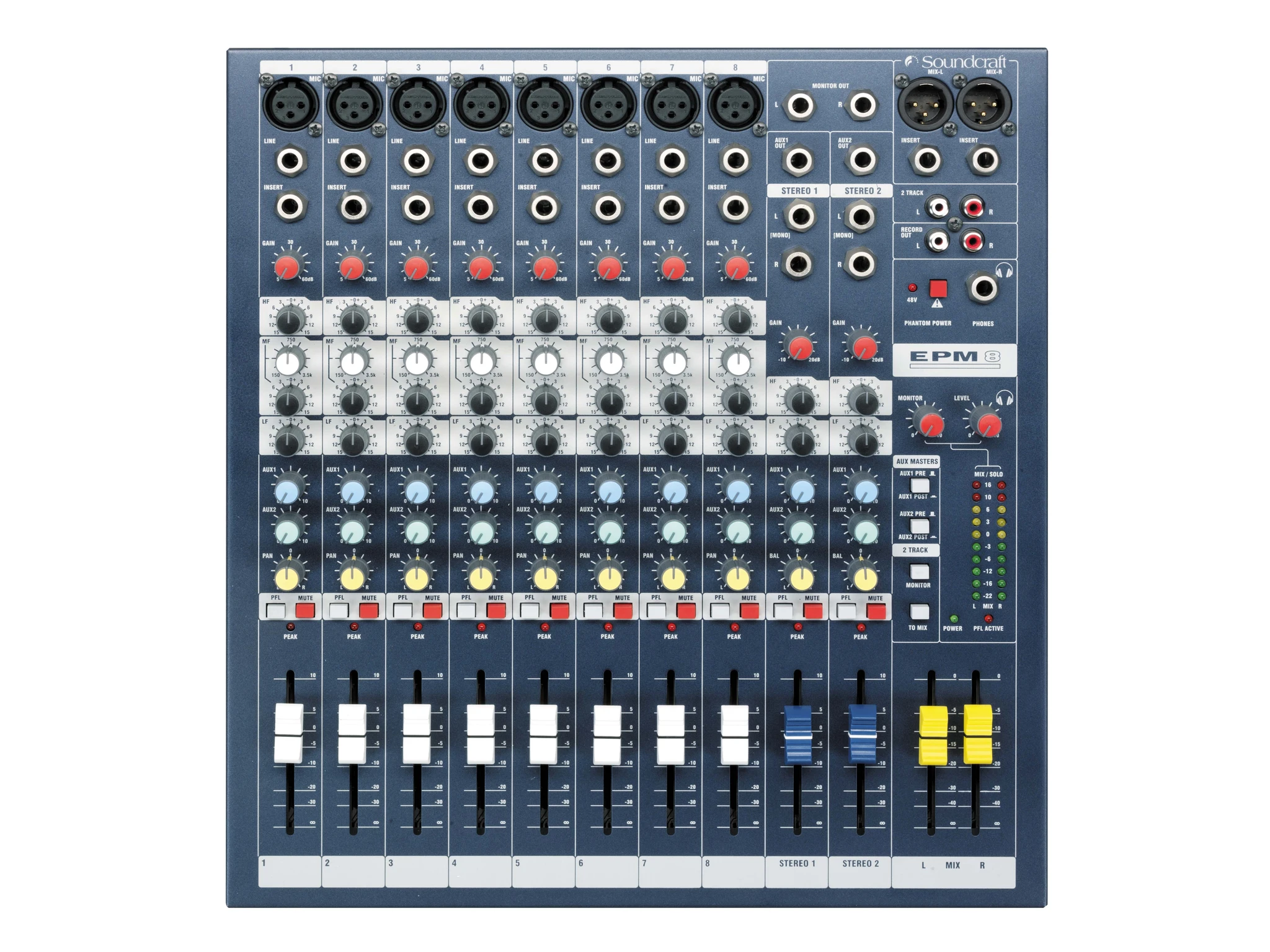

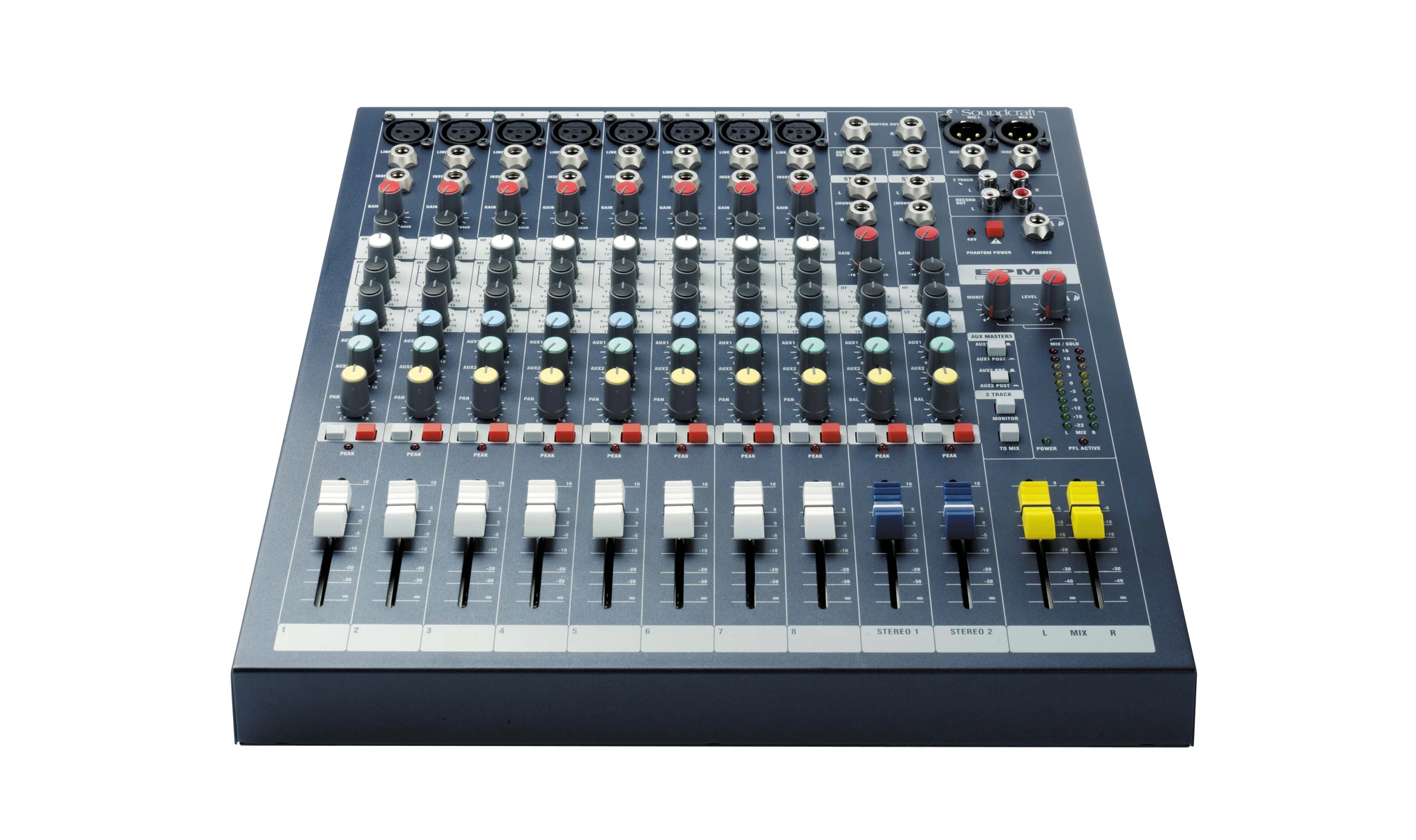

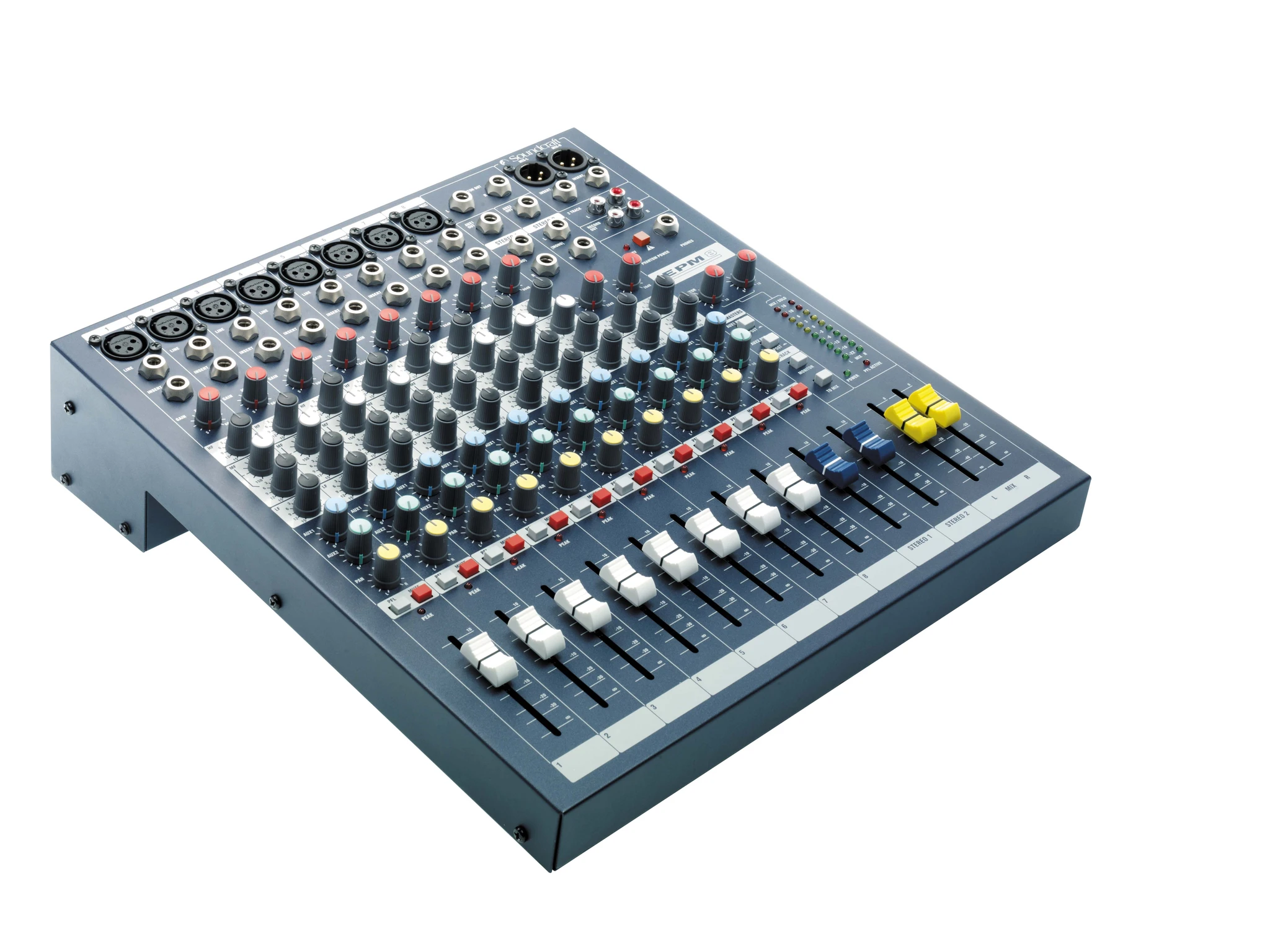

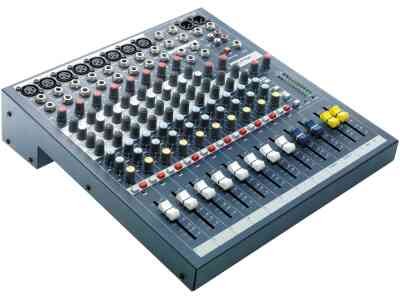

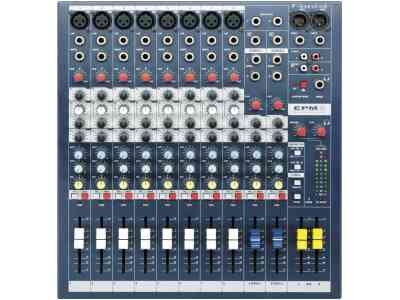

Soundcraft EPM8 Analog Mixer

The Soundcraft EPM8 Analog Mixer is an affordable professional mixing console designed to deliver high-quality audio performance without unnecessary complexity. Built for musicians, sound engineers, recording studios, houses of worship, theatres, and commercial installations, the EPM8 combines reliable construction with an intuitive control layout that enables efficient operation in both live and studio environments. Its streamlined design focuses on essential mixing functions while maintaining the professional standards expected from Soundcraft.

The mixer is equipped with Soundcraft’s renowned GB30 microphone preamps, engineered by Graham Blyth to provide exceptionally transparent sound reproduction across a wide 55 dB gain range. These preamps offer excellent signal clarity and an impressive +22 dB of headroom, allowing vocals and instruments to be reproduced accurately with minimal distortion. Professional 48-volt phantom power supports condenser microphones, making the EPM8 suitable for a wide variety of recording and reinforcement applications.

Manufactured using precision surface-mount technology and close-tolerance electronic components, the EPM8 delivers consistent equalization performance and reliable long-term operation. Mono input channels feature a versatile three-band equalizer with a sweepable mid-frequency control for detailed tonal adjustment, while stereo channels include a dedicated two-band EQ for quick sound shaping. The integrated multi-point PEAK LED monitoring system continuously observes signal levels throughout the channel path, providing early overload indication for improved signal management.

Additional professional features include two configurable auxiliary buses, TRS insert connections on all mono channels and the main mix output, smooth 60 mm channel faders, comprehensive solo monitoring, parallel monitor and headphone outputs, and ten-segment LED output metering for accurate level indication. Designed for dependable operation across multiple professional audio environments, the Soundcraft EPM8 Analog Mixer offers outstanding performance, flexible connectivity, and intuitive control in a compact, rack-mountable format.

Features of EPM8

• Professional 8-channel analog mixer
• High-performance GB30 microphone preamps
• Transparent low-noise audio quality
• 55 dB microphone gain range
• +22 dB headroom
• 48V phantom power support
• Precision surface-mount circuitry
• Three-band EQ on mono channels
• Sweepable mid-frequency equalizer
• Two-band EQ on stereo channels
• Two configurable auxiliary buses
• Multi-point PEAK LED monitoring
• Smooth 60 mm channel faders
• TRS insert sockets on mono channels
• Main mix insert connection
• XLR microphone inputs
• 1/4-inch metal jack connectors
• RCA stereo playback inputs
• RCA record outputs
• Ten-segment LED output metering
• Comprehensive solo monitoring
• Parallel headphone and monitor outputs
• Rack-mountable design
• Suitable for live sound and recording

Specifications of EPM8
