Description

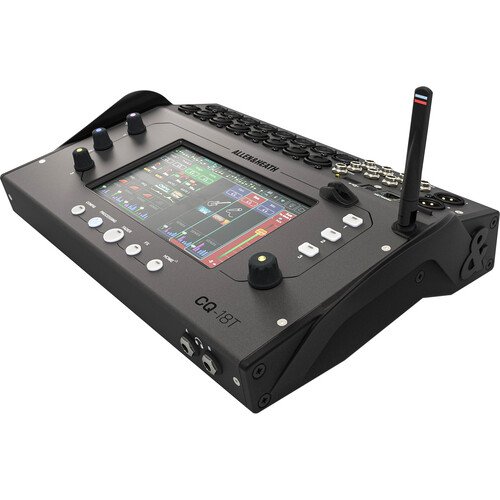

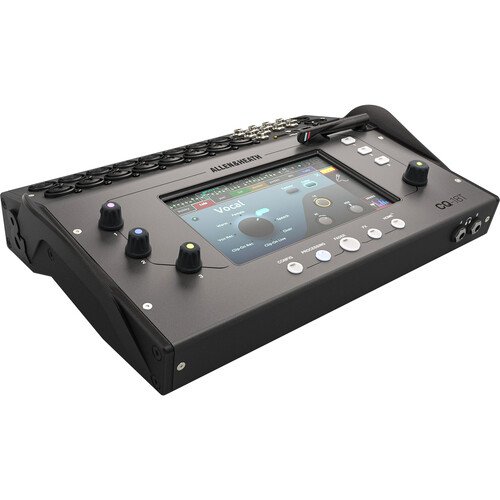

Allen & Heath CQ-18T Digital Mixer
The Allen & Heath CQ-18T is the flagship desktop mixer in the CQ series, designed for gigging musicians, rehearsal spaces, content creators, live streaming, corporate AV, speech reinforcement, and home recording applications. Combining professional audio quality with intelligent workflow enhancements, the CQ-18T delivers advanced digital mixing capabilities in a compact and portable format.
Built around a high-resolution 96kHz audio engine, the mixer incorporates studio-grade processing, high-quality effects, and innovative assistive mixing tools that simplify setup and operation. Users can choose between Quick Channels for rapid application-specific processing or Complete Channels for detailed parameter control and advanced sound shaping.
The integrated Gain Assistant automatically sets and continuously monitors input gain levels, helping users achieve optimal signal levels while preventing clipping and unexpected peaks. Feedback Assistant further improves reliability by automatically detecting and suppressing feedback frequencies with up to 16 filters per output.
The CQ-18T includes four stereo FX engines featuring reverb, delay, and modulation effects optimized for live and studio environments. Built-in Automatic Mic Mixing enhances speech clarity and reduces background noise, making the mixer ideal for conferences, podcasts, panel discussions, and presentations.

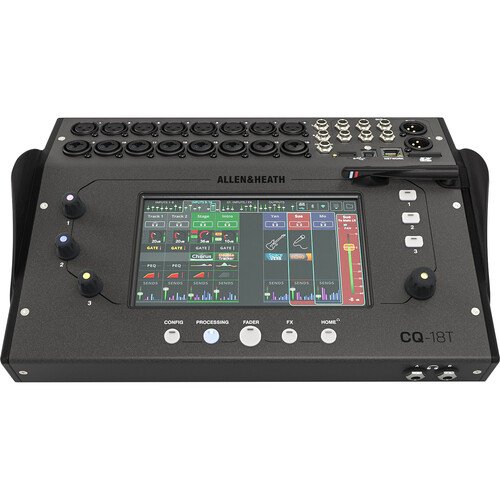

A 7-inch capacitive touchscreen, rotary control, customizable rotaries, and SoftKeys provide intuitive operation, while integrated dual-band Wi-Fi enables complete wireless control through the CQ MixPad application. Recording options include SD card multitrack recording, USB audio interfacing, stereo USB playback, and Bluetooth audio streaming.
With extensive input and output connectivity, flexible monitoring options, and powerful digital processing, the CQ-18T offers a complete solution for professional audio mixing, recording, streaming, and live performance applications.
Features of CQ-18T
- 96kHz digital audio processing
- 18-channel mixing architecture
- Quick Channel processing mode
- Complete Channel editing mode
- Automatic Gain Assistant
- Real-time gain monitoring
- Feedback Assistant with automatic filtering
- Up to 16 feedback suppression filters
- Four stereo FX engines
- Reverb, delay, and modulation effects
- Automatic Mic Mixing functionality
- 7-inch capacitive touchscreen
- Dedicated rotary control interface
- 3 customizable rotary controls
- 3 assignable SoftKeys
- Built-in dual-band Wi-Fi
- CQ MixPad remote control support
- CQ4You personal monitoring support
- SD card multitrack recording
- USB audio interface functionality
- Bluetooth stereo audio playback
- Stereo USB recording and playback
- Dual assignable headphone outputs
- Four DCA groups
- Four mute groups
- 24×22 USB audio interface
- Rack-mount compatible design
- Speech and conference optimized
- Streaming and podcast ready
- Portable desktop mixer format
Specifications of CQ-18T
| Product Type | Digital Mixer |
| Maximum I/O Capacity | 18 Inputs / 6 Outputs |
| Analog Input Channels | 18 |
| Analog Output Channels | 6 |
| Audio Processing | 96 kHz |
| Display | 7″ Backlit Capacitive Touchscreen |
| Main Mix Routing | 1 × Stereo Main LRC |
| Bus Outputs | 6 × Mono Bus |
| DCA Groups | 4 |
| Mute Groups | 4 |
| Built-In Effects | 4 × Stereo FX Engines |
| Dynamic Processing | Compressor, Gate |
| Automatic Mic Mixing | Yes |
| Feedback Assistant | Yes |
| Gain Assistant | Yes |
| Input Polarity | Normal / Reverse |
| Solo Functions | Per Input, Bus, Master |
| Mute Functions | Per Input, Bus, Master |

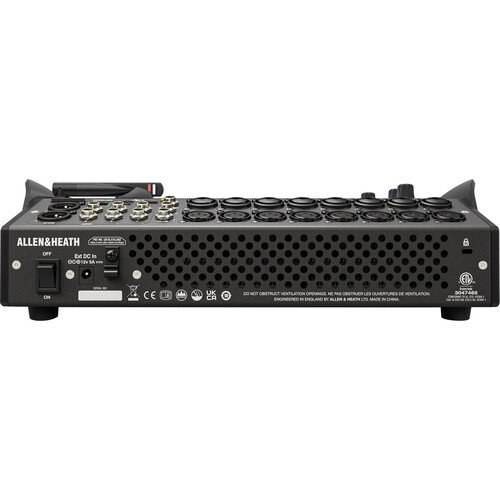

| Analog Inputs | 8 × XLR Mic/Line, 8 × Combo XLR/TRS Mic/Line, 2 × TRS Stereo Line Inputs |
| Analog Outputs | 2 × XLR Main Outputs, 6 × TRS Mix Outputs |
| Headphone Outputs | 2 × TRS Stereo Outputs |
| Phantom Power | +48 V |
| Digital I/O | 1 × RJ45 Network Port |
| USB Ports | 1 × USB-A, 1 × USB-B 2.0 |
| USB Audio Interface | 24 × 22 |
| SD Card Recording | Yes |
| Maximum Multitrack Recording | 24 Tracks |
| Bluetooth Audio Playback | Yes |
| Wireless Connectivity | Integrated Dual-Band Wi-Fi |
| Wi-Fi Bands | 2.4 GHz / 5 GHz |
| MIDI Support | No |
| Media Support | SD Card |
| Mobile App Compatibility | Android, iOS |
| USB Playback | Stereo |
| USB Recording | Stereo |
| Headphone Mixes | Independently Assignable |
| Rack Mountable | Yes |
| Rack Size | 6U (Hardware Not Included) |
| Power Input | 12 VDC at 4 A |
| AC Power Range | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Dimensions | 13.6 × 9.5 × 3.5 in (34.6 × 24.2 × 8.8 cm) |
| Weight | 6.6 lb (3 kg) |
| Package Weight | 10.15 lb |
| Box Dimensions | 16.5 × 12.2 × 8.4 in |
