Ecler TRAIL103 Rail-Mount Speaker – White
The Ecler TRAIL103 White is a 3 inch lamp-style loudspeaker built for ceiling light rail mounting, surface mounting, or truss mounting, offering both low and high impedance connections for retail and commercial sound reinforcement.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 1,113.42 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
Ecler TRAIL103 White rail-mount loudspeaker
The Ecler TRAIL103 is a 3 inch lamp-style loudspeaker cabinet in white, designed to blend into ceiling light rail installations while still delivering focused, intelligible sound. Its lamp-inspired form factor lets it sit alongside track lighting fixtures, making it a discreet option for retail spaces, cafes, and showrooms where visual integration with the lighting design matters.

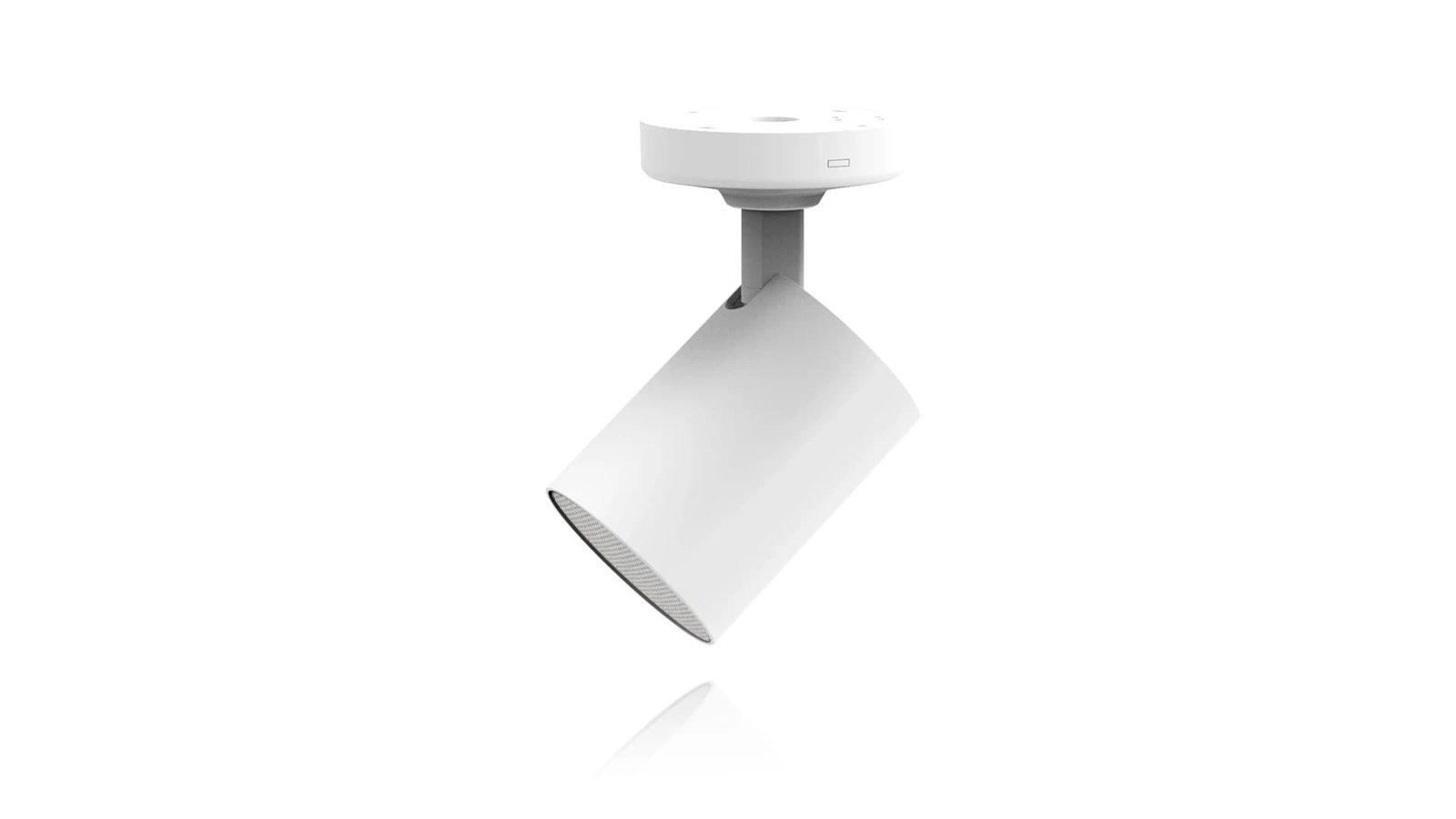

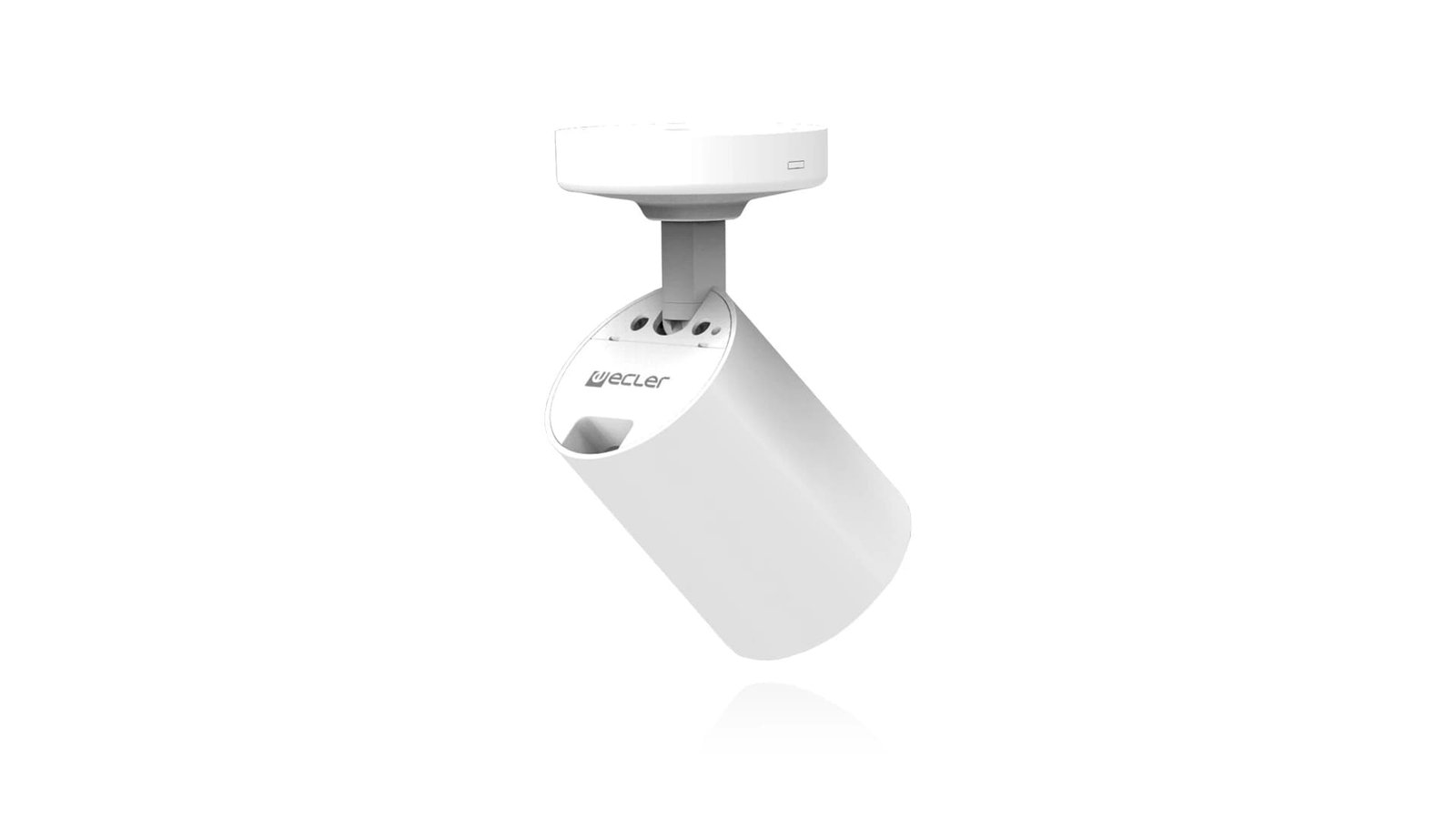

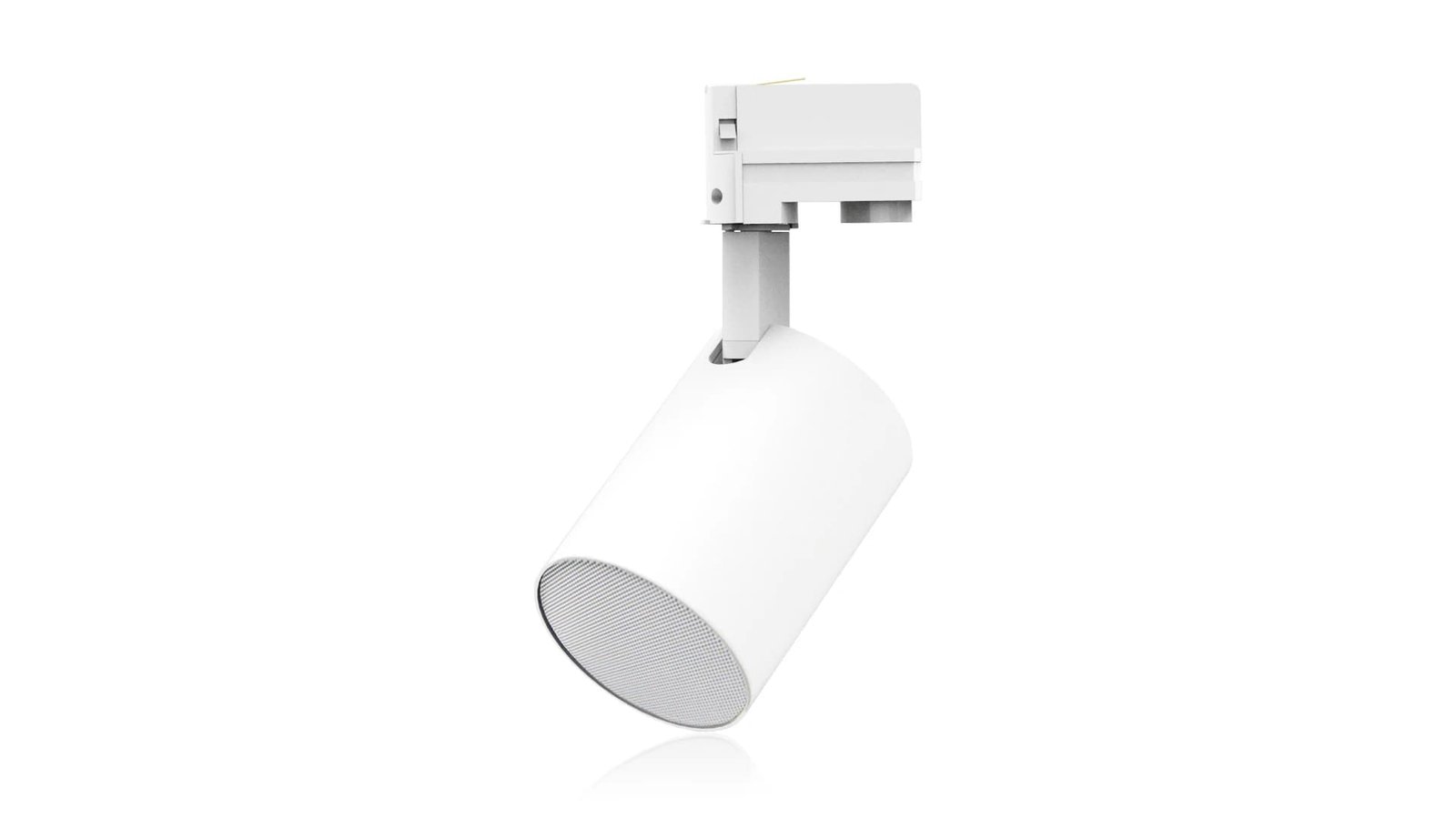

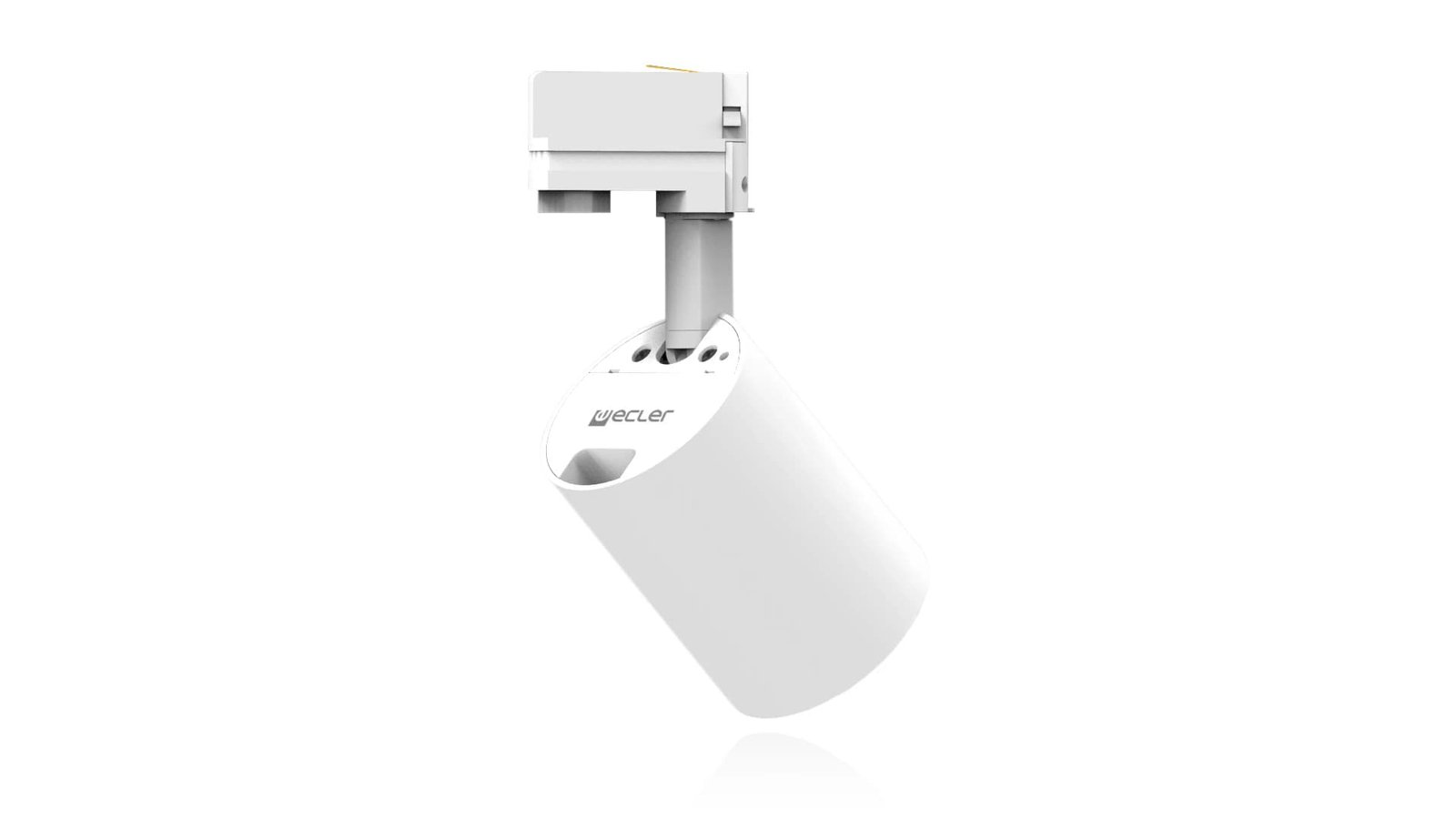

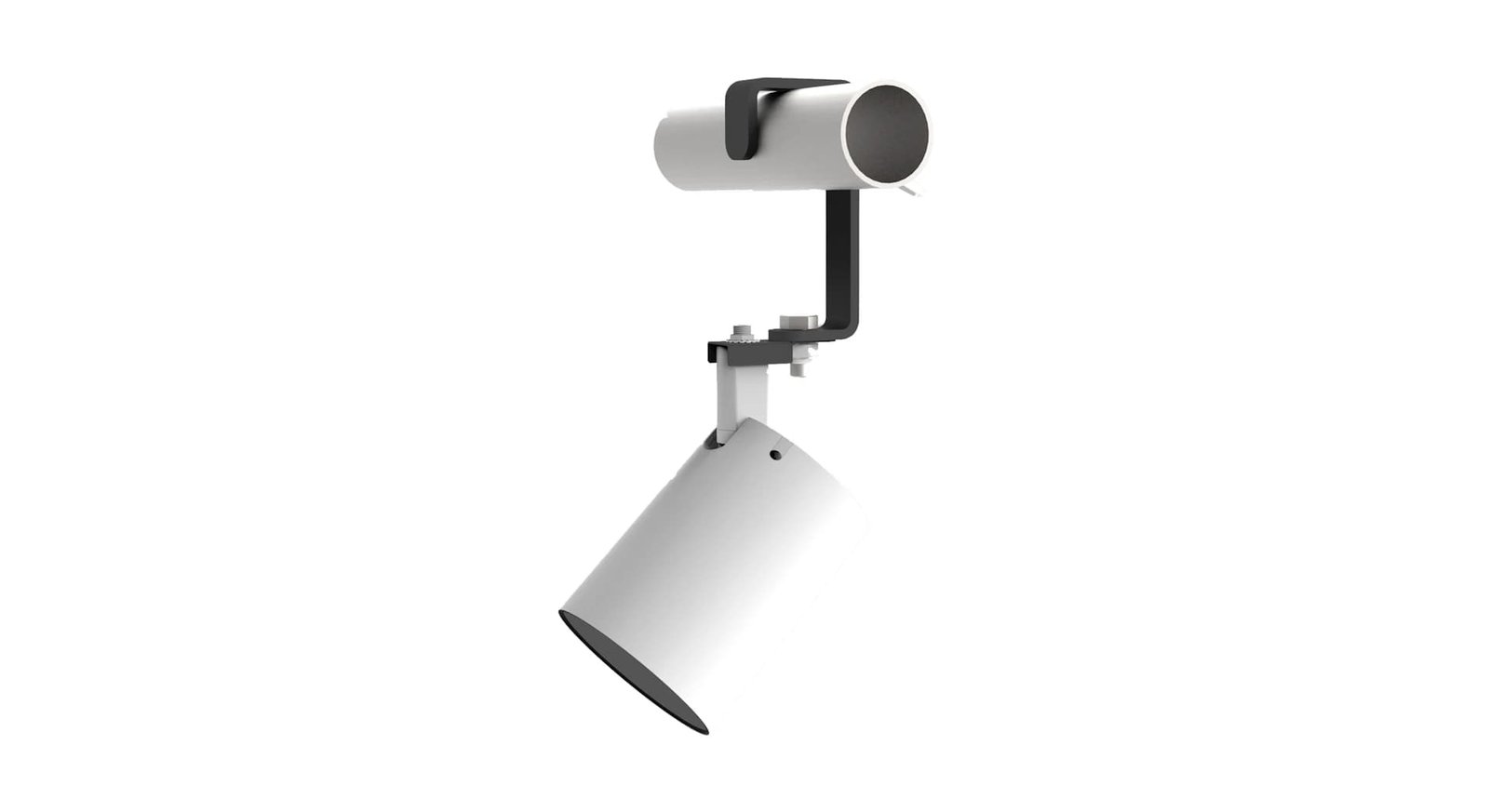

The cabinet supports three mounting options included in the packaging: ceiling light rail mounting compatible with Global Track Pro and similar systems, surface mounting, and truss or threaded bar mounting. Both low impedance (4 ohm) and high impedance connections with 15W and 30W taps are included, giving installers the freedom to wire the TRAIL103 into either a dedicated amplifier channel or a 100V distributed line.
Housing a single 3 inch full range driver, the TRAIL103 is tuned for foreground and background music reinforcement in compact commercial spaces such as shopping centres, meeting rooms, health and sports centres, and hospitality venues. Its clamp and Euroblock terminal connections keep wiring straightforward during installation, whether the unit is deployed as a single point source or as part of a wider distributed system across several rooms.
Finished in white (RAL 9003) to complement bright ceiling and lighting schemes, the TRAIL103 is compact and lightweight, simplifying handling and rail attachment during first-fit or retrofit projects. EASE simulation files are available to support acoustic modelling ahead of installation, helping designers plan coverage across retail aisles, corridors, and small commercial interiors without excessive guesswork.
Features
- 3 inch lamp-style loudspeaker cabinet
- Compatible with ceiling light rail mounting systems
- Additional surface mount and truss mount options included
- Low impedance (4 ohm) connection
- High impedance 15W/30W tap selector
- Clamp and Euroblock terminal connections
- Compact, lightweight cabinet for discreet installation
- White (RAL 9003) finish
- EASE simulation files available
- Ideal for retail, hospitality, and commercial interiors
Specifications
| Effective Frequency Range | 115Hz-20kHz (-10dB) |
| Coverage Angle | 180° x 180° (HxV) |
| Power Handling | 15W RMS / 60W Peak |
| Sensitivity | 83dB (1W/1m) |
| Maximum SPL | 95dB continuous / 101dB peak |
| Power Options | Lo-Z: 4Ω; Hi-Z: 15/30W @ 100V |
| Recommended Amplifier Power | 30W RMS |
| Transducer | 3 inch woofer |
| Nominal Impedance | 4Ω |
| Connection Type | Clamp terminals + Euroblock terminals |
| Installation Options | Ceiling light rail, surface mount, truss mount |
| Finished Colour | White (RAL 9003) |
| Dimensions (Ø x D) | 96 x 110 mm / 3.78 x 4.33 in |
| Weight | 1.0 kg / 2.2 lb |
