JBL SRX812 12-inch 2-Way Multipurpose Passive Speaker
12-inch two-way passive loudspeaker designed for portable and installed applications, delivering high output, wide coverage, flexible mounting options, and professional-grade transducer technology for live sound reinforcement.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 7,715.95 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description

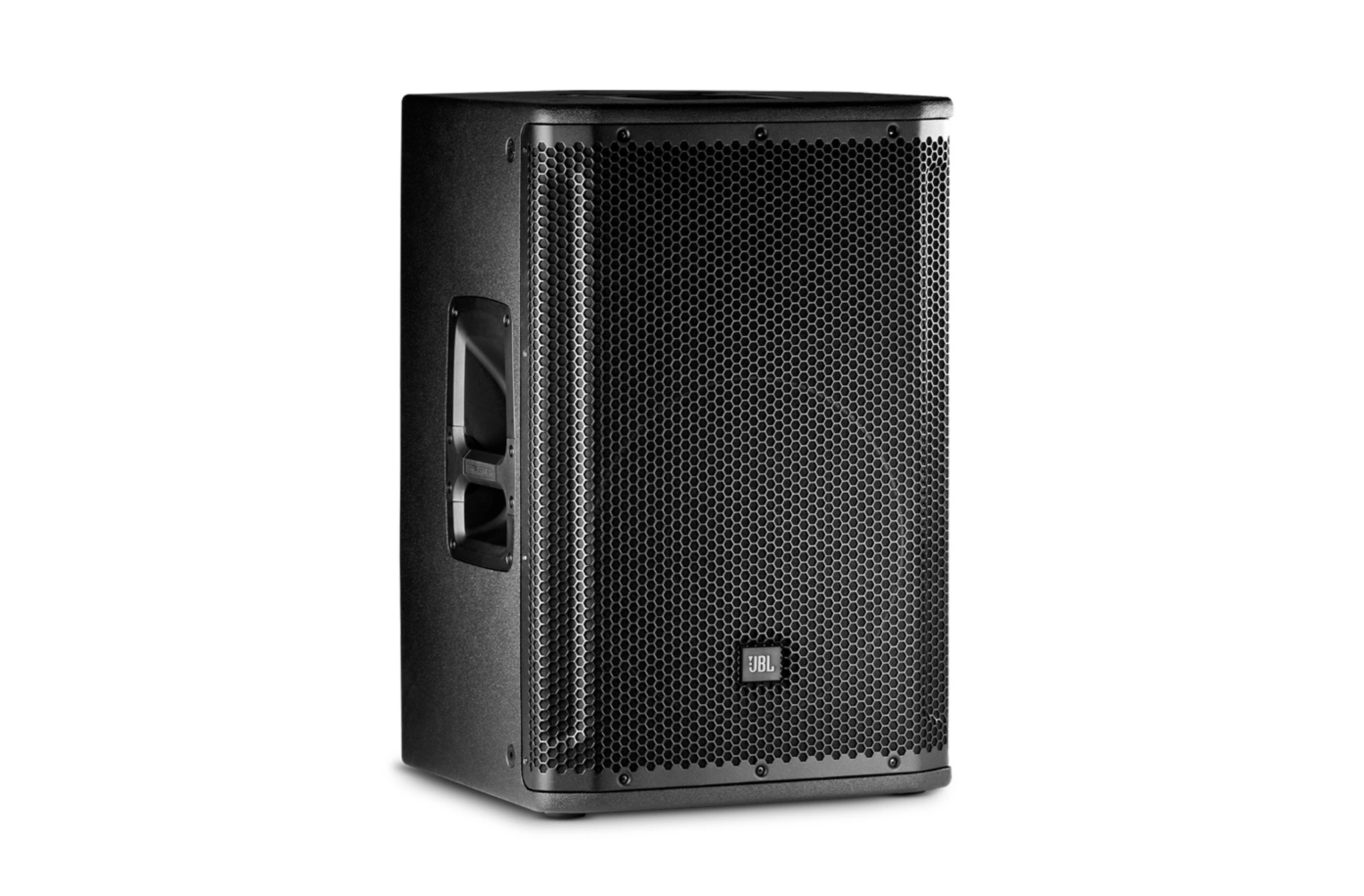

The JBL SRX812 12-Inch Two-Way Passive Speaker is engineered as a versatile full-range loudspeaker suitable for portable PA systems and permanent installations. Designed for use as a main PA, stage monitor, or side and rear fill, the JBL SRX812 12-Inch Two-Way Passive Speaker provides reliable performance for musicians, DJs, rental companies, houses of worship, corporate venues, and educational facilities.

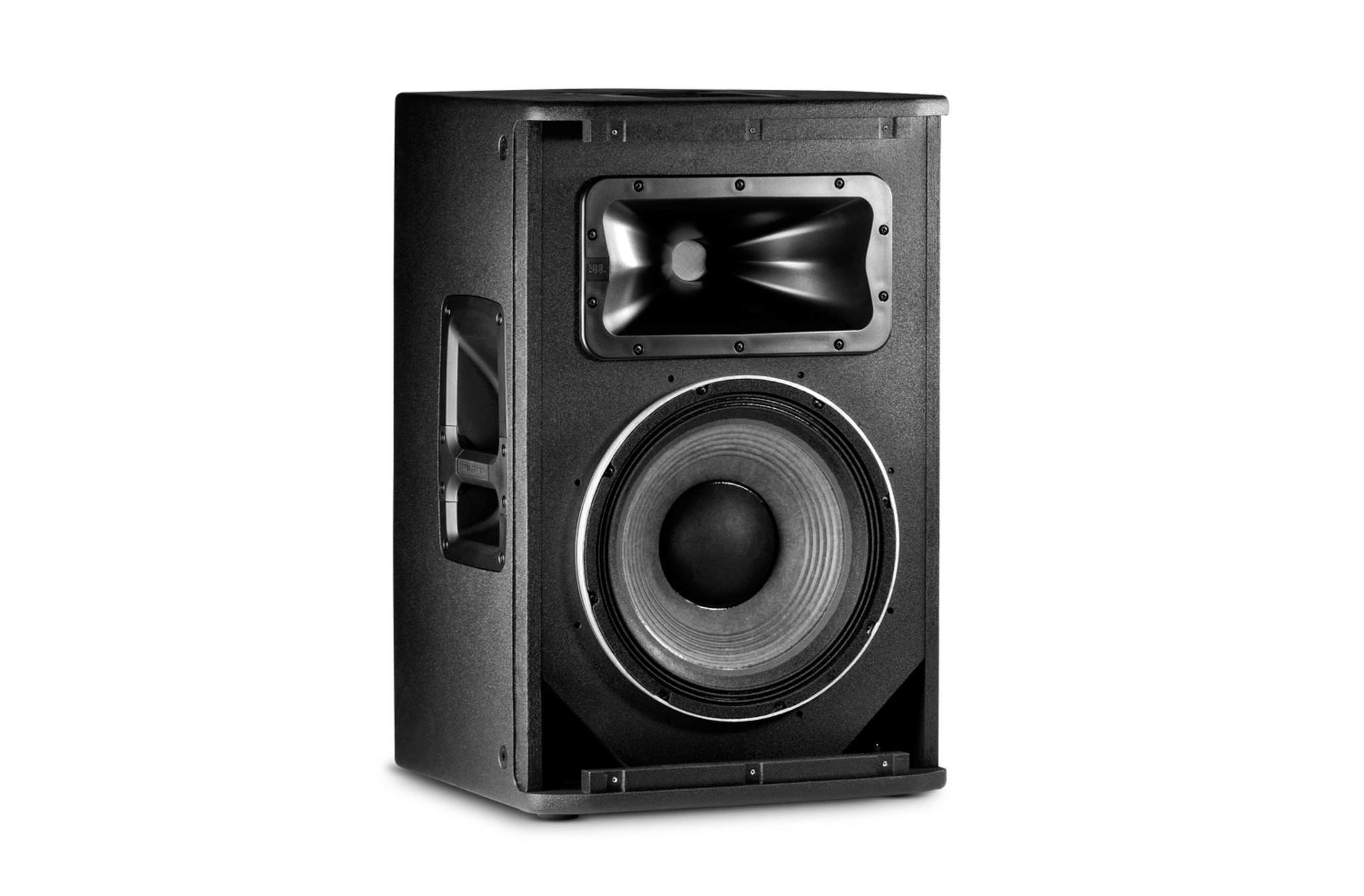

Built around a 12-inch woofer and high-performance compression driver, the system delivers strong low-frequency extension and clear high-frequency reproduction. With a peak power handling of 3200 watts and maximum SPL reaching 129 dB, it is capable of high-output sound reinforcement in demanding environments. The 90° x 50° coverage pattern ensures controlled and consistent dispersion across audience areas.

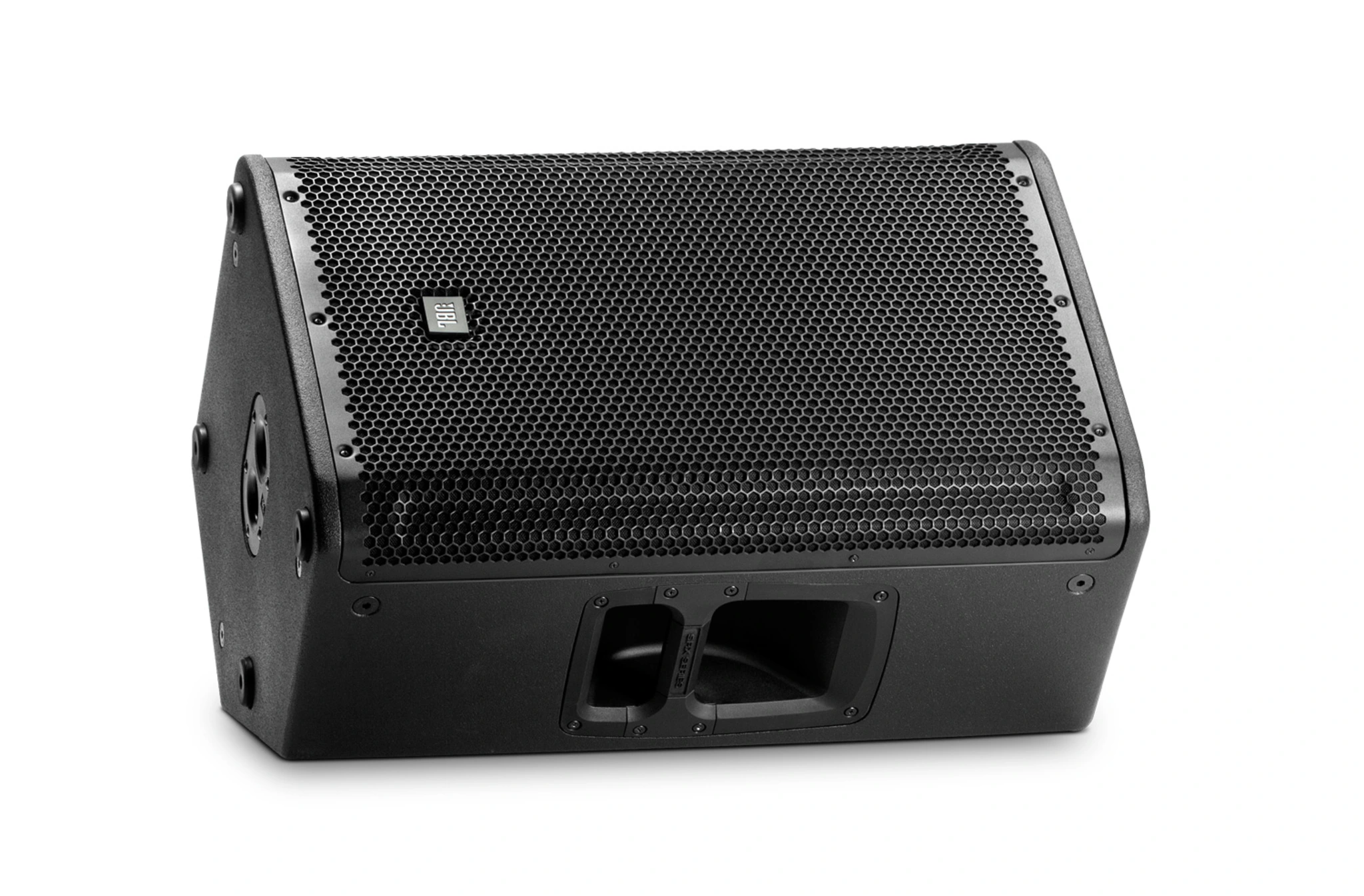

The enclosure is constructed from 18 mm plywood with a durable Obsidian Duraflex finish for long-term reliability. Ergonomically positioned handles support comfortable transport, while indexed feet allow both floor-standing and monitor configurations. Dual 36 mm pole sockets and twelve M10 suspension points provide flexible mounting options for flown or ground-stacked setups.
Incorporating JBL Differential Drive technology, the ferrite woofer design reduces weight while maintaining high power handling and low distortion. The 2432H high-frequency compression driver delivers detailed, articulate sound. Tunings and presets are available for compatible Crown amplifiers and dbx signal processors, ensuring optimized system integration.
Features of SRX812
12-inch two-way passive bass-reflex design
3200W peak, 1600W program, 800W continuous power handling
Maximum SPL of 129 dB (peak)
90° x 50° coverage pattern
Passive or bi-amp operational modes
JBL Differential Drive woofer technology
2432H high-frequency compression driver
Tunings available for Crown and dbx processors
18 mm plywood enclosure with Duraflex coating
Dual 36 mm pole sockets for mounting flexibility
Twelve M10 suspension points for flown installations

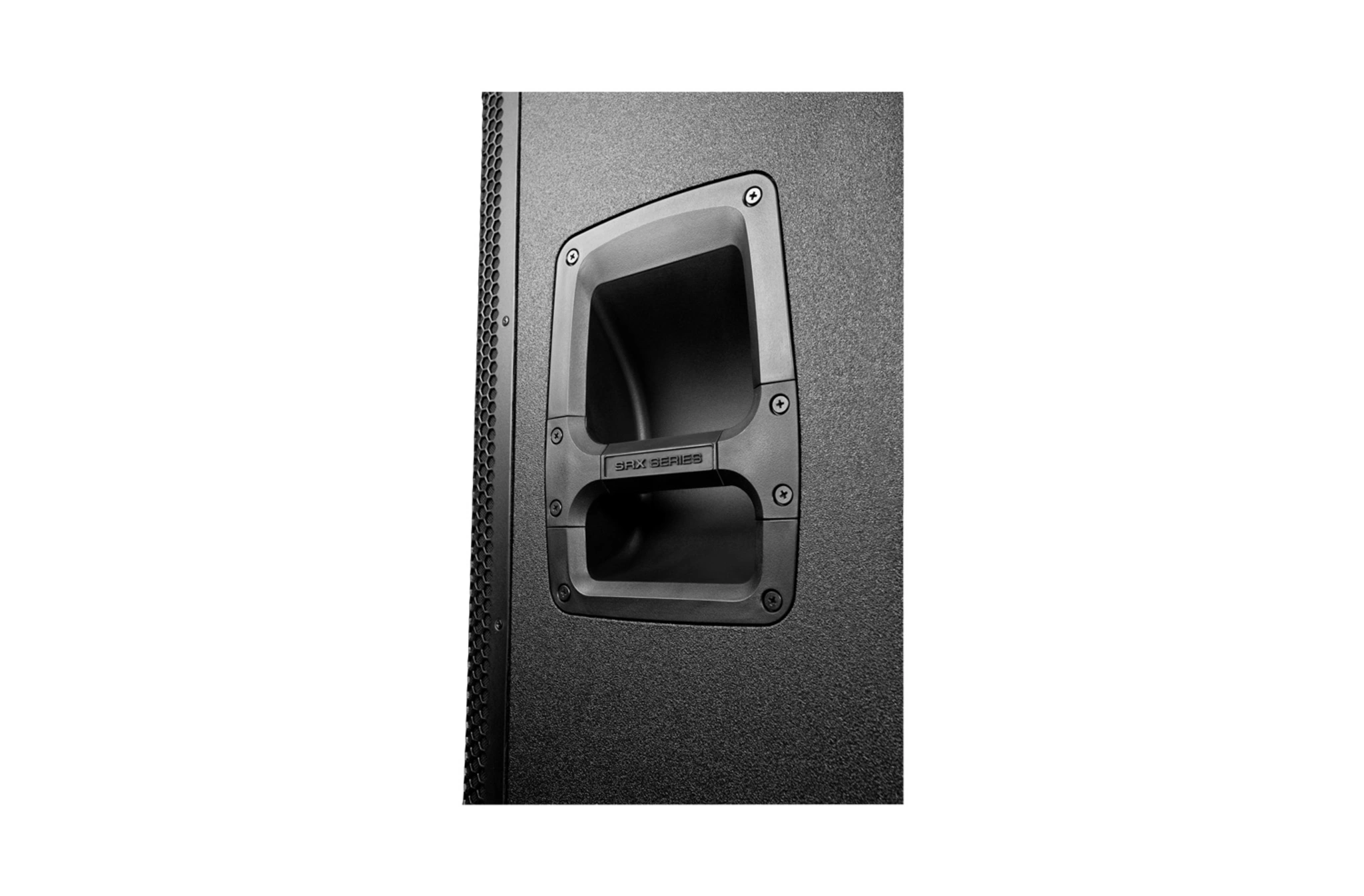

Ergonomic handles for portable use
Specifications of SRX812
| System Type | Passive 12” Two-Way, Bass-Reflex |
| Maximum SPL | 123 dB (Continuous), 129 dB (Peak) |
| Frequency Range (-10 dB) | 41 Hz – 20 kHz |
| Frequency Response (-3 dB) | 57 Hz – 20 kHz |
| Sensitivity | 94 dB |
| Power Rating | 3200W Peak, 1600W Program, 800W Continuous |
| Nominal Impedance | 8 Ohm |

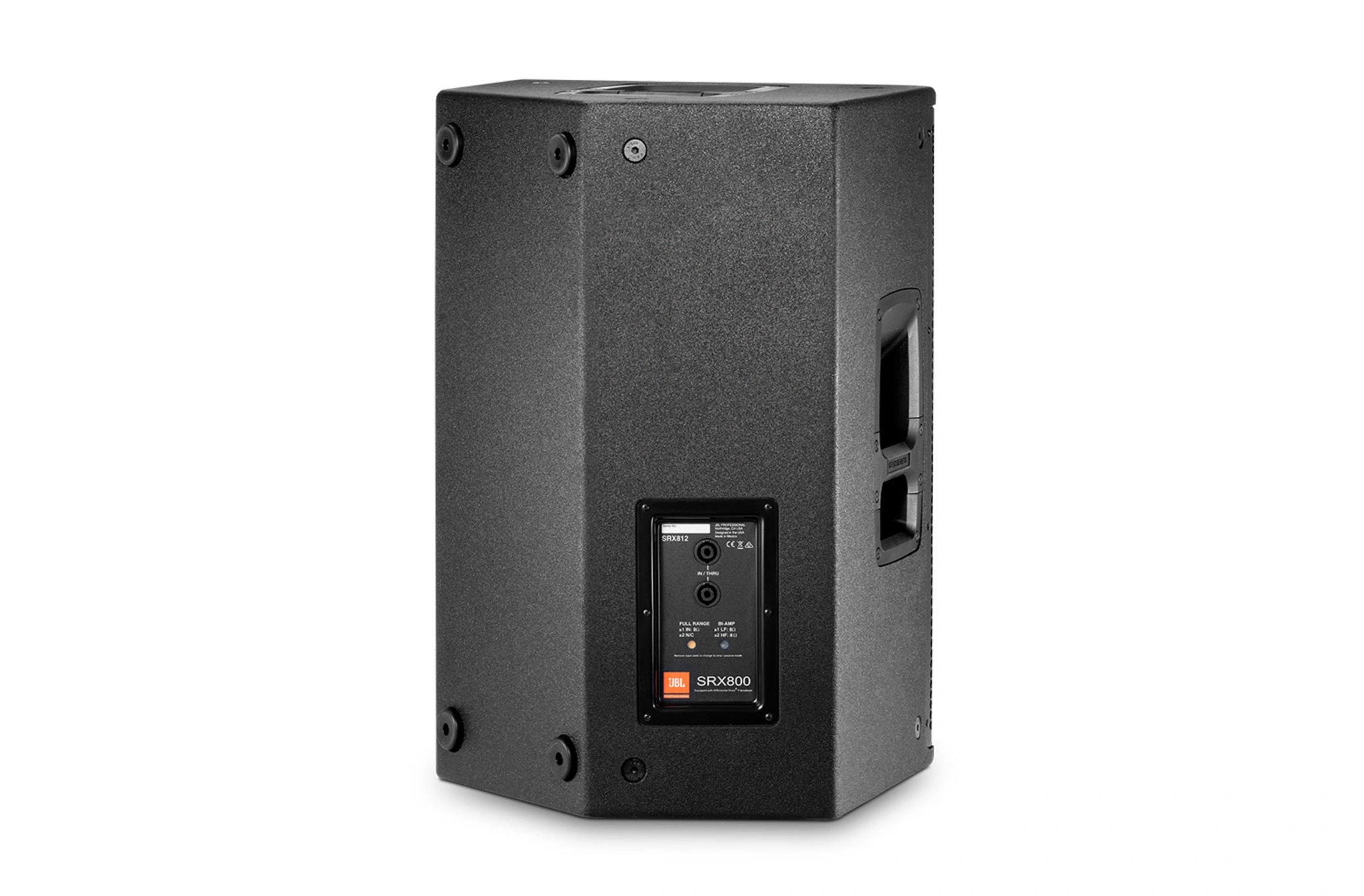

| Inputs | NL4 Input, NL4 Loop-Thru (+/-1 or +/-2 Selectable) |
| Operational Modes | Passive / Bi-Amp |
| LF Driver | 2272H |
| HF Driver | 2432H |
| Coverage Pattern | 90° x 50° |
| Crossover Frequency | 1.9 kHz |
| Enclosure Material | 18 mm Duraflex Coated Plywood |
| Monitor Angle | 50° |
| Suspension / Mounting | Dual 36 mm Pole Socket, 12 x M10 Suspension Points |
| Handles | 3 |
| Finish | Obsidian Duraflex |
| Grille | 14-Gauge Perforated Steel with Black Cloth Backing |
| Dimensions (H x W x D) | 429 x 415 x 638 mm |
| Net Weight | 24.9 kg |
| Shipping Weight | 29.3 kg |
| Origin of Country | Mexico |
