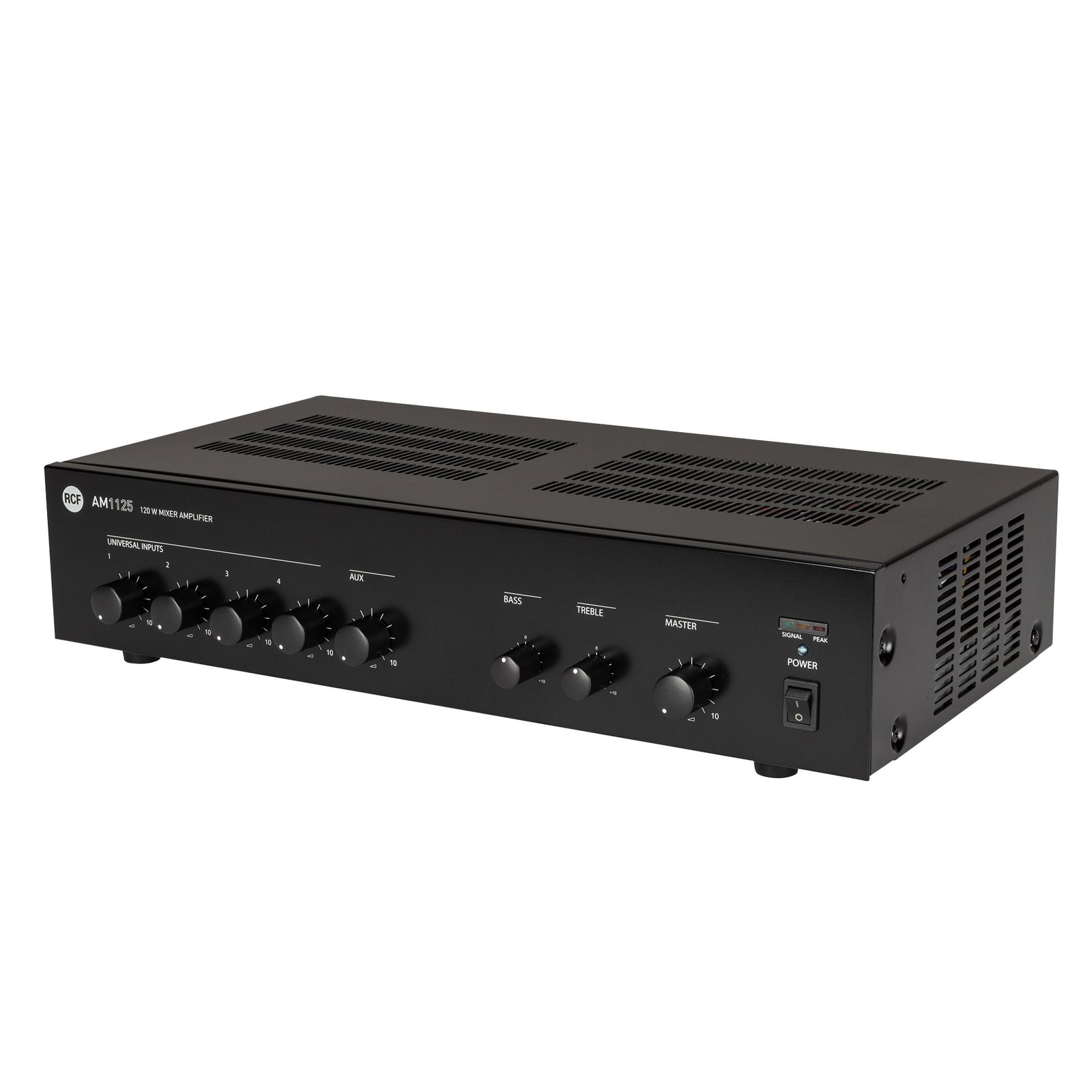

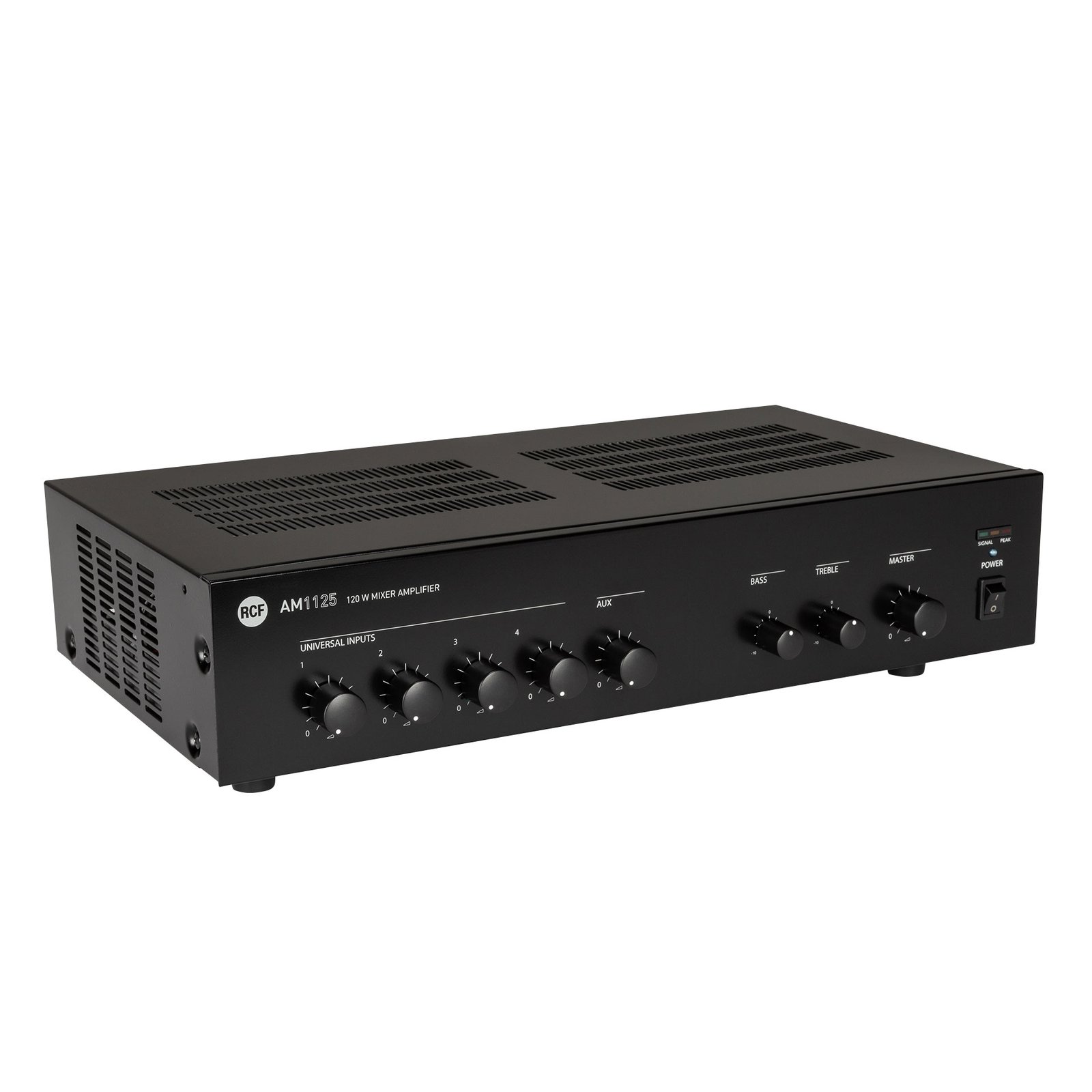

RCF AM 1125 120W Five-Input Mixer Amplifier

RCF AM 1125 120W Five-Input Mixer Amplifier

The RCF AM 1125 is a 120 W mixer amplifier with five audio inputs for announcement and music systems. Input-one phantom power and priority facilities support microphone use, while the auxiliary path provides a separate interface for programme sources.

The specified frequency response is 60 Hz – 15000 Hz. The stated output power is 1 x 120 W @ 4 ohm. The total number of audio inputs is 5. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 88 mm, width 431 mm, depth 385 mm, weight 7.3 kg. The enclosure material is Metal. The specified finish is Black. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

The amplifier should be selected around the connected loudspeaker load and the required source arrangement. Input compatibility, line configuration and available output power need to be considered together. This keeps the amplification stage aligned with the actual installation, whether the programme consists of announcements, background music or a combination of audio sources.

Plan the equipment position with room for the required connections and the specified ventilation arrangement. Establish the source routing and output settings before the system is put into service. Using the documented connection method keeps input levels, speaker loading and control functions consistent across the amplifier and the associated installation equipment. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of AM 1125

• 120 W power amplifier

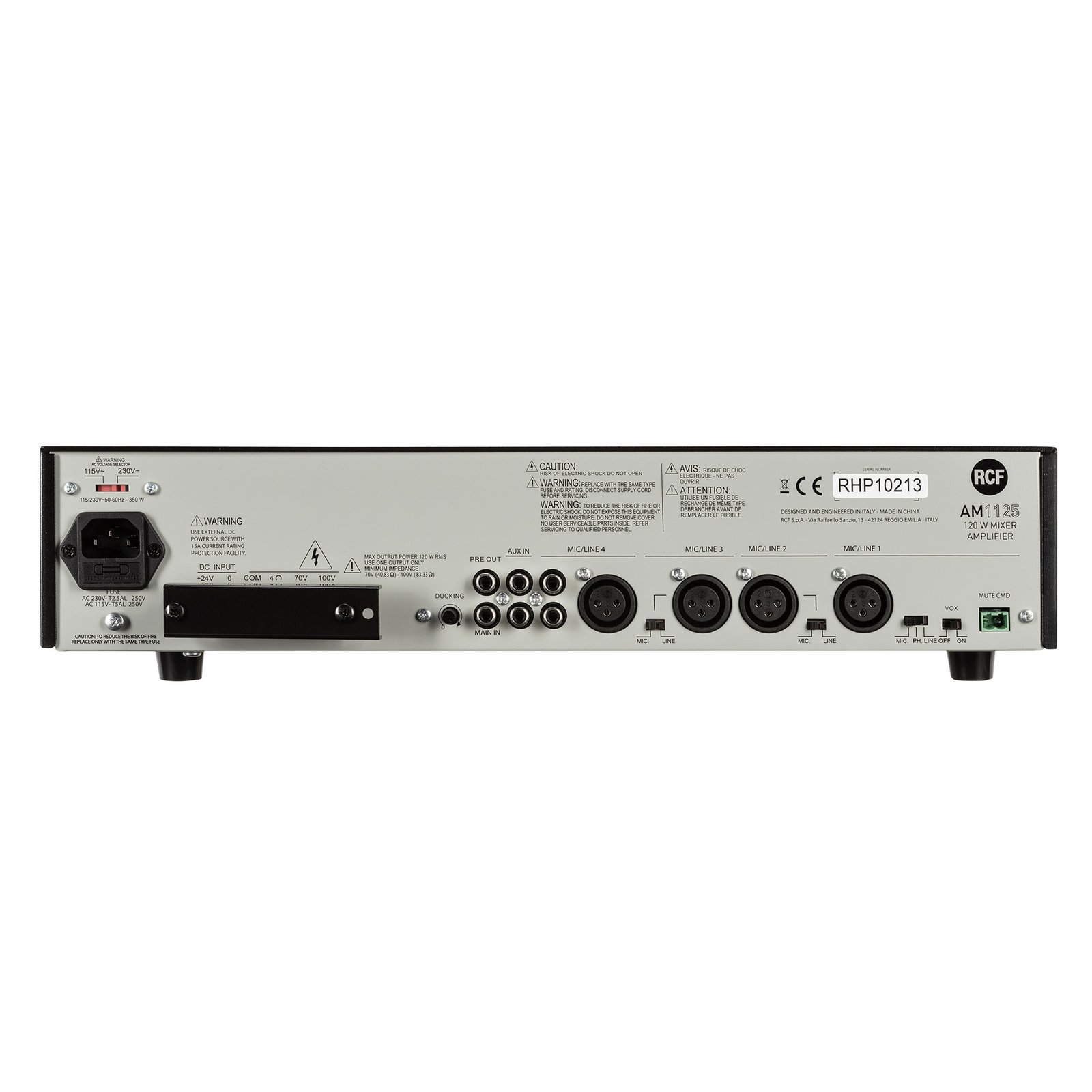

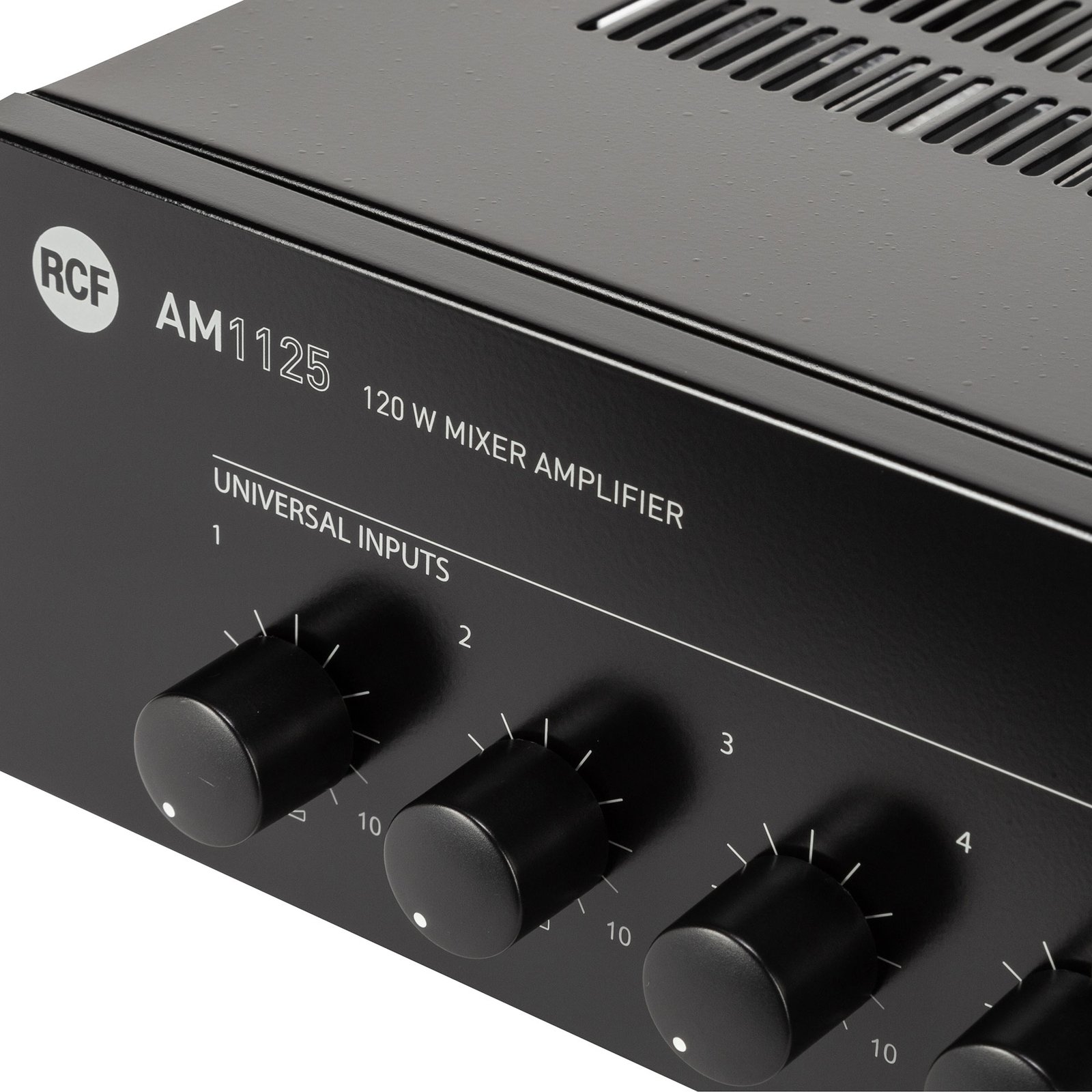

• 4 mic-line inputs and 1 AUX IN
• VOX facility and phantom power supply on INPUT 1
• Low and high impedance speakers output
• Dual RCA connectors for INPUT 4 and AUX IN
• Ducking control on AUX IN level
• AUX output on RCA connector

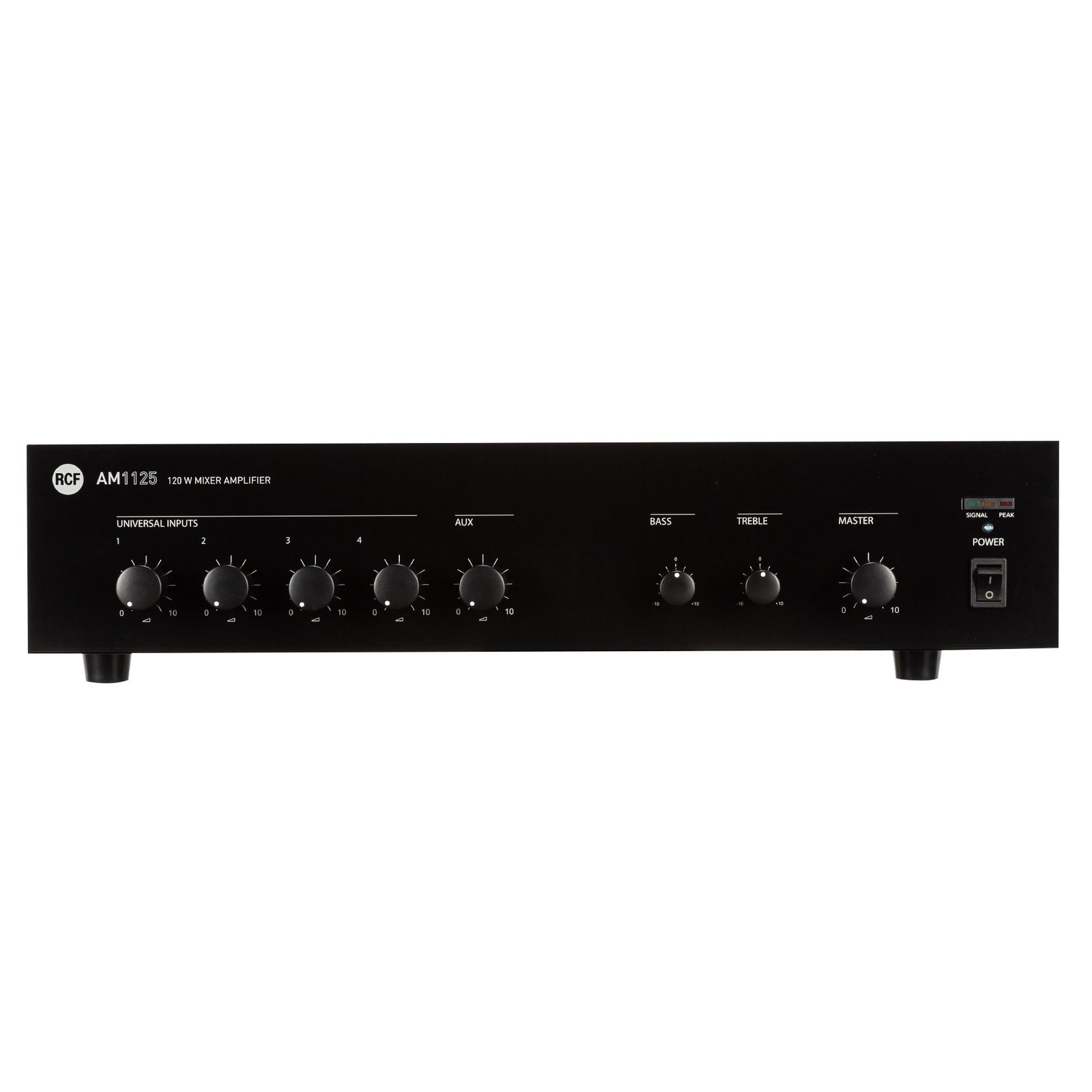

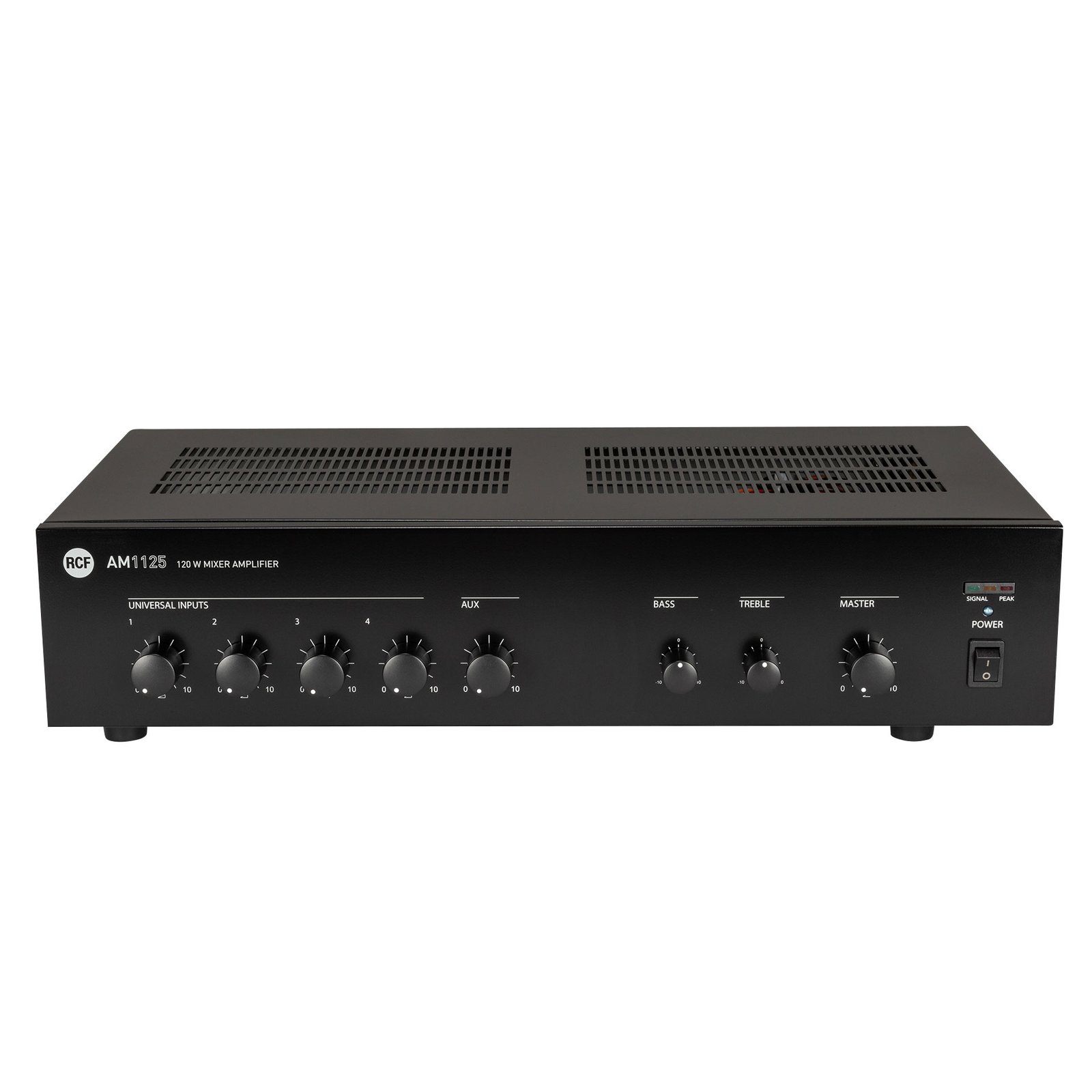

• Common tone controls on front panel
• 24 V dc power supply (batteries)
