Allen & Heath Qu-5 36-Channel / 12-Bus Digital Mixer

Allen & Heath Qu-5 Digital Mixer

The Allen & Heath Qu-5 Digital Mixer is a professional live sound mixing console that builds upon the success of the original Qu series while incorporating powerful XCVI processing technology, enhanced audio performance, expanded connectivity, and an updated user experience. Designed for engineers seeking intuitive operation and professional-grade functionality, the Qu-5 combines advanced digital mixing capabilities with a familiar hands-on workflow.

At the heart of the mixer is Allen & Heath’s 96kHz XCVI processing engine, delivering exceptional audio clarity and low-latency performance. Updated microphone preamps and high-performance AD/DA converters ensure pristine signal quality from input to output. The mixer supports up to 38 inputs to mix, including 32 mono or linkable channels and three stereo channels, providing ample capacity for live productions, installations, conferences, houses of worship, and broadcast environments.

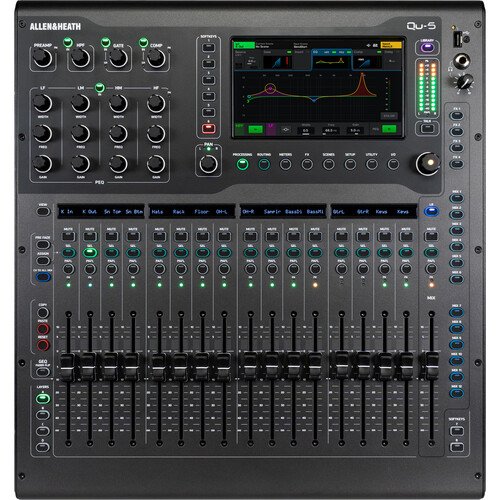

The Qu-5 features a redesigned interface centered around a responsive 7-inch capacitive touchscreen and channel strip displays that provide instant visual feedback for channel identification and level monitoring. Four customizable channel layers and eight programmable SoftKeys allow engineers to tailor the workflow to their specific requirements.

Comprehensive recording capabilities include a 32×32 USB-C audio interface, SD card multitrack recording, and stereo recording and playback through USB storage devices. The integrated SLink port enables seamless connectivity with Allen & Heath stage boxes and digital systems, supporting extensive expansion and flexible system integration.

Advanced features such as DEEP Processing compatibility, six stereo FX engines, Gain Assistant, Feedback Assistant, and a 32-channel Automatic Mic Mixer provide powerful tools for achieving professional results. Combining modern processing technology with straightforward operation, the Qu-5 delivers a versatile and scalable digital mixing solution for demanding audio environments.

Features of Qu-5

• 96kHz XCVI FPGA processing engine
• 16 high-performance microphone preamps
• 7-inch capacitive touchscreen
• 17 motorized 100mm faders
• Channel strip display system
• Four customizable channel layers
• Eight programmable SoftKeys
• Six stereo FX engines
• Dedicated stereo FX returns
• DEEP Processing compatibility
• Gain Assistant technology
• Feedback Assistant functionality
• Automatic Mic Mixer integration
• 32×32 USB-C audio interface
• SD card multitrack recording
• USB stereo recording and playback
• SLink expansion connectivity
• AES3 digital output
• Flexible routing architecture
• Remote control app support
• Stereo main LR output
• Matrix mixing capability
• Rack-mountable design
• High-performance AD/DA conversion
• Professional live sound workflow

Specifications of Qu-5
