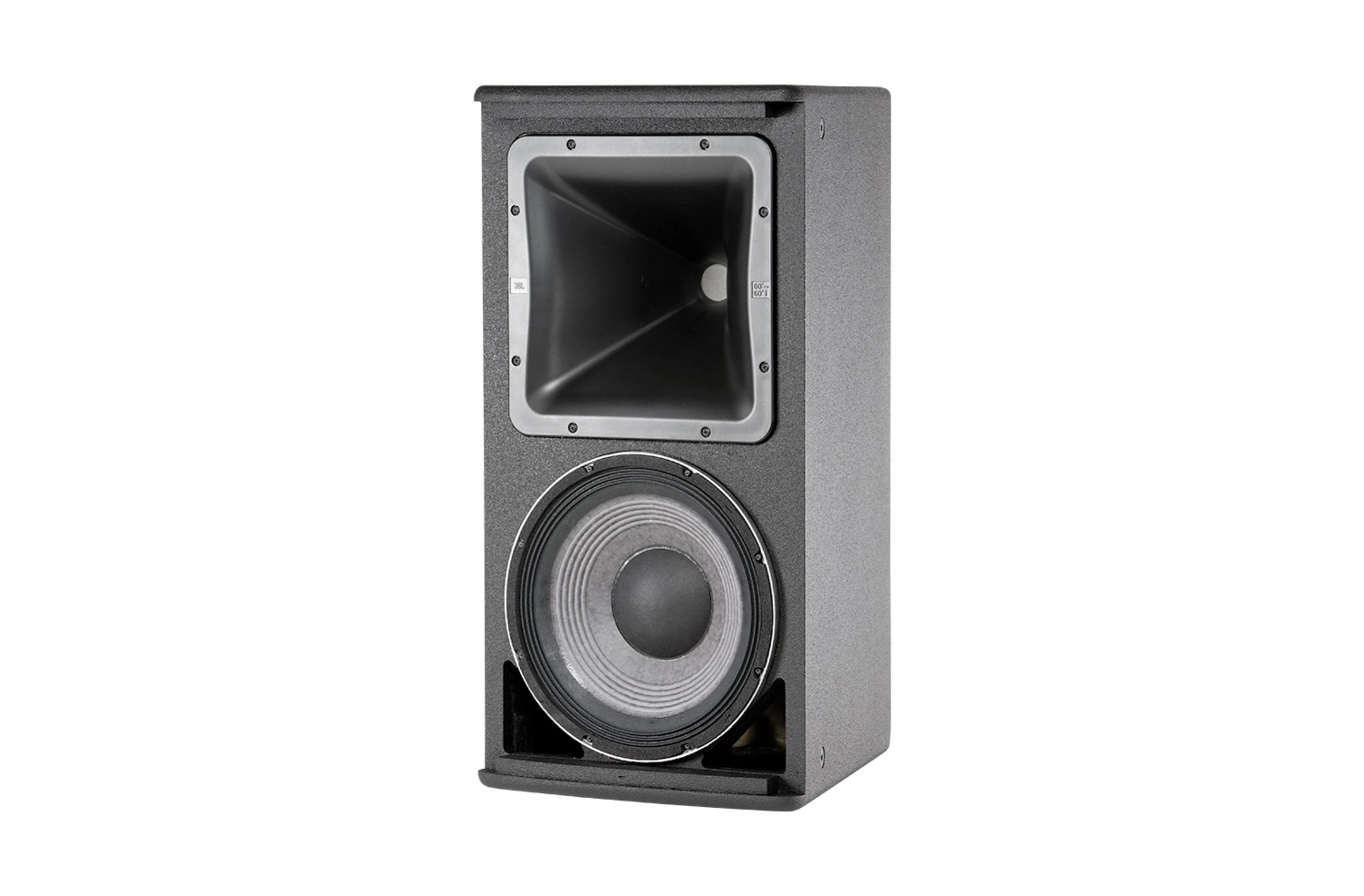

JBL AM7212/00 12-inch 2-Way Loudspeaker with 100° x 100° Rotatable Horn – Black
The JBL AM7212/00 12-inch 2-Way Loudspeaker in black delivers powerful full-range audio with wide 100° x 100° coverage, robust construction, and flexible installation options for professional sound reinforcement environments.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 19,529.63 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
JBL AM7212/00 12-inch 2-Way Loudspeaker
JBL AM7212/00 12-inch 2-Way Loudspeaker with 100° x 100° Rotatable Horn in black is a high-power, full-range loudspeaker system designed for demanding professional audio applications. It features the JBL Differential Drive® 2262H low-frequency driver with a 300 mm (12 in) cone, incorporating a 75 mm (3 in) dual voice coil and dual magnetic gap. This advanced driver design delivers high output capability, enhanced power handling, and reduced system weight while maintaining tight, accurate low-frequency performance.
High-frequency reproduction is provided by the JBL 2432H compression driver, utilizing a 38 mm (1.5 in) exit and a large 75 mm (3 in) voice coil. This configuration ensures clear, detailed high-frequency response with excellent projection and reliability under high sound pressure levels. The large-format Progressive Transition™ waveguide offers consistent 100° x 100° coverage, reducing distortion and maintaining uniform sound dispersion across the listening area. The rotatable waveguide supports both vertical and horizontal installation, allowing adaptable placement in a wide range of venue layouts.
High-slope passive crossover networks reduce band overlap, while controlled off-axis response improves arrayability in multi-loudspeaker configurations. The trapezoidal enclosure is constructed from exterior-grade Finnish birch plywood and includes multiple suspension points for secure and versatile rigging. Finished in black, the JBL AM7212/00 integrates seamlessly into professional stage and installed sound environments while delivering dependable high-power performance. Origin of country mexico.
Features of AM7212/00
100° x 100° rotatable coverage pattern
2262H Differential Drive® low-frequency driver
2432H high-frequency compression driver
Progressive Transition™ waveguide for consistent dispersion
Rotatable waveguide for vertical or horizontal installation
Bi-Amp/Passive switchable operation
Optimized frequency and phase performance with FIR tuning support
Available in Black, White, and WRC/WRX finishes
Specifications of AM7212/00
| Frequency Range (-10 dB) | 36 Hz – 20 kHz |
| Frequency Response (±3 dB) | 42 Hz – 20 kHz |
| Coverage Pattern | 100° x 100° |
| System Type | 12-inch 2-Way, High Power, Full-Range |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.8 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), HF: 100 W (400 W peak) |
| System Power Rating | Passive mode: 600 W (2400 W peak), 100 hrs |
| Maximum SPL (1 m) | Bi-amp: LF 126 dB cont avg, HF 131 dB cont avg |
| System Sensitivity (1W @ 1m) | Passive mode: 95 dB SPL |
| LF Driver | JBL 2262H 300 mm (12 in) Differential Drive® driver, 75 mm dual voice coil |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm voice coil |
| Nominal Impedance | 8 ohms |
| Nominal LF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
| Enclosure | Trapezoidal, 16 mm exterior-grade 11-ply Finnish birch plywood |
| Suspension Attachment | 15 points, M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H x W x D) | 711 x 369 x 458 mm |
| Net Weight | 23.1 kg |
| Origin of Country | Mexico |
