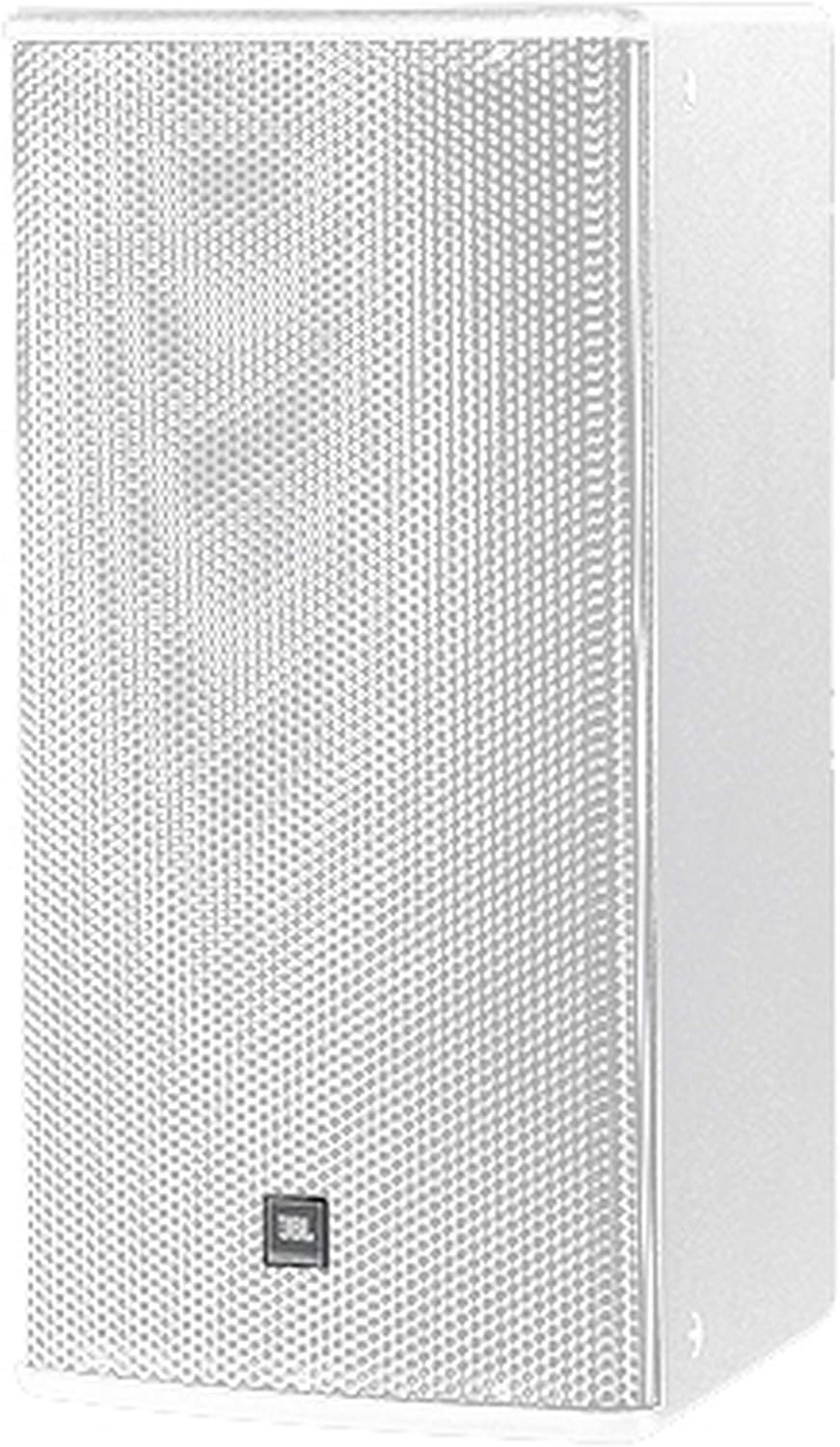

JBL AM7212/00-WH 12-inch 2-Way Loudspeaker with 100° x 100° Rotatable Horn – White

JBL AM7212/00 12-inch 2-Way Loudspeaker

JBL AM7212/00 12-inch 2-Way Loudspeaker with 100° x 100° Rotatable Horn in white is a high-power, full-range loudspeaker system engineered for demanding professional audio environments. It is built around the JBL Differential Drive® 2262H low-frequency driver, featuring a 300 mm (12 in) cone with a 75 mm (3 in) dual voice coil and dual magnetic gap. This advanced design provides high output capability, improved power handling, and reduced overall system weight while maintaining excellent low-frequency clarity and punch.

High-frequency reproduction is handled by the JBL 2432H compression driver, equipped with a 38 mm (1.5 in) exit and a large 75 mm (3 in) voice coil. This configuration ensures smooth, detailed high-frequency response and high acoustic output suitable for long-throw and high-SPL applications. The large-format Progressive Transition™ waveguide delivers a wide and consistent 100° x 100° coverage pattern, minimizing distortion and ensuring even sound distribution throughout the listening area. The rotatable waveguide allows the loudspeaker to be installed in either vertical or horizontal orientation, offering flexibility for various venue layouts.

High-slope passive crossover networks minimize frequency band overlap, while controlled off-axis response enhances arrayability in multi-loudspeaker systems. The trapezoidal enclosure is constructed from exterior-grade Finnish birch plywood and includes multiple suspension points for secure rigging. Finished in white, the JBL AM7212/00 integrates cleanly into architectural spaces while delivering reliable, high-power performance. Origin of country mexico.

Features of AM7212/00

• 100° x 100° rotatable coverage pattern

• 2262H Differential Drive® low-frequency driver

• 2432H high-frequency compression driver

• Progressive Transition™ waveguide for wide and consistent dispersion

• Rotatable waveguide for vertical or horizontal orientation

• Bi-Amp/Passive switchable operation

• Optimized frequency and phase response with FIR tuning support

• Available in White, Black, and WRC/WRX finishes

Specifications of AM7212/00
