JBL IVX-587140/230 Intellivox Series DSX430 16 x 40 RMS 13 x 4″ Full Range Beam Shaping Active Column Loudspeaker

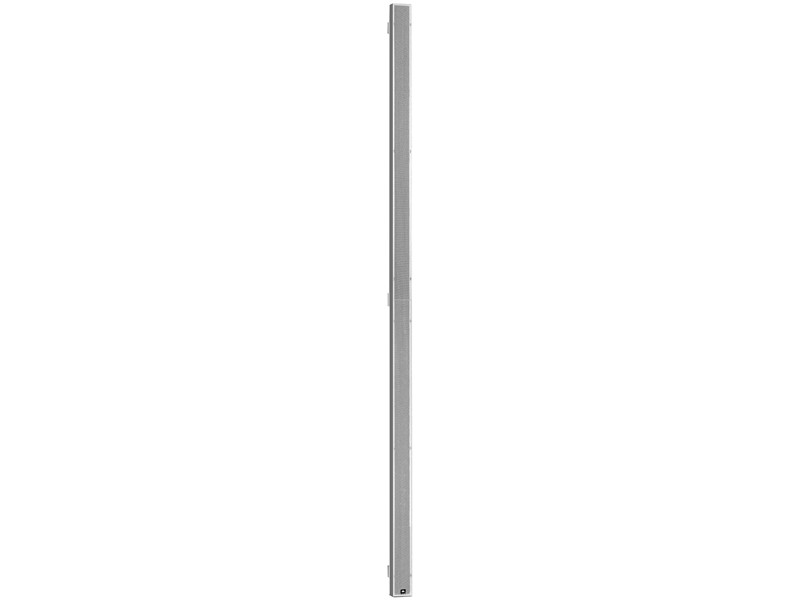

Duran Audio Intellivox-DSX430 full-range loudspeaker array

The Duran Audio Intellivox-DSX430 full-range loudspeaker array is designed to provide clear, intelligible sound in highly reverberant environments while covering areas up to 50 meters. Featuring thirteen custom 4” loudspeakers and eight 1” dome tweeters, the array achieves long throw capability with precise control over low and high frequencies. A sixteen-channel class-D amplifier powered by a switched mode power supply ensures reliable performance for years of operation.

The dome tweeters enhance horizontal coverage at high frequencies and improve overall sound quality for both speech and music. The system incorporates comprehensive surveillance functions to meet stringent Voice Alarm and life safety requirements. User-friendly control is provided through the proprietary WinControl software, allowing precise adjustment of beam steering, audio processing, presets, and monitoring functions.

With extended low-frequency control, the Intellivox-DSX430 integrates unobtrusively in architecturally sensitive spaces and can be paired with JBL subwoofer systems for enhanced bass response. The slim and elegant design, combined with advanced DSP, makes it ideal for transport hubs, lecture halls, large conference facilities, theatres, museums, and other spaces requiring high-fidelity sound with minimal visual impact.

Features of Intellivox-DSX430

• Superb speech intelligibility

• Slim unobtrusive design

• Extended frequency response up to 18 kHz

• High-fidelity sound reproduction

• Wide horizontal dispersion

• Vertical beam shaping (DDS Technology)

• 32-bit floating point DSP

• Control of vertical beam shaping

• Dual line inputs

• Volume control

• Delay up to 20 seconds

• 8-band parametric EQ

• 8 user-definable, password-protected presets

• Automatic volume control via built-in ambient mic

• Upgradeable firmware

• Network-ready

• Integral surveillance

• Simulation via DDA, Catt-Acoustic, Odeon, and EASE4.3

Specifications of Intellivox-DSX430
