JBL IVX-587141/230 Intellivox Series DSX430 16 x 40 RMS 13 x 4″ Full Range Beam Shaping Active Column Loudspeaker

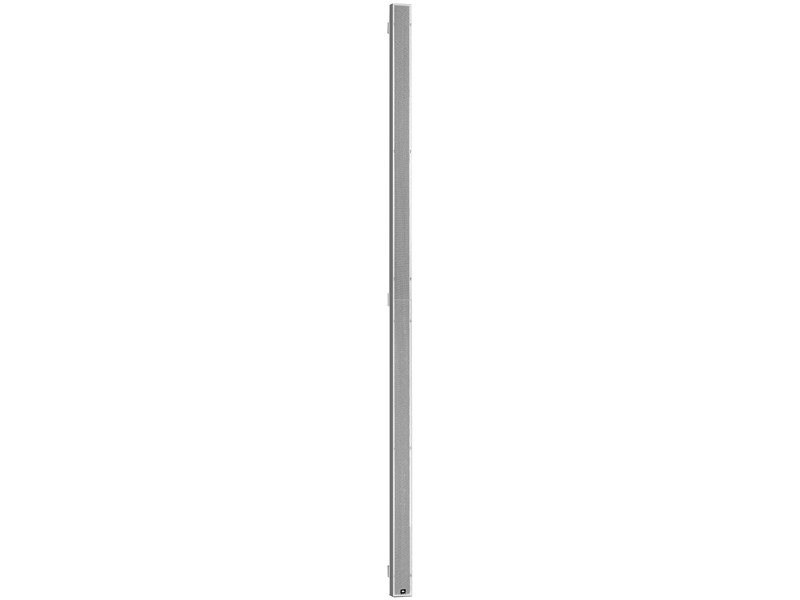

Duran Audio Intellivox-DSX430 full-range loudspeaker array

The Duran Audio Intellivox-DSX430 full-range loudspeaker array is designed to provide even, high-quality sound over areas up to 50 meters, making it ideal for highly reverberant and architecturally sensitive environments. Featuring thirteen custom 4” loudspeakers and eight 1” dome tweeters, the system achieves long throw coverage with extended control at lower frequencies. Its sixteen-channel class-D amplifier, powered by a switched mode power supply, ensures reliable operation for years of professional use.

The dome tweeters improve horizontal dispersion at high frequencies while enhancing the overall sound quality for both speech and music applications. Integrated surveillance functions meet the stringent requirements of Voice Alarm and life safety systems. Users can control beam steering, audio processing, presets, and surveillance features via the proprietary WinControl software, enabling precise customization and management of the array.

With extended low-frequency control and compatibility with JBL subwoofer systems, the Intellivox-DSX430 can be unobtrusively integrated into transport hubs, large conference facilities, theatres, lecture halls, atriums, museums, and places of worship. Its slim design, high-fidelity reproduction, and advanced DSP technology ensure intelligible sound, flexible operation, and long-term reliability in demanding acoustic environments.

Features of Intellivox-DSX430

• Superb speech intelligibility

• Slim unobtrusive design

• Extended frequency response up to 18 kHz

• High-fidelity audio reproduction

• Wide horizontal dispersion

• Vertical beam shaping (DDS Technology)

• 32-bit floating point DSP

• Control of vertical beam shaping

• Dual line inputs

• Volume control

• Delay up to 20 seconds

• 8-band parametric EQ

• 8 user-definable, password-protected presets

• Automatic volume control via built-in ambient mic

• Upgradeable firmware

• Network-ready

• Integral surveillance

• Simulation via DDA, Catt-Acoustic, Odeon, and EASE4.3

Specifications of Intellivox-DSX430
