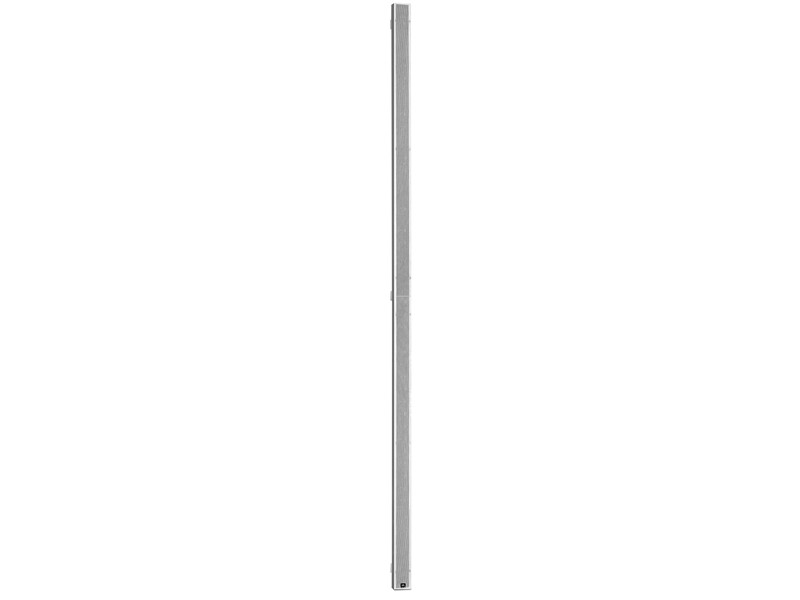

JBL IVX-587180/230 Intellivox Series DSX500 16 x 40 Watts RMS 28 x 4″ Full Range Beam Shaping Active Column Loudspeaker

Duran Audio Intellivox-DSX500 full-range loudspeaker array

The Duran Audio Intellivox-DSX500 full-range loudspeaker array is the flagship model of the slim line DSX range, engineered to provide even, high-quality audio over areas up to 70 meters. Featuring twenty-eight custom 4” loudspeakers and eight 1” dome tweeters, the array achieves long throw performance and enhanced low-mid frequency control. A sixteen-channel class-D amplifier powered by a sophisticated switched mode power supply ensures reliable operation over extended periods. The loudspeakers are arranged according to Duran Audio’s patented algorithm for optimized coverage.

The dome tweeters improve horizontal dispersion at high frequencies while enhancing overall sound quality for both speech and music. Integrated surveillance functions meet stringent Voice Alarm and life safety requirements. The proprietary WinControl software allows intuitive control of beam steering, audio processing, and monitoring features, enabling precise adjustment in very large, highly reverberant, and architecturally sensitive spaces.

The array’s extended low-frequency response can be further enhanced using JBL subwoofer systems, making the Intellivox-DSX500 ideal for transport hubs, large conference facilities, theatres, lecture halls, atriums, museums, and large places of worship. Its slim design, high-fidelity reproduction, and advanced DSP technology ensure intelligible sound, flexible operation, and long-term reliability in demanding acoustic environments.

Features of Intellivox-DSX500

• Superb speech intelligibility

• Slim unobtrusive design

• Extended frequency response up to 18 kHz

• High-fidelity audio reproduction

• Wide horizontal dispersion

• Vertical beam shaping (DDS Technology)

• 32-bit floating point DSP

• Control of vertical beam shaping

• Dual line inputs

• Volume control

• Delay up to 20 seconds

• 8-band parametric EQ

• 8 user-definable, password-protected presets

• Automatic volume control via built-in ambient mic

• Upgradeable firmware

• Network-ready

• Integral surveillance

• Simulation via DDA, Catt-Acoustic, Odeon, and EASE4.3

Specifications of Intellivox-DSX500
