RCF CS 6940EN Two-Way Voice Alarm Column Speaker

RCF CS 6940EN Two-Way Voice Alarm Column Speaker

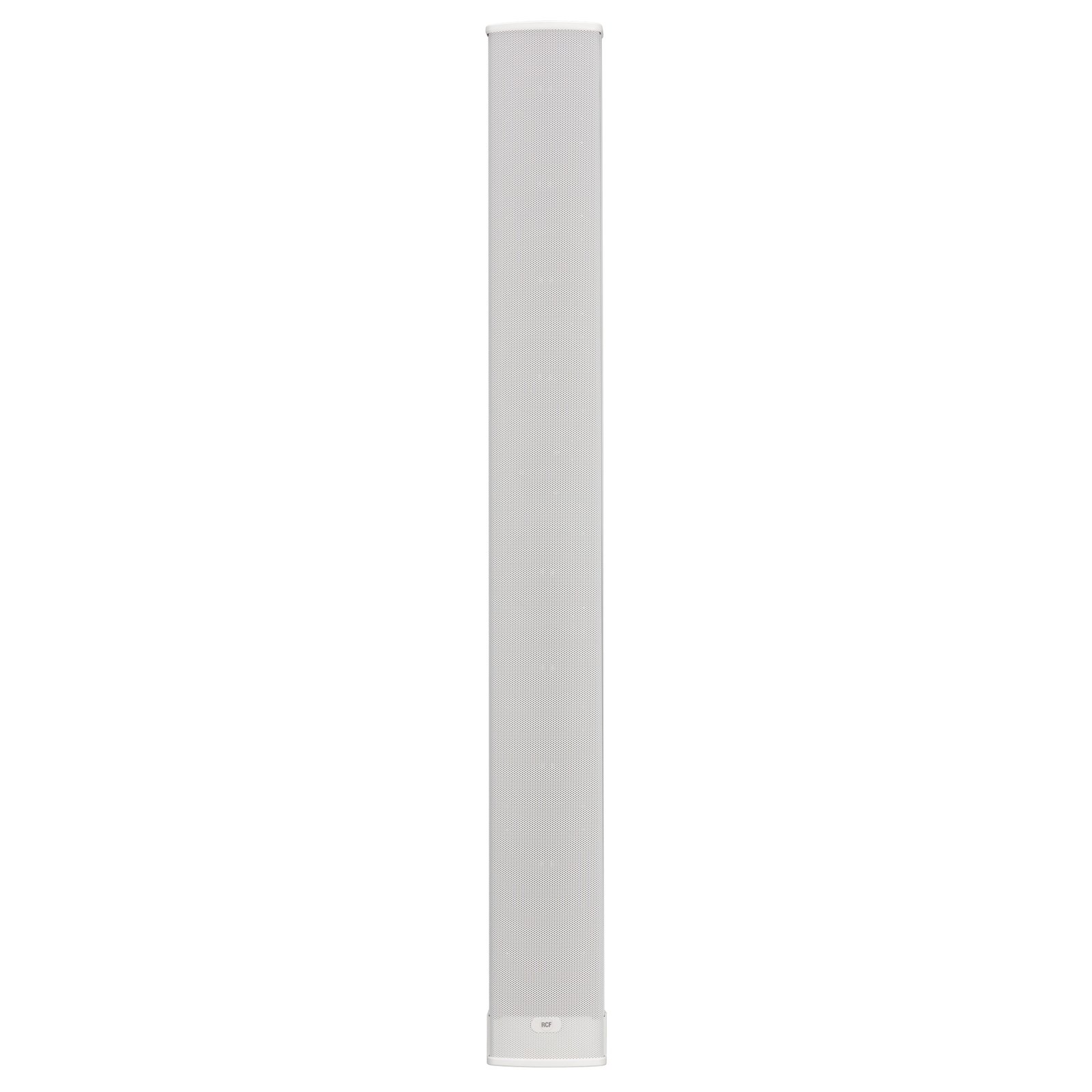

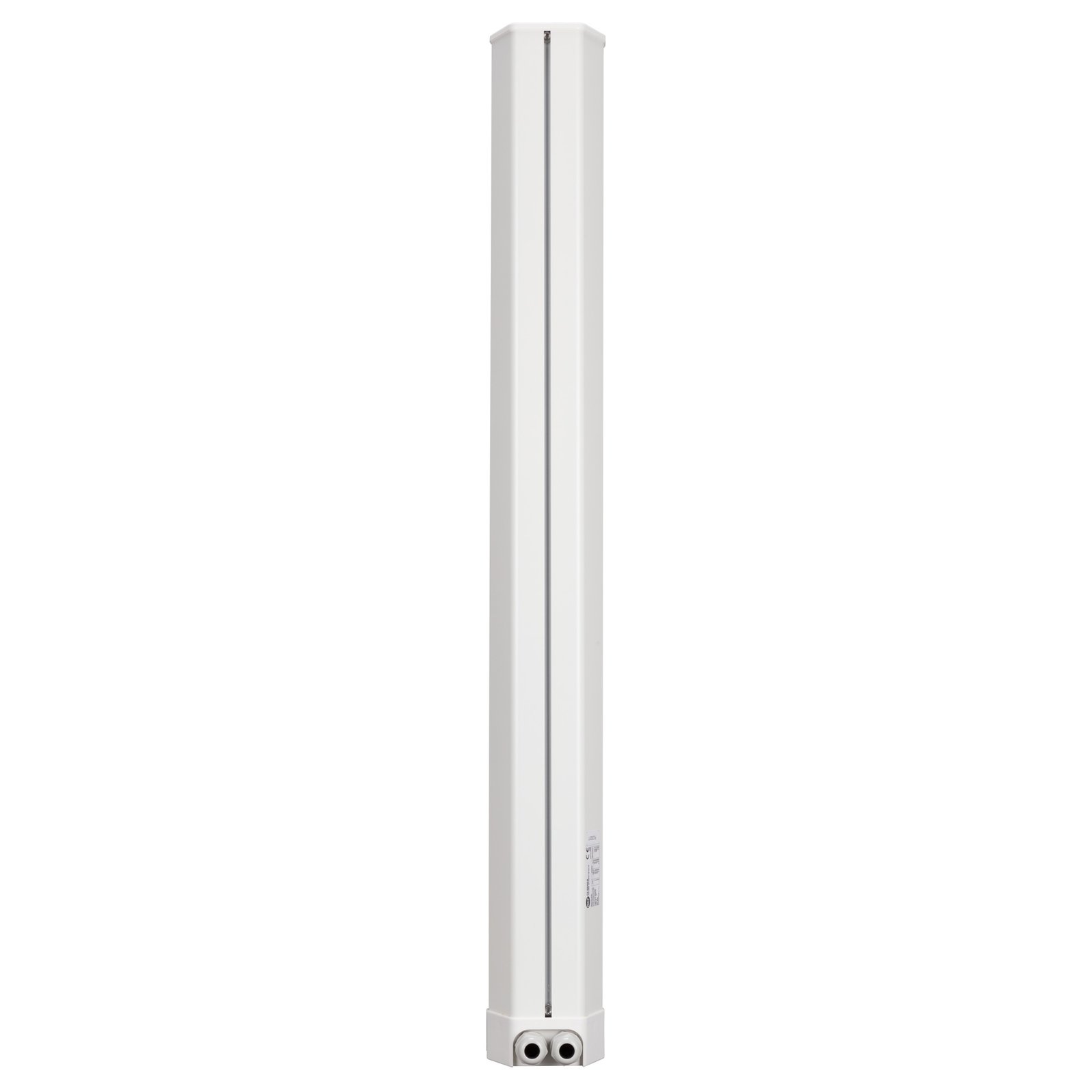

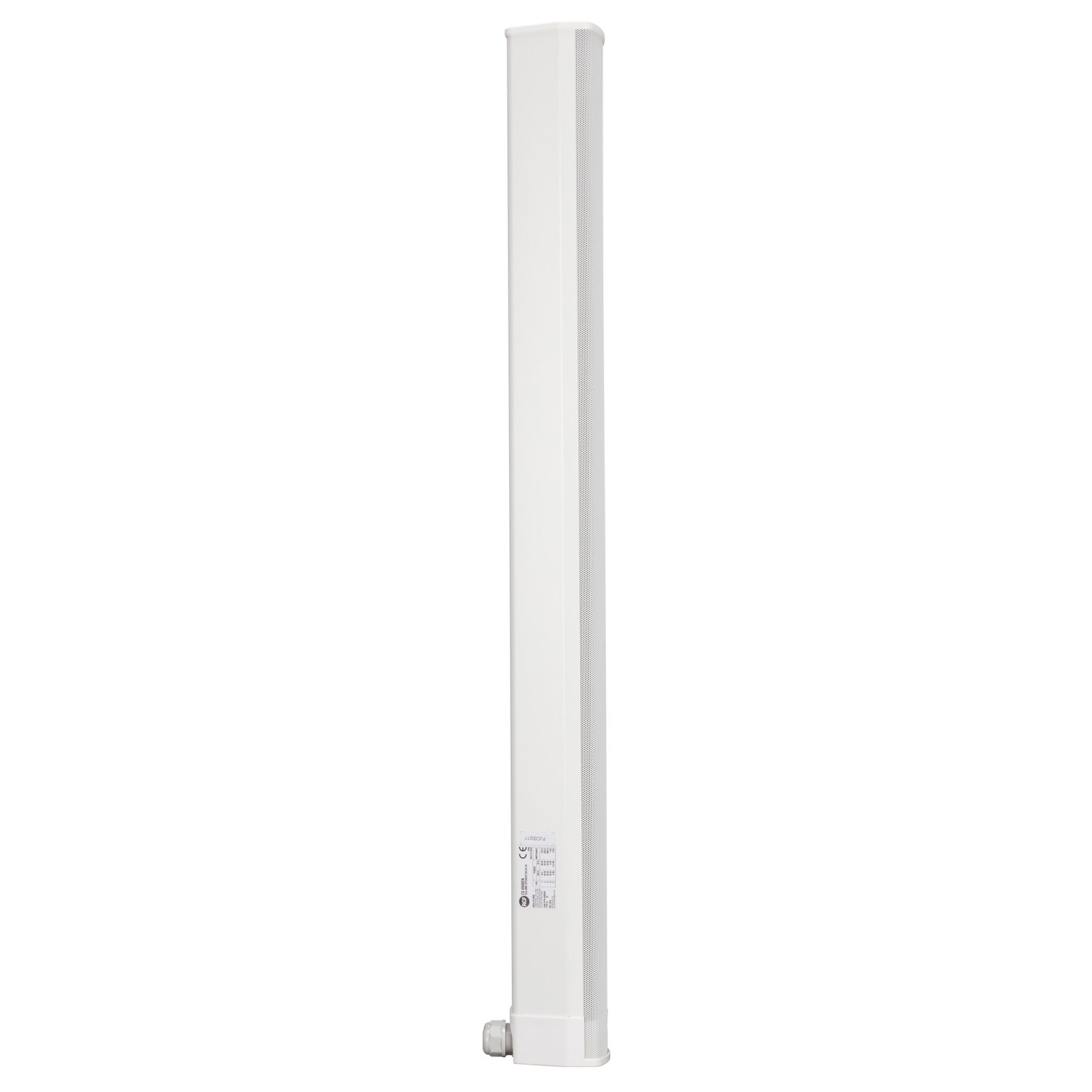

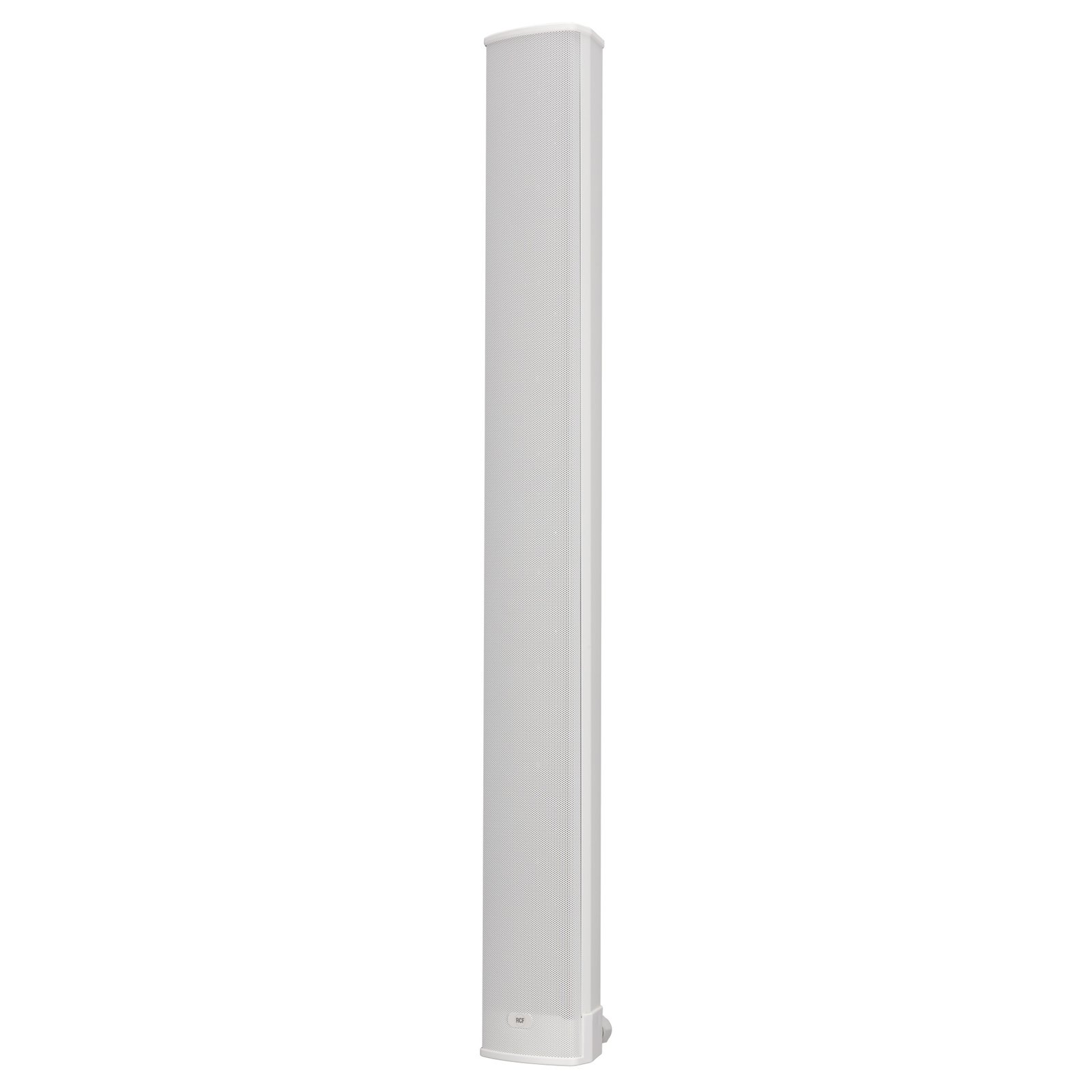

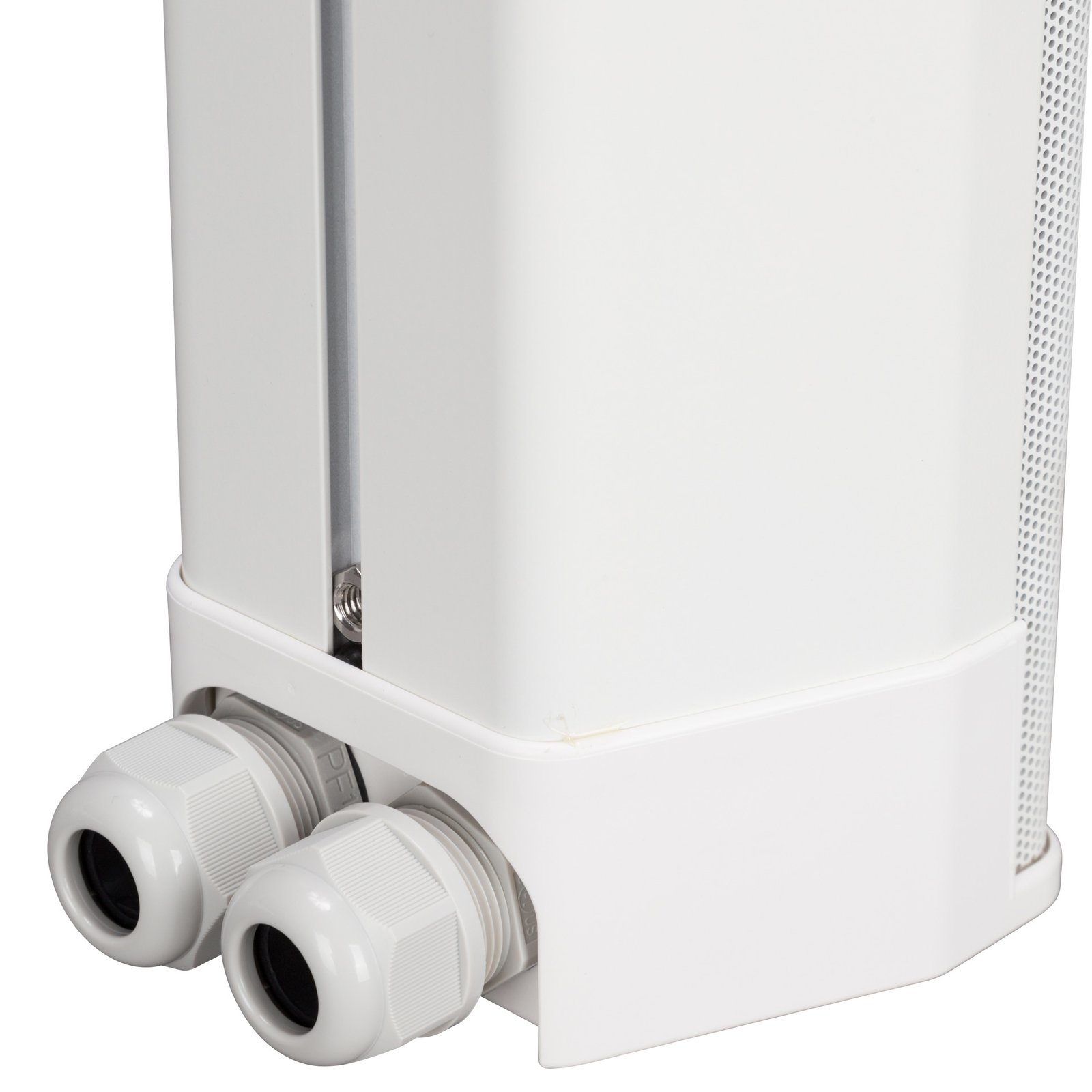

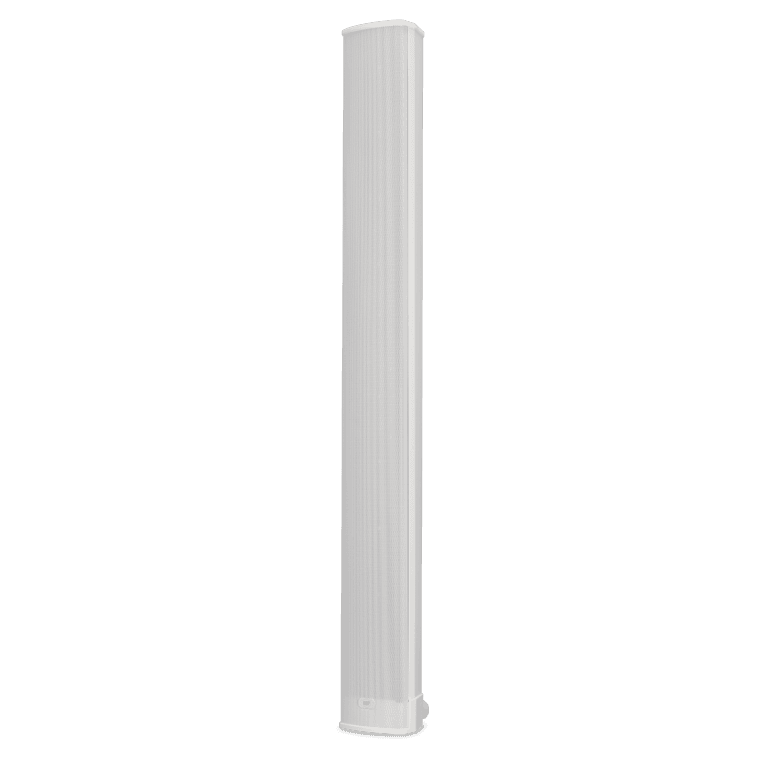

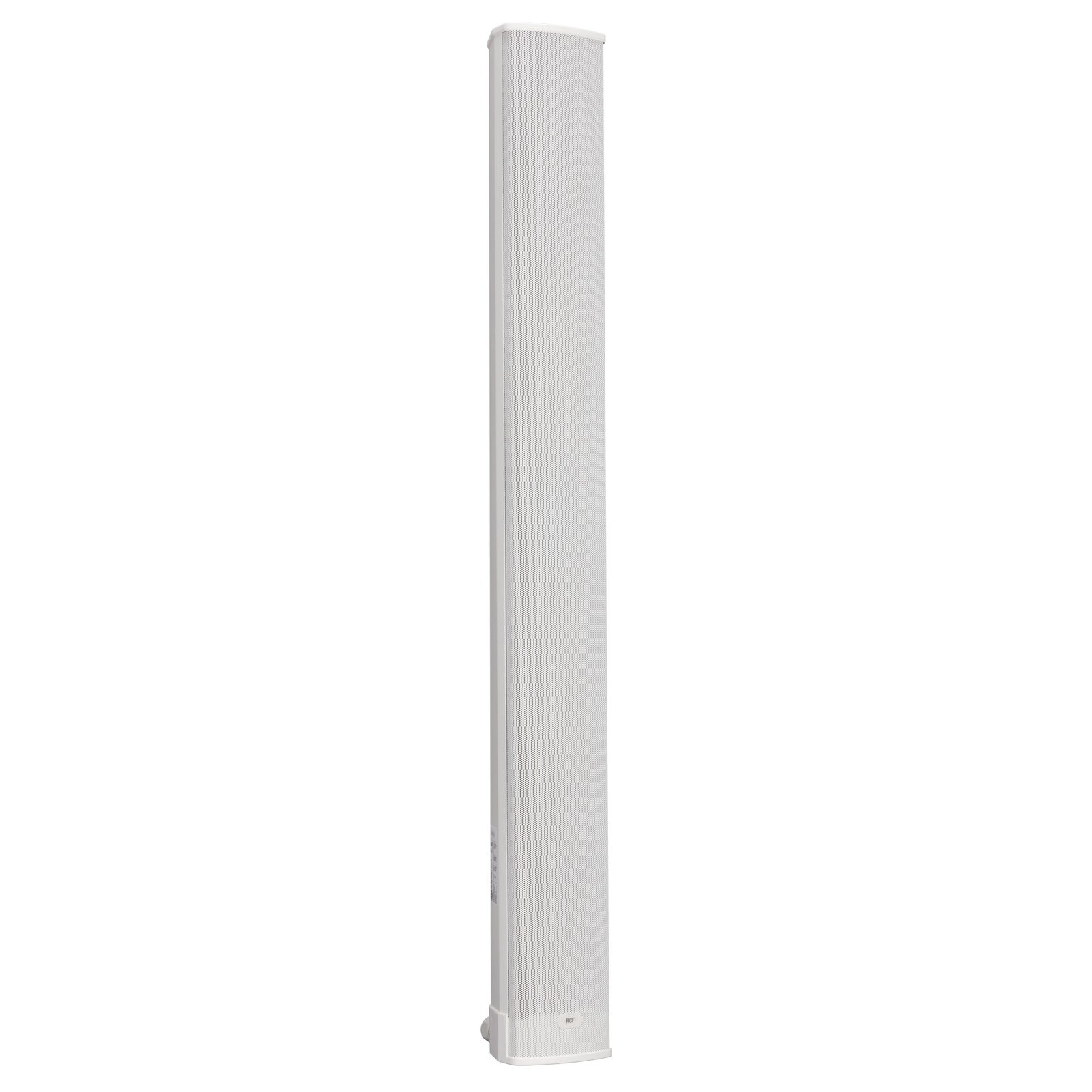

The RCF CS 6940EN is a two-way column loudspeaker combining eight three-inch fullrange transducers with a dome tweeter. Its aluminium construction and protected connection arrangement are designed for voice alarm applications and distributed installation systems.

The specified frequency response is 140 Hz – 20000 Hz. Rated power handling is 40 W. Maximum sound pressure level at one metre is 109 dB. These characteristics define how the component fits into the supported audio arrangement and provide the starting point for selecting the associated equipment and operating settings.

The physical specification lists height 995 mm, width 114 mm, depth 96 mm, weight 7 kg. The enclosure material is Aluminum. The specified finish is White – RAL 9003. The product’s physical format should be considered alongside the installation position, the surrounding equipment and the space required to reach its connection points.

Speaker placement should be planned around the listening area and the type of coverage required. Mounting position, distance from listeners and the surrounding room layout all affect the complete installation. The loudspeaker’s specified connection method and load should be matched to the selected amplification system before the final layout is established.

For a distributed sound installation, consider the speaker position and cable route together. The chosen operating settings should remain consistent with the amplifier and the connected speaker line. Keep the relevant connection points accessible during assembly, and use the model-specific mounting instructions to establish the final orientation and physical attachment arrangement. The final arrangement should follow the documented product configuration and remain matched to the intended system components.

Features of CS 6940EN

• 8 x 3″ fullrange transducers with 0.75″ dome tweeter.
• Power selectable (100 V): 40 W – 20 W – 10 W – 5 W – 2.5 W.
• 95 dB sensitivity.
• Colour White – RAL 9003

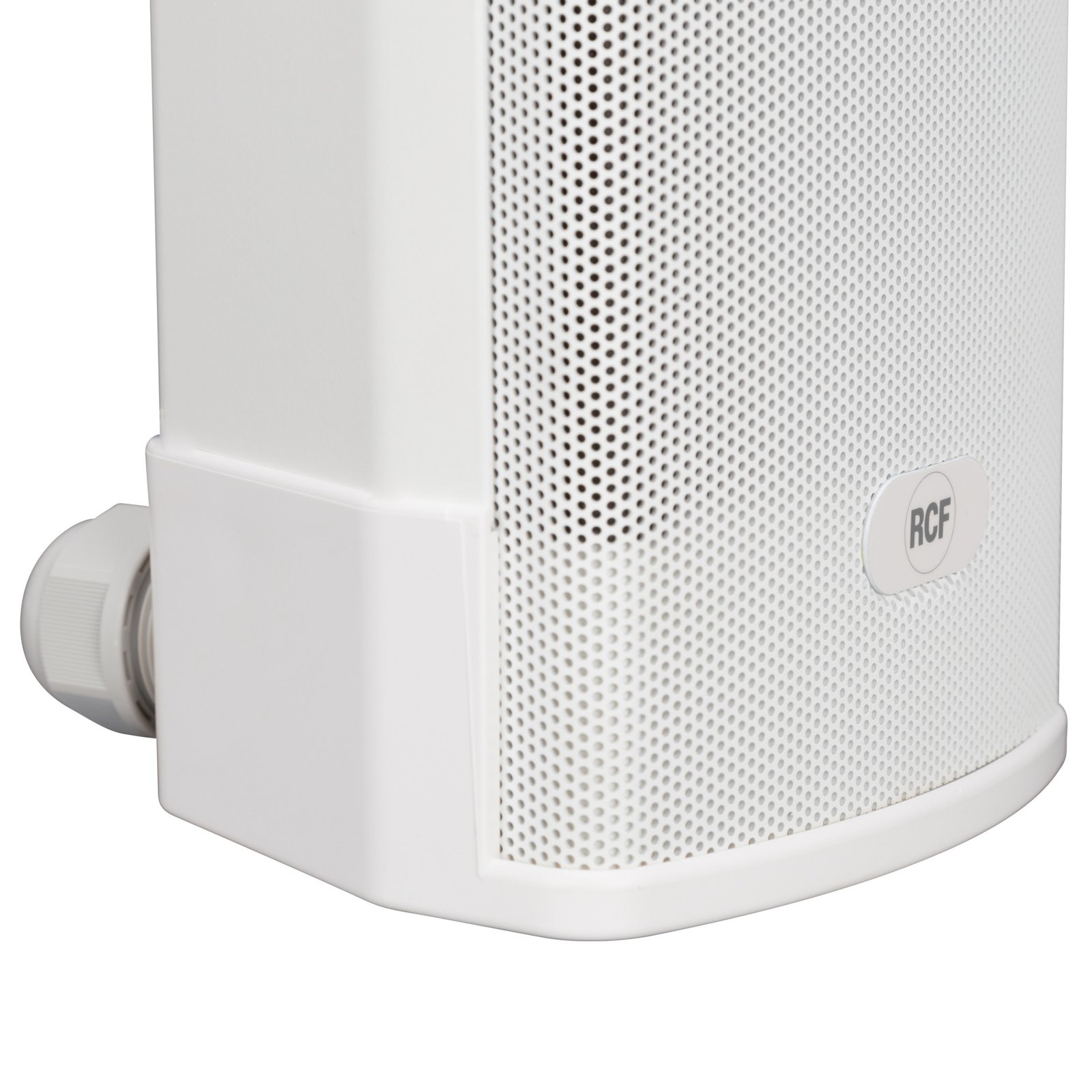

• Aluminium body, grille and bracket.

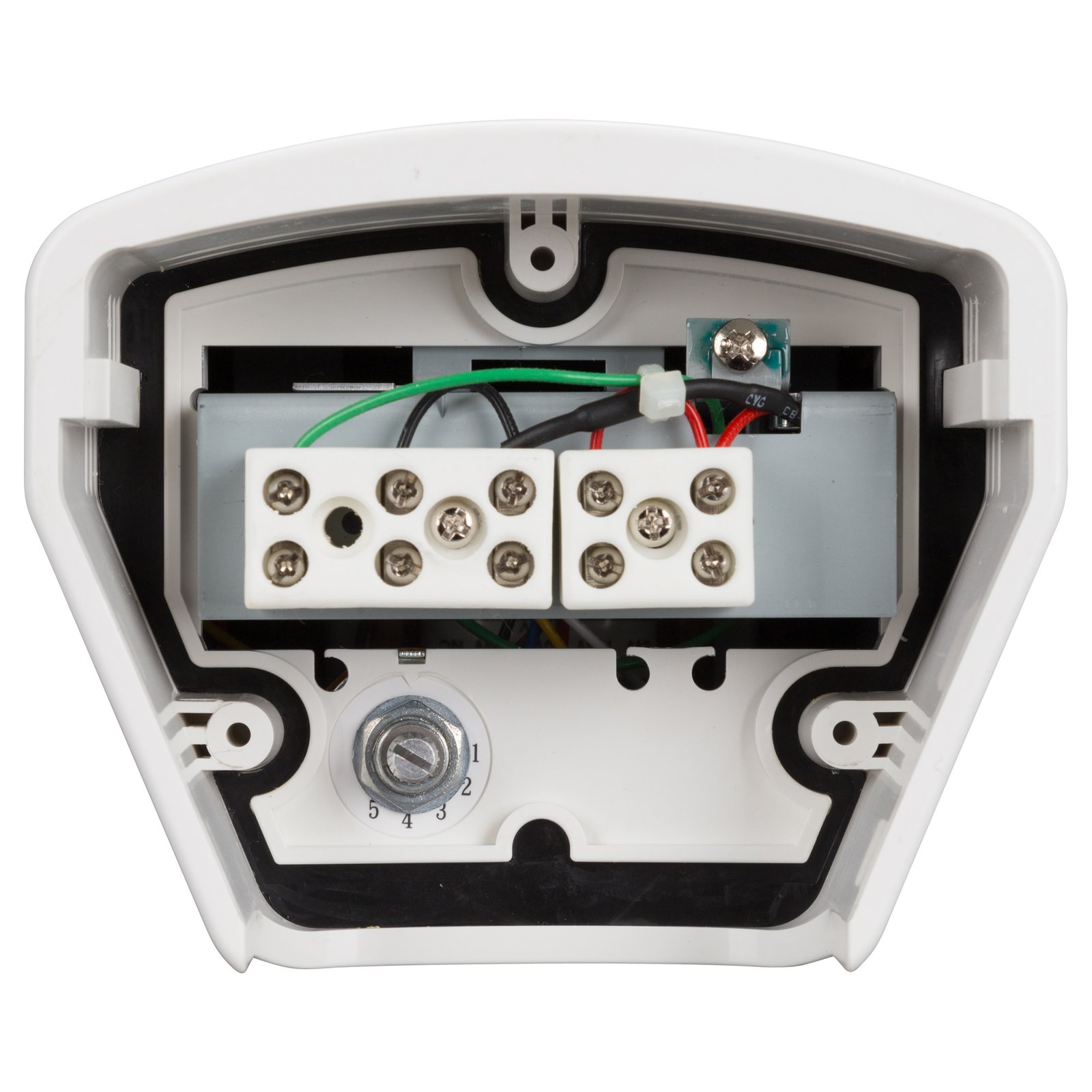

• In/out ceramic terminal block.
• Thermal fuse protection.
• Protection grade IP66.

Specifications of CS 6940EN
