Bose ControlSpace EX-4ML Mic/GPIO Dante Endpoint
The Bose ControlSpace EX-4ML is a 4-channel microphone and GPIO Dante endpoint that extends microphone inputs and general-purpose control connections to ControlSpace EX processors over a single, PoE-powered Ethernet cable.
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
AED 4,353.30 Inc VAT
-
Pick up from the Woodmart Store
To pick up today
Free
-
Delivery Service
Our courier will deliver to the specified address
1-3 Days
Charges as per location
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year/ or per brand policy
-
Free 7 Days returns policy
Payment Methods:
Description
Description of EX-4ML.

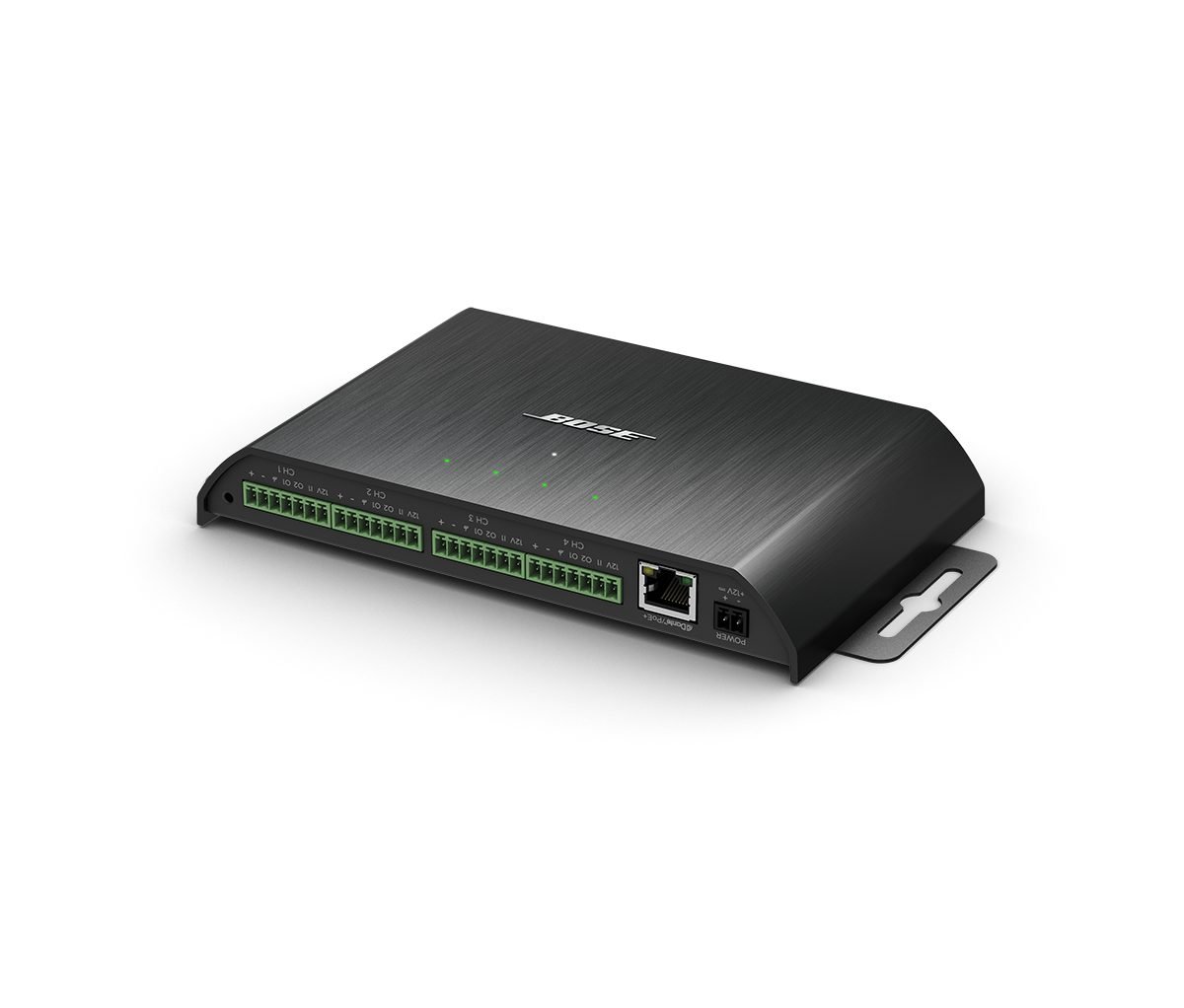

Bose ControlSpace EX-4ML 4-channel mic/GPIO Dante endpoint
The Bose Professional ControlSpace EX-4ML is a Dante audio endpoint designed to extend microphone inputs and general-purpose control connections away from the main ControlSpace EX rack. Rather than running long analog microphone cables back to a central location, the EX-4ML lets installers place microphone connection points closer to where they are actually needed in a room.
The endpoint provides four channels of microphone or line-level input, converted to Dante audio for transport back to the connected ControlSpace processor over standard network cabling. Alongside the audio channels, general-purpose input and output connections allow the EX-4ML to interface with external control hardware such as buttons, LEDs, or contact closures used in a room’s control scheme.
Power and network connectivity are combined over a single Cat-5/6 cable using PoE, in the same one-cable-from-the-table approach used elsewhere in the ControlSpace EX endpoint family. This keeps installation simple and avoids the need for a separate local power supply at each endpoint location.
Like the related EX-UH and EX-8ML endpoints, the EX-4ML is configured through ControlSpace Designer software, with autodiscovery and auto-routing helping integrators bring new endpoints online quickly. Its low-profile aluminium enclosure and rotatable mounting tabs make it suitable for under-table, wall, or equipment-rack installation depending on the project.
Features of EX-4ML
- 4-channel mic/line Dante endpoint with GPIO
- Extends microphone inputs away from the main rack
- General-purpose I/O for external control hardware
- Single Cat-5/6 cable with PoE for power and network
- Configured via ControlSpace Designer software
- Autodiscovery and auto-routing for fast commissioning
- Low-profile aluminium enclosure
- Rotatable mounting tabs for flexible placement
- Compatible with ControlSpace EX-1280C and related processors
- Daisy-chainable power and network connectors
Specifications of EX-4ML
| Device Type | 4-channel mic/GPIO Dante endpoint |
| Audio Channels | 4 mic/line inputs |
| Control I/O | General-purpose input/output |
| Connectivity | Gigabit network port with PoE |
| Digital Conversion | 48 kHz, 24-bit |
| DC Power In | +12 V DC, 650 mA |
| Dimensions (W x L x H) | 196 x 206 x 27 mm |
| Enclosure | Low-profile aluminium |
| Configuration Software | ControlSpace Designer |
| Compatible Processors | EX-1280C, EX-12AEC, EX-440C, EX-1280 |
