Description

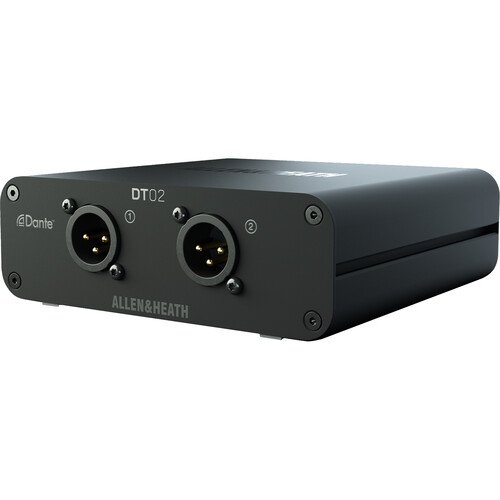

Allen & Heath DT02-X Dante Output Interface
The Allen & Heath DT02-X is a compact and rugged Dante output interface designed to provide high-quality networked audio distribution for professional installations, AV environments, and portable sound systems. Supporting both 48kHz and 96kHz operation, the DT02-X enables seamless integration with Dante-equipped Allen & Heath mixers, AHM audio matrix processors, and third-party Dante systems, making it a versatile solution for modern audio networks.
The unit provides two balanced XLR line outputs with relay protection, delivering reliable audio performance for powered loudspeakers, monitor systems, amplifiers, and other professional audio equipment. Built with support for Dante and AES67 networking standards, the DT02-X ensures broad compatibility across a wide range of networked audio infrastructures while maintaining high-quality signal transmission and low latency.
Designed for installation flexibility, the DT02-X can be powered through Power over Ethernet (PoE) or the included 12V DC power supply. This dual-power capability simplifies deployment in both permanent and temporary audio systems while reducing cable requirements in network-based installations. The secure EtherCon connector provides dependable network connectivity for demanding professional environments.
Constructed within a durable aluminum enclosure, the DT02-X is built to withstand the rigors of daily operation in touring, rental, educational, corporate, and commercial applications. Its compact footprint allows placement near powered speakers, monitors, or equipment racks without consuming excessive space. Optional surface-mount brackets and rackmount kits provide additional installation flexibility. With Dante Domain Manager readiness, AES67 compatibility, and reliable two-channel audio distribution, the DT02-X delivers an efficient and professional solution for extending audio outputs across Dante-enabled networks.
Features of DT02-X
- Compact Dante output interface
- Supports 48kHz and 96kHz operation

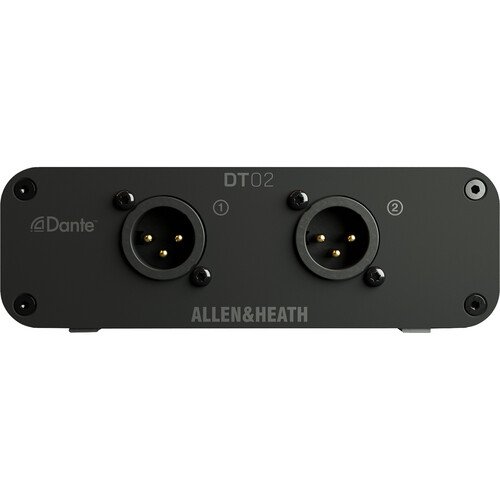

- Two balanced XLR line outputs
- Relay-protected output circuitry
- Dante network audio compatibility
- AES67 interoperable audio transport
- Dante Domain Manager ready
- Power over Ethernet support
- Included 12V DC power supply

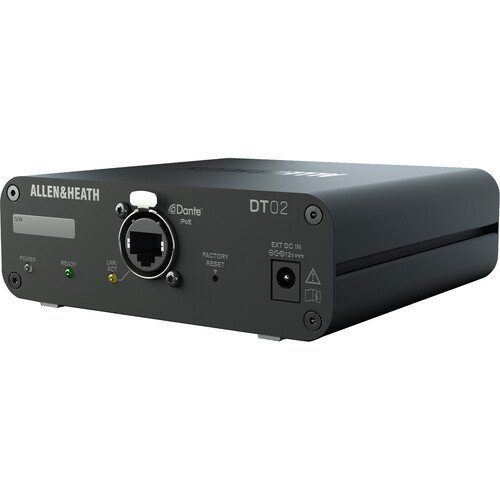

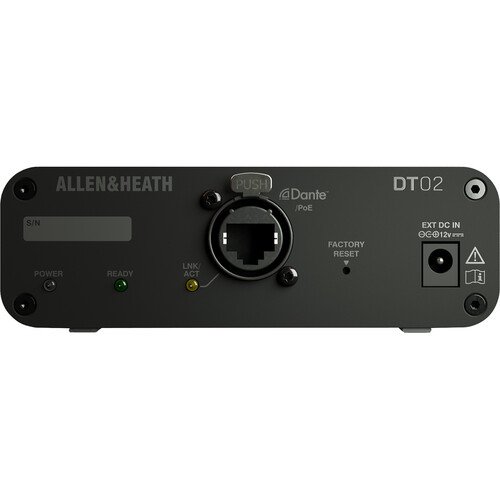

- Secure EtherCon network connector
- Rugged aluminum enclosure
- Suitable for fixed installations
- Ideal for portable AV systems
- Compatible with Allen & Heath Dante systems
- Supports third-party Dante networks
- Optional surface-mount accessories
- Optional rackmount kit available
- Compact space-saving design
Specifications of DT02-X
| Product Type | Dante Output Interface |
| Audio Network Protocol | Dante, AES67 |
| Sample Rates | 48 kHz, 96 kHz |
| Analog Outputs | 2 x Balanced XLR Outputs |
| Output Protection | Relay Protected |
| Output Impedance | < 75 Ohms |
| Nominal Output Level | +4 dBu = 0 dB Meter Reading |
| Maximum Output Level | +22 dBu |
| Network Connector | EtherCon |
| PoE Standard | IEEE 802.3af |
| PoE Power Requirement | 15 W |
| DC Input | 12 VDC, 1.25 A |
| Maximum Power Consumption | 10 W |
| Power Options | PoE or External DC Supply |
| Dante Domain Manager | Supported |
| AES67 Compatibility | Yes |
| Enclosure Material | Aluminum |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions (W × D × H) | 13 x 13.2 x 4.3 cm |
| Weight | 0.5 kg |
| Included Accessories | 12 VDC Power Supply, Rubber Feet |
| Optional Accessories | DT-SMK Surface Mount Kit, DT-RK19 Rackmount Kit |
